Top R10 Heating Zones Lead Free Hot Air Reflow Ovens

Shenzhen Jaguar Automation Equipment Co., Ltd.
  • Condition：New
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Installation：Vertical
  • Number of Heating Zones：up 10,Bottom 10

Base Info

  • Model NO.：JAGUAR R10
  • Number of Cooling Zones：up 3 Bottom 3
  • Length of Heating Zones：3900mm
  • Heating Mode：Hot Air
  • Cooling Mode：Air Oven:Forced Air
  • Max. Width of PCB：450mm
  • Transmission Type：Mesh and Chain
  • Conveyor Speed：0-2000mm,Min
  • Components High：Top and Bottom 25mm
  • Power Supply：5 Line 3 Phase 380V 50,60Hz
  • Transport Package：Wooden Box
  • Specification：5710*1350*1490mm
  • Trademark：JAGURA
  • Origin：China
  • HS Code：8501101000
  • Production Capacity：100 Sets,Month

Description

JAGUAR R10



Heating SystemNumber of heating zonesUP 10/BOTTOM 10Number of cooling zonesUp 3 bottom 3Length of heating zones3900mmHeating modehot airCooling ModeAir Oven:Forced airExhaust Volume10m³/min * 2 exhausts




Conveyor SystemMax. Width of PCB450mmMesh belt width500mmTransmission DirectionL→R(or R→L)Transmission Net Height900±20mmTransmission typeMesh and chainRange of rail width0-450mmConveyor speed0-2000mm/minAuto/manual LubricationstandardFixed rail sideFront rail fixed(option: rear rail fixed)Components highTop and bottom 25mm







Control systemPower supply5 line 3 phase 380V 50/60HzTotal power50kwStarting power48kwNormal power consumption10KWWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPID close loop control & SSR drivingTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temp. (extra-high/extra-low temp.)Board dropped alarmTower light:Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)5710×1350×1490mmWeight2150KGColorComputer gray

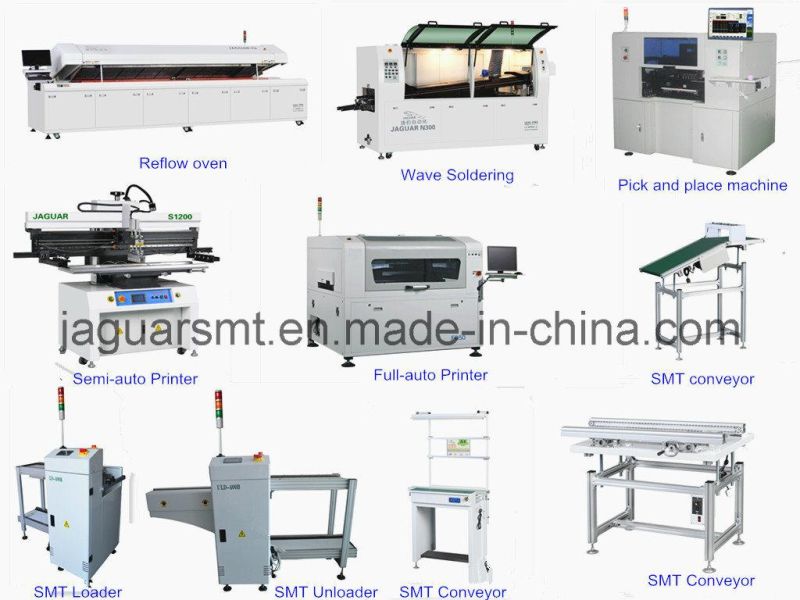

Our main product:
1. wave soldering,reflow ovens;
2.pick and place machine;
3.solder paste printer;
4.AOI machine;
5.SMT conveyor, PCB loader and unloader, DIP line ect.
