• Model NO.：WL-580
• Certification：ISO, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Wire：H03vvh2-F H05vvh2-F
• Crimping Force：3t
• Yield：99%
• Air Pressure：0.5-0.8MPa
• Power：1.6kw
• Weight：433kg
• Dimension：1170mm*770mm*1550mm
• Capacity：2, 300-2, 600PCS,H
• Model：Wl-580
• Inner Wire Stripping Diameter：4-7mm
• Transport Package：Wooden Carton
• Specification：1170*770*1550mm
• Trademark：CROWN
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month
• Package size per unit product：142.00cm * 98.00cm * 152.00cm
• Gross weight per unit product：466.000kg

Basic Info.

Model NO. WL-580 Certification ISO, CE Warranty 12 Months Automatic Grade Automatic Wire H03vvh2-F H05vvh2-F Crimping Force 3t Yield 99% Air Pressure 0.5-0.8MPa Power 1.6kw Weight 433kg Dimension 1170mm*770mm*1550mm Capacity 2, 300-2, 600PCS/H Model Wl-580 Inner Wire Stripping Diameter 4-7mm Transport Package Wooden Carton Specification 1170*770*1550mm Trademark CROWN Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 142.00cm * 98.00cm * 152.00cm Gross weight per unit product 466.000kg

Product Description

Cable Crimping Machine Automated Terminal Riveting Crimping Machine

Features:

Main function: cable outer jacket stripping + inner core wires stripping + wire end cutting + automatic vibrating plate feeding + rivet pressing
Suitable for wire cable : SPT-1, SPT-2, NISPT-1, NISPT-2, VFF, HVFF, VCTFK, H03VVH2-F, H05VVH2-F, RVV
The automatic plug pins continuous riveting machine can complete cable outer jacket stripping, core wires stripping, wire end cutting, automatic vibrating plate feeding, and plug pins riveting at one time.

Specifications:

Model	WL-580
Capacity	2,300-2,600PCS/H
Riveting force	3T
Yield	≥99.8%
Inner wire stripping diameter	4-7mm
Voltage	AC220V/50HZ
Operating air pressure	0.5-0.7Mpa
Power	≤1.6kw/h
Machine weight	276KG
Machine size	900mm*560mm*1470mm

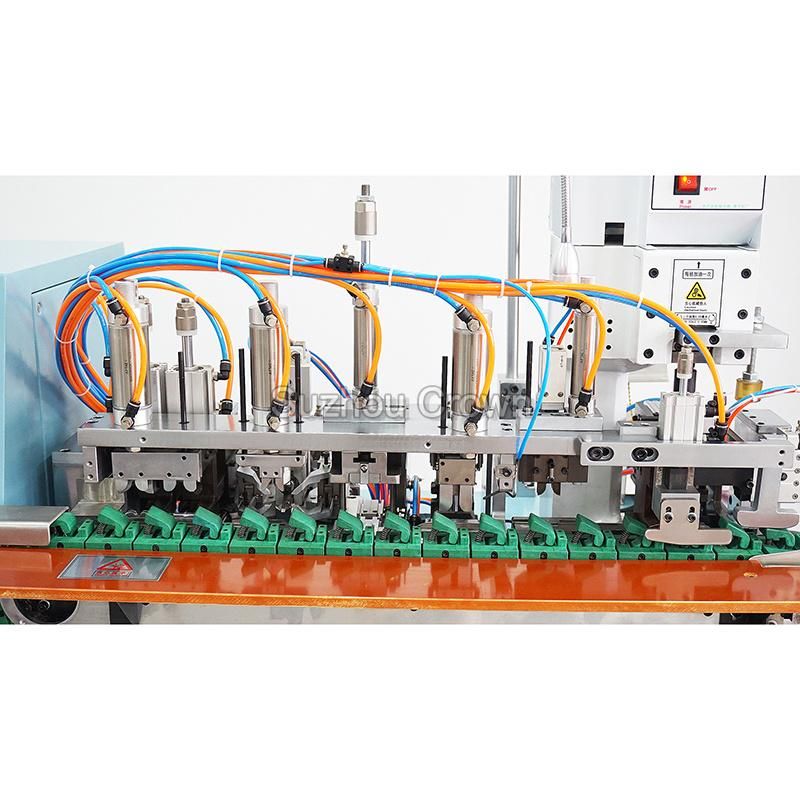

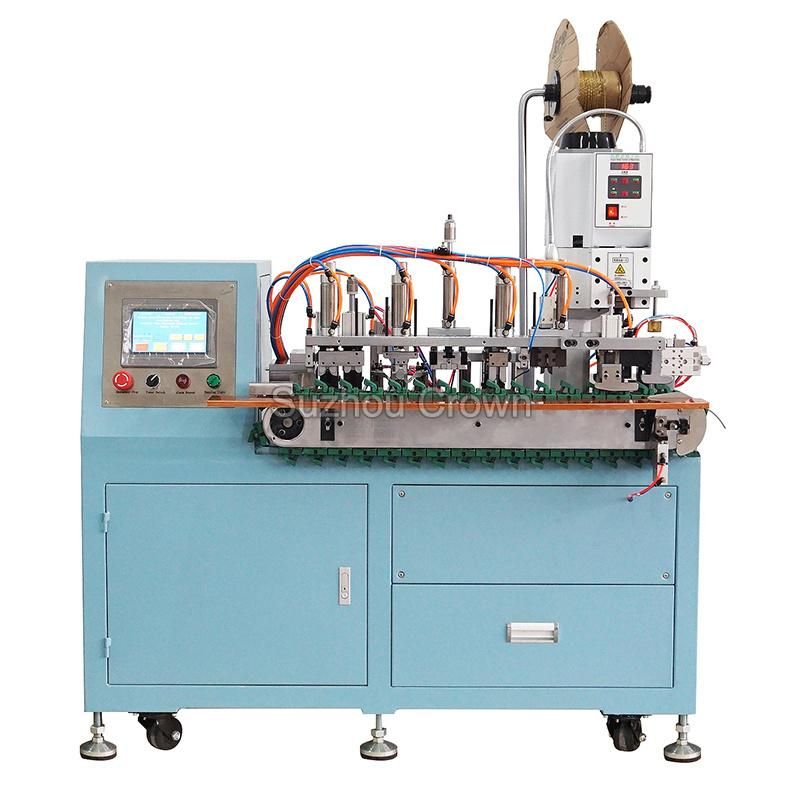

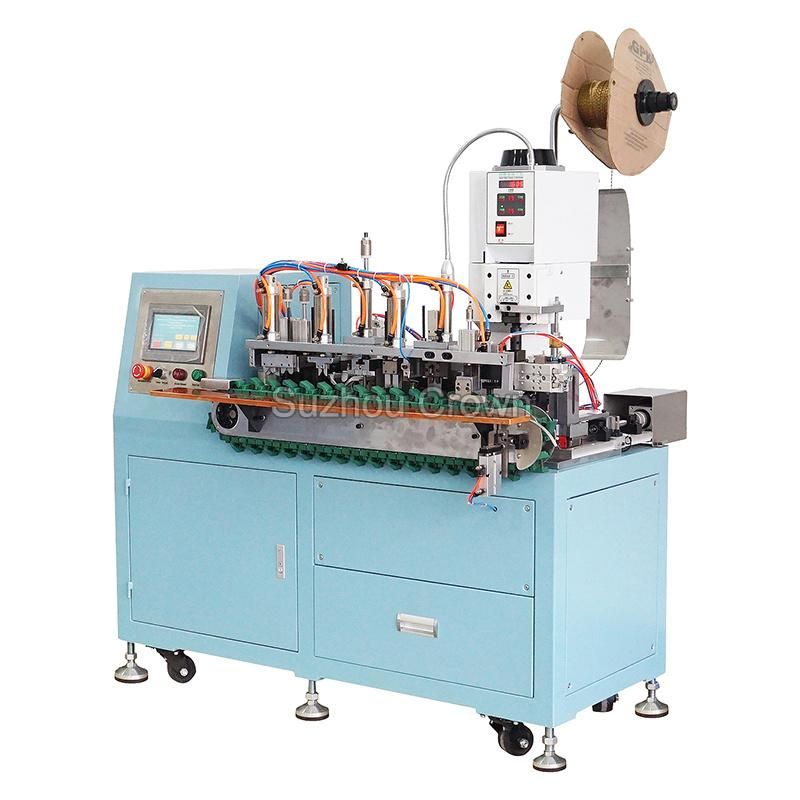

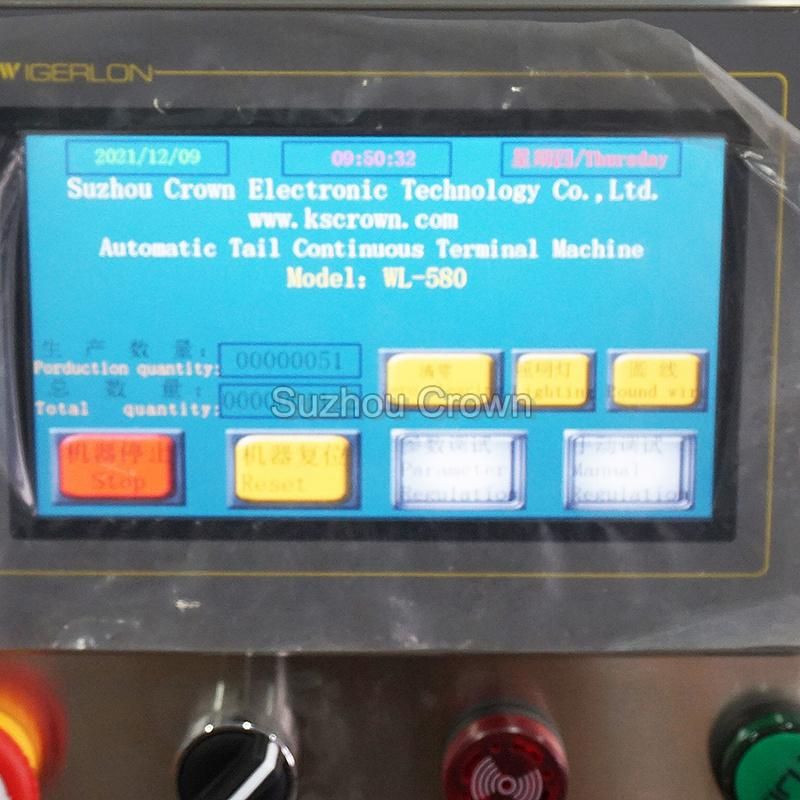

 Product Show:

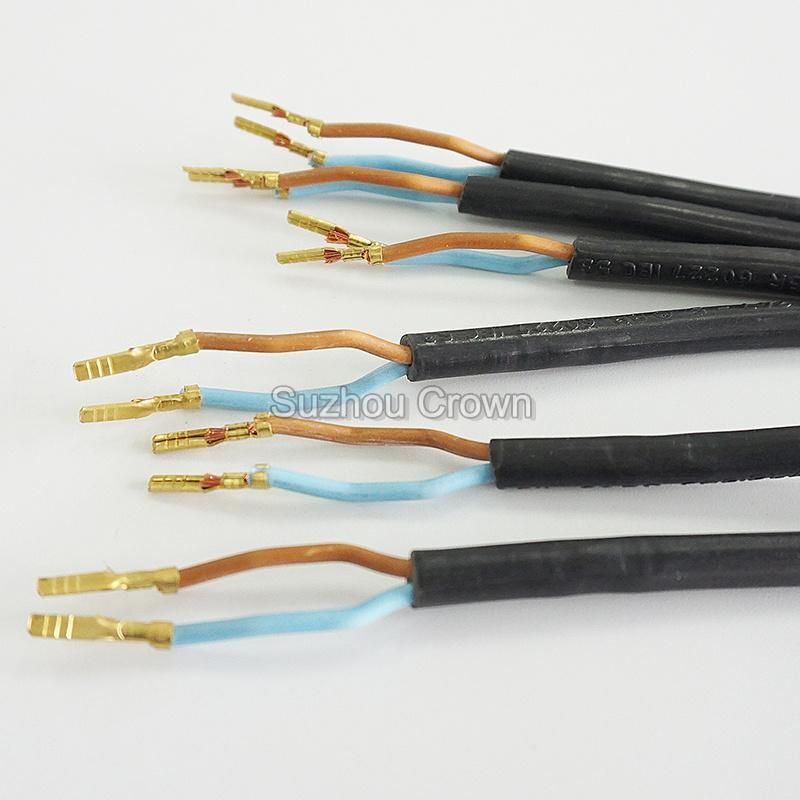

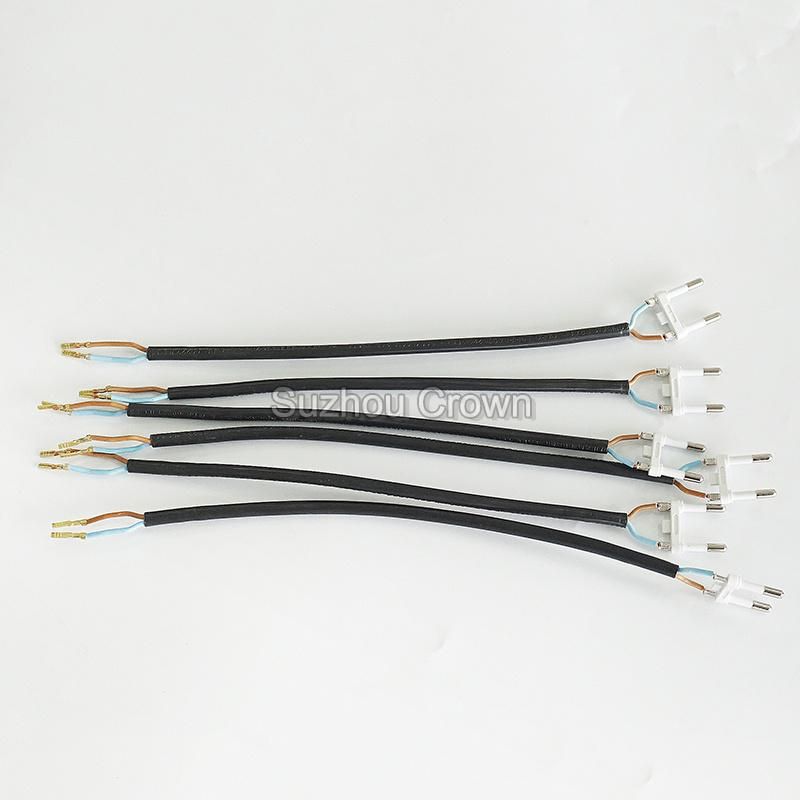

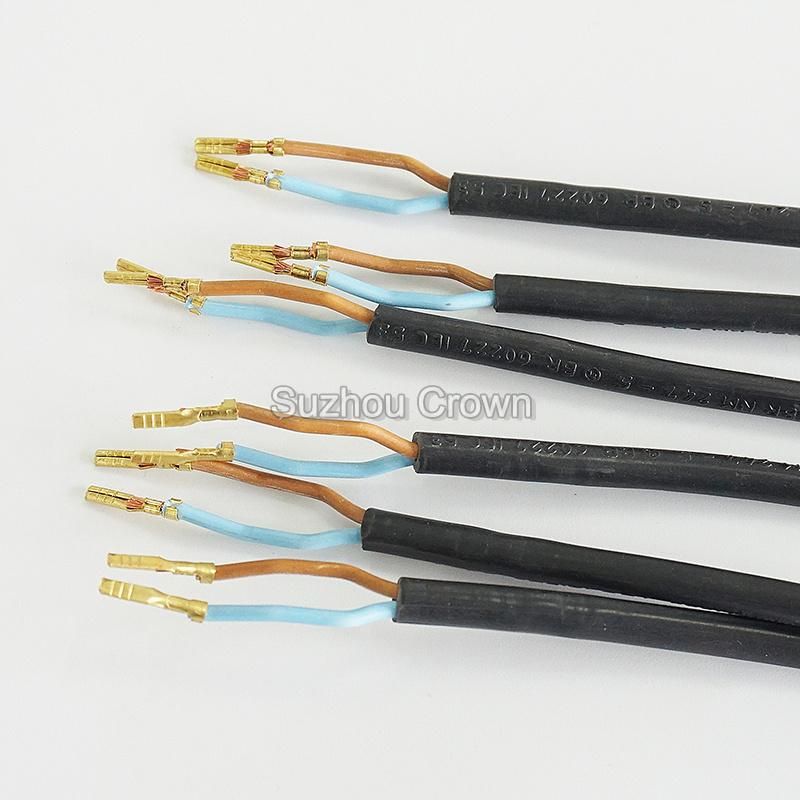

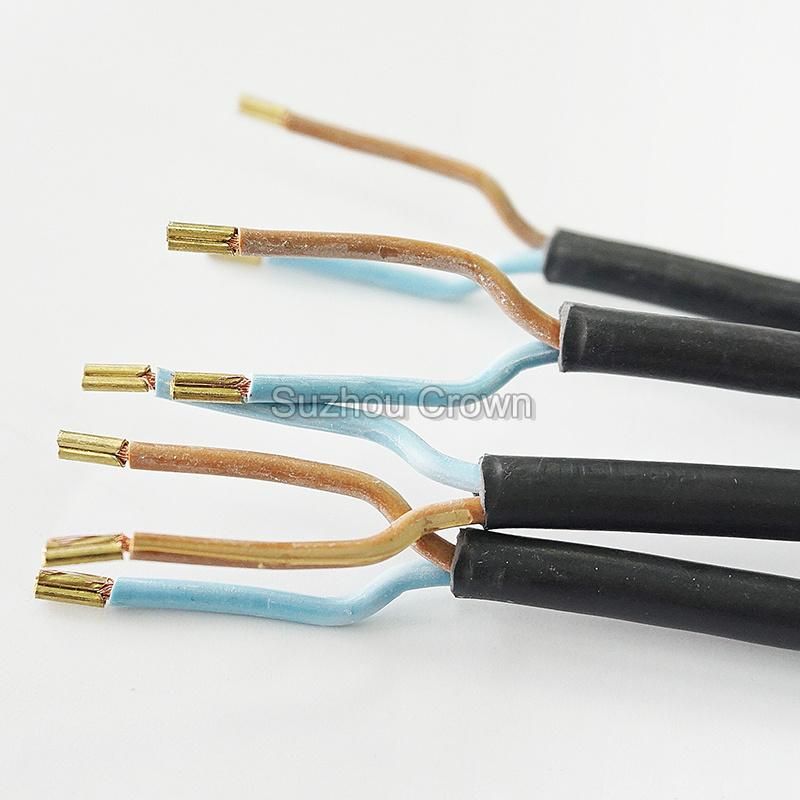

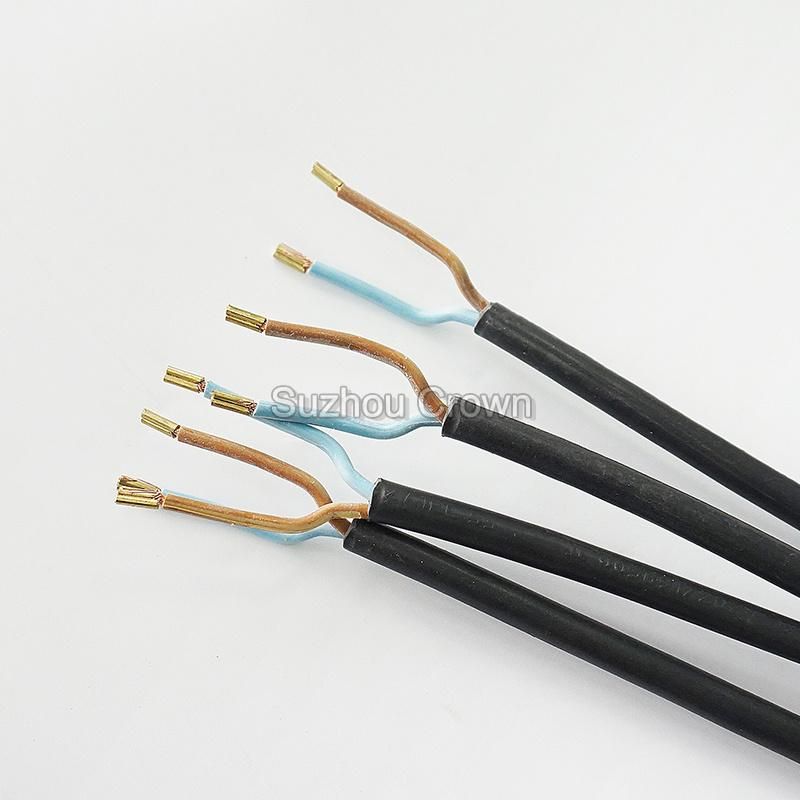

Application Terminal:

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like

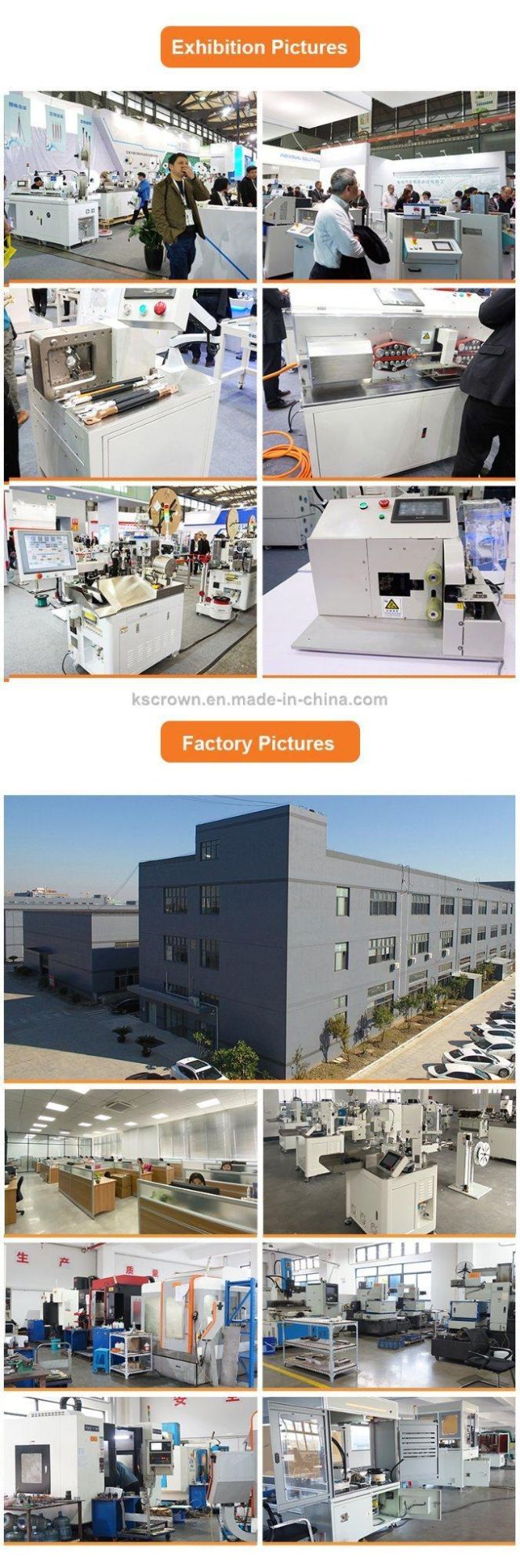

Company Information

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
