Marine Cabling Insulated Laying up Machine with Taping Machine

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Mould Life：>1,000,000 Shots
  • Type：To Back Stranding Machine
  • Material：Metal
  • Colour：as Required
  • Wire Diameter Specification：8-25mm
  • Cage Speed：28 Rpm
  • Stranding Pitch：420-3500 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pn1600
  • Central Pay-off Bobbin：Pn1600
  • Take-up Bobbin：Pn3150
  • Central Height：1100 mm
  • Transport Package：Seaworthy Packing
  • Specification：1600 , 1+1+3
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Model (Laying-up Machine)CLY-630/3+3CLY-800/3+3CLY -1000/3+1+1CLY -1250/3+1+1CLY -1600/3+1+1Diameter of single wireφ5-10 mmφ5-12 mmφ8-20mmφ8-25 mmφ10-35 mmMaximum stranded conductor ODφ30 mmφ40 mmφ63 mmφ70 mmφ80 mmStranding Pitch50-800 mm95-1500 mm200-2000 mm420-3500 mm550-5176 mmCapstanCapstan Wheel Diameter1000 mm1200 mm1800 mm2000 mm2500 mmMaximum Haul-off Force10 T12 T15 T20 T25 TMotor Power18.5 KW22 KW30 KW37 KW55 KWBobbin Size630 mm800 mm1000 mm1250 mm1600 mmTake-up Bobbin1600 mm1800 mm2000 mm2500 mm3150 mmMaximum Haul-off Linear Speed60 m/min60 m/min34 m/min28 m/min21 m/minCentral Height1000 mm1000 mm1000 mm1000 mm1000 mm
3.Photo

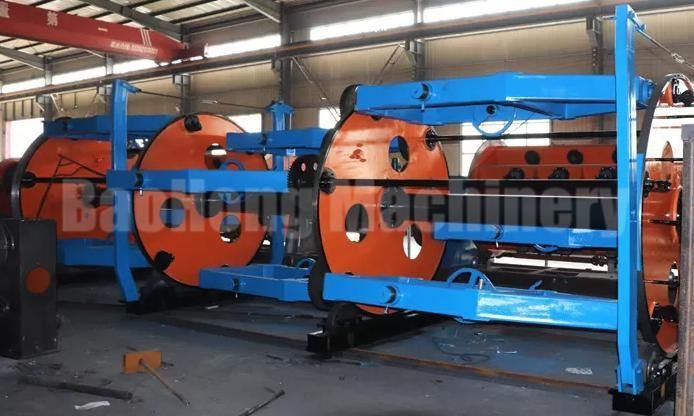

Marine Cabling Insulated Laying up Machine with Taping Machine

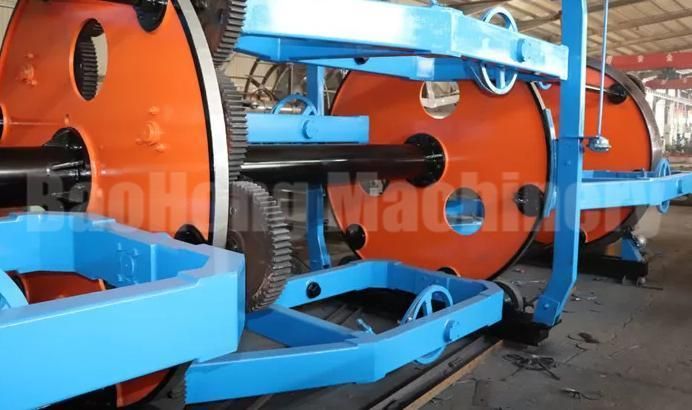

Marine Cabling Insulated Laying up Machine with Taping Machine

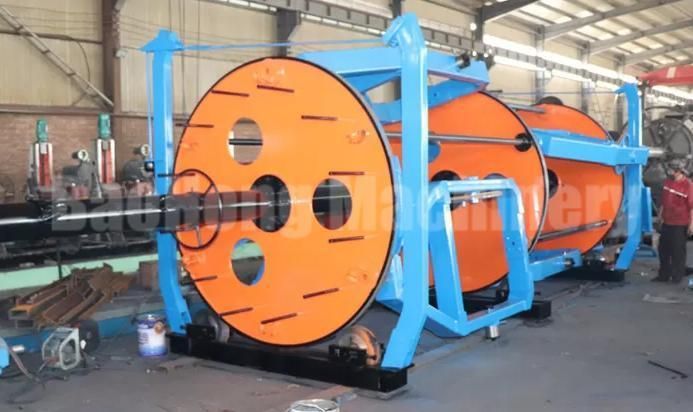

Marine Cabling Insulated Laying up Machine with Taping Machine

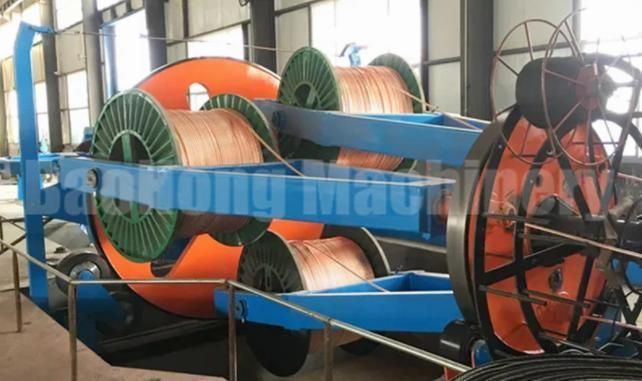

Marine Cabling Insulated Laying up Machine with Taping Machine

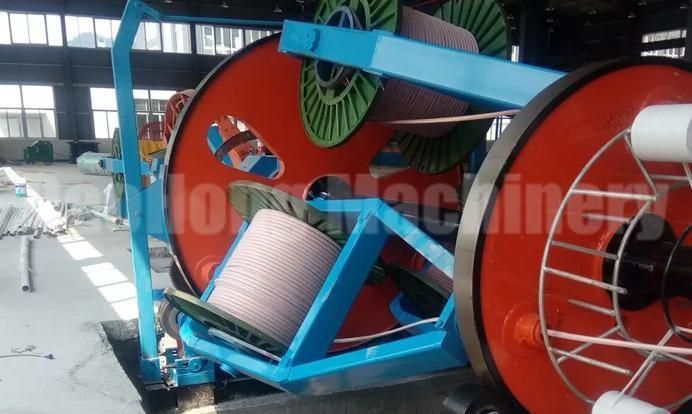

Marine Cabling Insulated Laying up Machine with Taping Machine
