• Model NO.：XJ-300
• Type：High-speed Stranding Machine
• Transport Package：Standard Shipping Packing
• Specification：XJ300
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：20 Set,Month

Basic Info.

Model NO. XJ-300 Type High-speed Stranding Machine Transport Package Standard Shipping Packing Specification XJ300 Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 20 Set/Month

Product Description

Application field:

Used for HDMI,DP,USB,CAT-7 and so on high frequency wire,data wire,electric wire single/multi group twisting.



Machine technical parameter:
 1.Wire specification:AWG40-AWG302.Twisted OD:Φ0.3-1.0mm3.Pitch rang:Electric pitch set on touch screen only.4.Host power:main engine;2HP/Pay-off1/2HP5.Pay-off tension:Slider pendulum rod+Hammer tension type active pay off,online tension test displany with dividing ruler.Break line protection.6.Wrapping tension:Constant tension electromagnetic wheel/Auto tension tracker,wrapping tension keep constant from start to end,needn't any adjustment.7.Take-up tension:Electromagnetic tension,auto-tracking,take-up tension keep constrant from start to end,needn't any adjustment.8.Traversing:Axis-row type,servo control.No damage during the traversing process,traversing space and distance can be set freely according to the wire specification.9.Take-up type;Three-head active pay off, frequency control, control linkage with main engine,break line protection.







Machine parts:

No.	Parts name&Specs.	Qty
1	Ø100-300mm*3 heads active pay-off stand	1set
2	Ø300mm host twisting machine	1set
3	Electrical control device(touch screen)	1set
4	Aluminum foil/mylar taping stand	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan) or Pro-face(international brand)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us
Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.


Our products

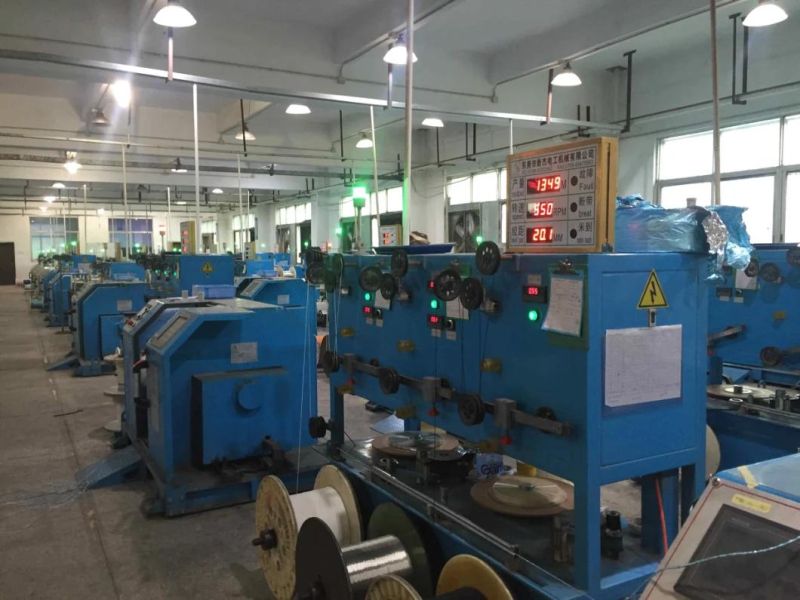

Products in client site
