60 Electronic Wire Making Machine/Cable Extruder/Best Price Extrusion Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Transport Package：Standard Shipping Packing
Base Info
- Model NO.：XJ-60
- Specification：XJ60
- Trademark：Newtopp
- Origin：China
- HS Code：8477209000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. XJ-60 Specification XJ60 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 100 Sets/YearProduct Description
Application field:Used for electronic wire conductor single layer/single layer+stripping insulation extrusion
Machine technical feature
1.Concentricity: 93-97% OD tolerance: Solid +/-0.005mm
2.Wire specification: AWG30-AWG24 (0.1mm-1mm)
3.Body temperature will be controlled within ±1ºC,working speed:400-600m/min (depends on wire dia)
4.Extrusion material: HDPE,Foam-PE,PP,PU,PVC, SR-PVC, etc.
5.Highest output:35KG/H Highest wire speed:400M/min
Machine parts
| No. | Parts name&Specs. | Qty |
| 1 | ø500-800mm single-head active pay off | 1set |
| 2 | Fully automatic high frequency copper wire preheater | 1set |
| 3 | Straightening tool box | 1set |
| 4 | ø60mm main extruder | 1set |
| 5 | Electrical control cabinet | 1set |
| 6 | U7 domestic extrusion crosshead | 1set |
| 7 | 1.8M movable cooling water tank | 1set |
| 8 | Laser diameter tester (Eectrl) | 1set |
| 9 | 9M single layer cooling water tank | 1set |
| 10 | 9M high precision horizontal accumulator | 1set |
| 11 | High frequency spark tester | 1set |
| 12 | ø318 dual capstan + ø500 double-bobbin take-up machine | 1set |
| 13 | Laser OD tester/concave-convex detector | 1set |
| 14 | Taiwan Tontek high frequence spark tester | 1set |
Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install and how to use the machine
* Customized design support. * Engineers available to service machinery overseas.
* View our Factory.
About us
Company introduction
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

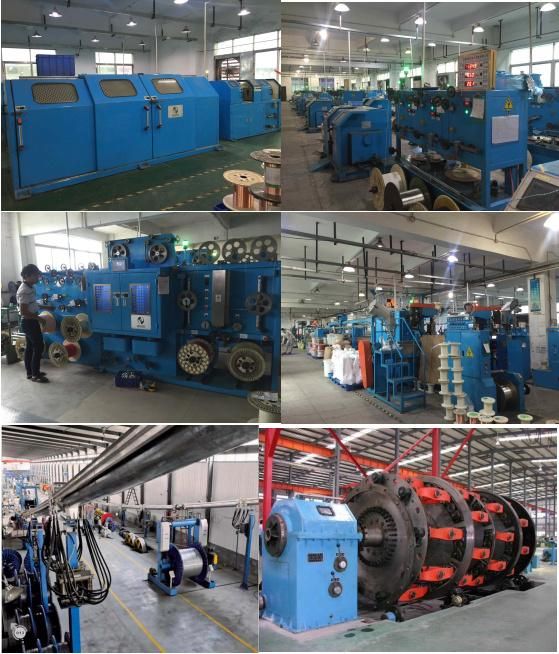

Our products

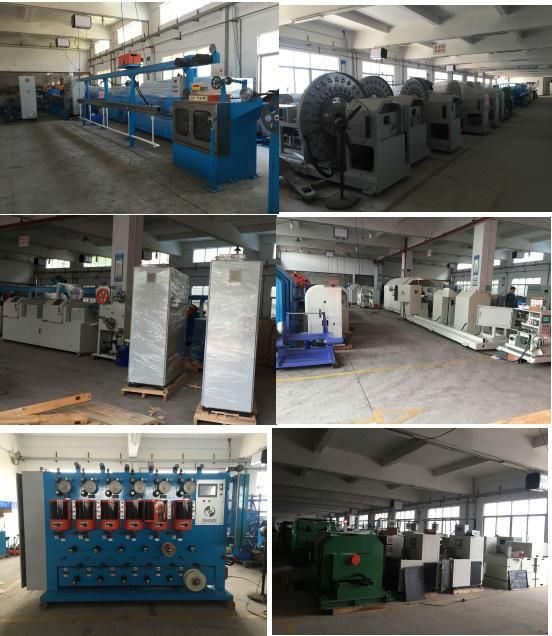

Products in client site
Certification and Patent
Contact us
Contact person: David hou
DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province.
