Micro-Fine FEP/PFA Cable Extruding Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Machine Name：Micro-Fine FEP,PFA Cable Extruding Machine
Base Info
- Model NO.：XJ-020,025,030,040
- Extrusion Material：ETFE,F40,FEP,F46,Fpa
- Screw L/D：28:1
- Line Speed：Max.180m,Min
- Motor：Siemens
- Bearing：NSK
- Inverter：Inovance or Yaskawa
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, Guangdong Province, China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
U-type single-layer water troughAccumulate length 0-100m 0-100m 0-100m 0-100m Capstan power 1kw Servo motor 2kw Servo motor 2kw Servo motor 2kw Servo motor Max speed 150m/min 150m/min 180m/min 180m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up power 3HP 3HP 4HP 3HP Take-up bobbin Φ100-200mm Φ200-300mm Φ200-300mm Φ300-400mm Size( mm) 8000*1200*2100 8000*1400*2100 9000*1400*2100 12000*1800*2100 Total Weight 3.0 T 3.5T 4T 5.5T
4.Cable extrusion line components:
1) Pay-off machine
2) High frequency Preheater
3) Straightener
4) Main extruder
5) Vacuum and adjust control device
6) Electric control cabinet
7) Movable warm water trough
8) Fixed cooling water trough
9) Horizontal type wire-accumulator
10) Double-wheels capstan
11) High speed printing machine
11) High frequency spark tester
12) High precision Meter counter
13) Laser diameter tester
14) Concave and convex tester
15) Take-up machine

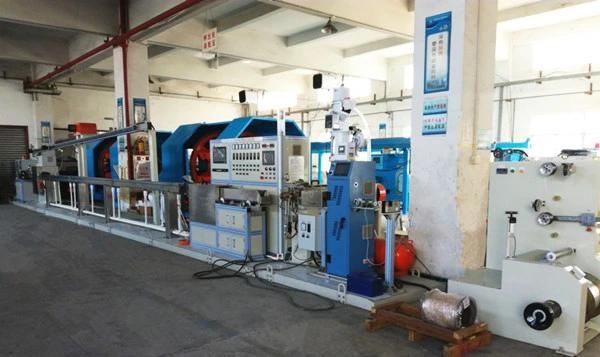

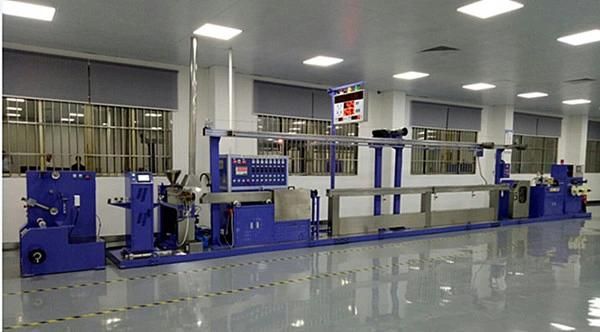

5. Machine pictures:
6. About US:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited , and we also have passed ISO9001:2008 since 2010.
7.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
2) How can we get to your factory to see the machines works?
Address: No286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China
We are near to Shenzhen Baoan International airport within 40 mins;
We are close to Guangzhou Baiyun Airport for 1.5-2 hours;
High speed rail from Guangzhou south station to Humen station.
