• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Heating Zone：up 8 Bottom 8
• Heating Mode：Hot Air
• Total Heating Length：3121mm
• Cooling Zone：up 2 Bottom 2
• Conveyor：Mesh + Chain
• Max PCB Width on Chain：400mm
• PCB Clearance：up 25mm Bottom 25mm
• Machine Weight：1950kgs
• Transport Package：Standard Export Package with Vacuum Inner Package
• Specification：5300*1350*1490mm
• Trademark：JAGUAR
• Origin：China
• Production Capacity：100sets,Month
• Package size per unit product：550.00cm * 155.00cm * 169.00cm
• Gross weight per unit product：1950.000kg

Basic Info.

Warranty 12 Months Automatic Grade Automatic Installation Vertical Heating Zone up 8 Bottom 8 Heating Mode Hot Air Total Heating Length 3121mm Cooling Zone up 2 Bottom 2 Conveyor Mesh + Chain Max PCB Width on Chain 400mm PCB Clearance up 25mm Bottom 25mm Machine Weight 1950kgs Transport Package Standard Export Package with Vacuum Inner Package Specification 5300*1350*1490mm Trademark JAGUAR Origin China Production Capacity 100sets/Month

Packaging & Delivery

Package size per unit product 550.00cm * 155.00cm * 169.00cm Gross weight per unit product 1950.000kg

Product Description

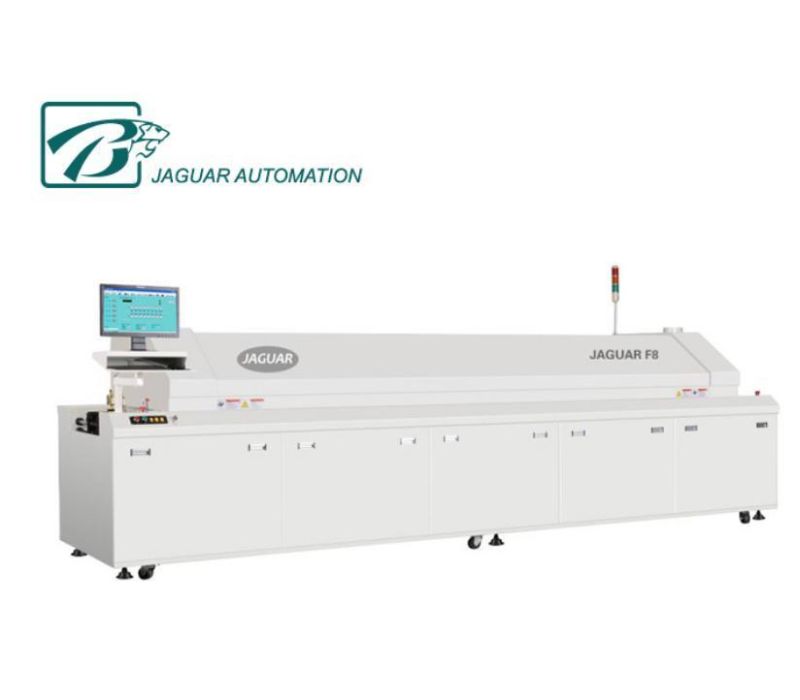

JAGUAR 8 Zones Lead Free Hot Air Reflow Oven F8

Up 8 and Bottom 8 full convection hot air heating zone, heating length: 3121mm, 2 forced air cooling zone, machine dimension: 5300*1320*1490mm
Heating elements are plug-in style, modular design, can save maintenance time.
Mesh+Chain conveyor, mesh width: 500mm, max PCB width on chain: 400mm

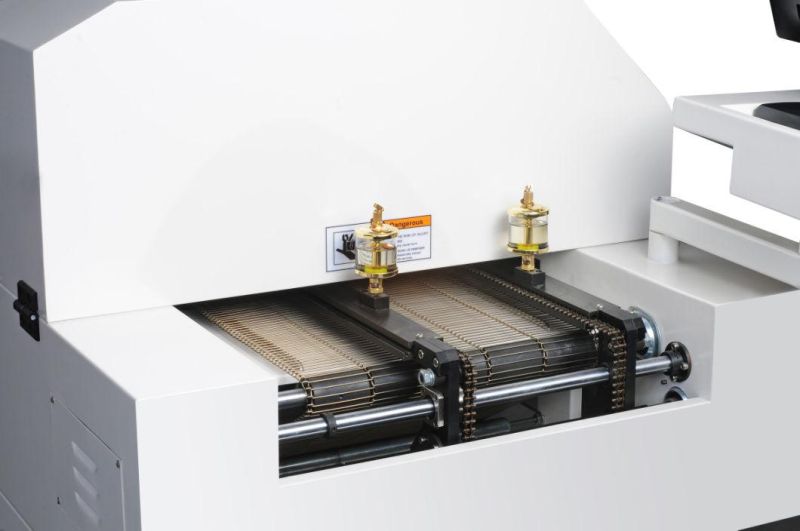

F8 with Auto Lubrication
F8 installs input and output sensors, intelligent PCB drop alarm
With good flux management
Electric power hood open with secondary support, double insurance is safer
Machine Siemens PLC+IPC control,  Win 7 interface, user friend.

Machine parameters

Machine dimension	5300 x 1350x 1490mm
Color	Ivory
Net weight	Approx. 2250kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	48KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 25mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes

7.Machine configuration

Heating zone	Up 8, Bottom 8
Cooling zone	Up 8, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications

Packing and shipping:

What we can do for you?
1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT

Please contact me if you need any machine!
Best Regards,
Nona Xiao
JAGUAR AUTOMATION
Add.:14th Building,Furong Industrial Zone,Xinqiao Street, Bao'an District, Shenzhen,China
