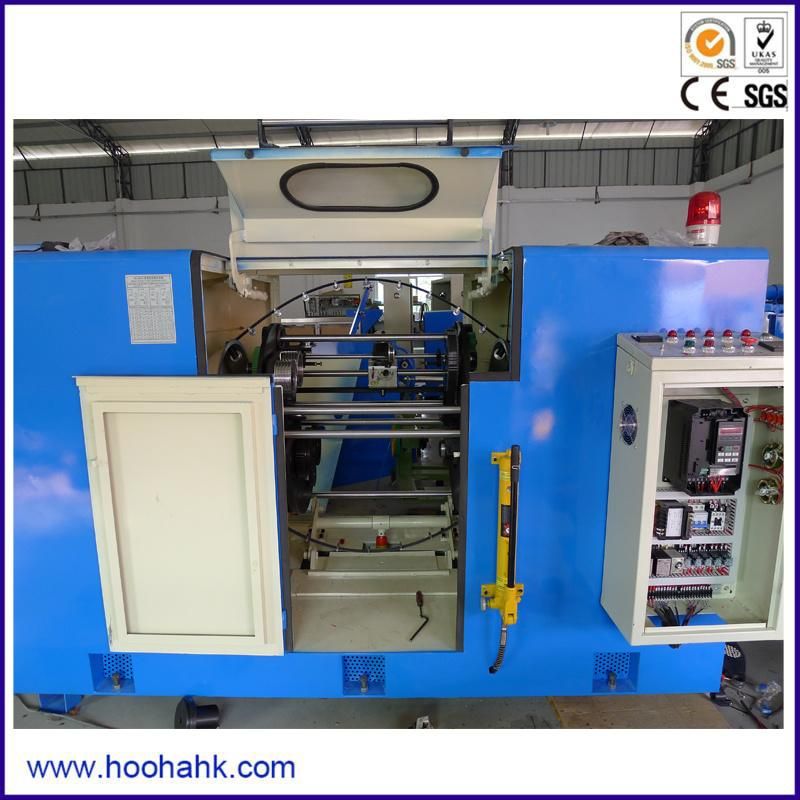

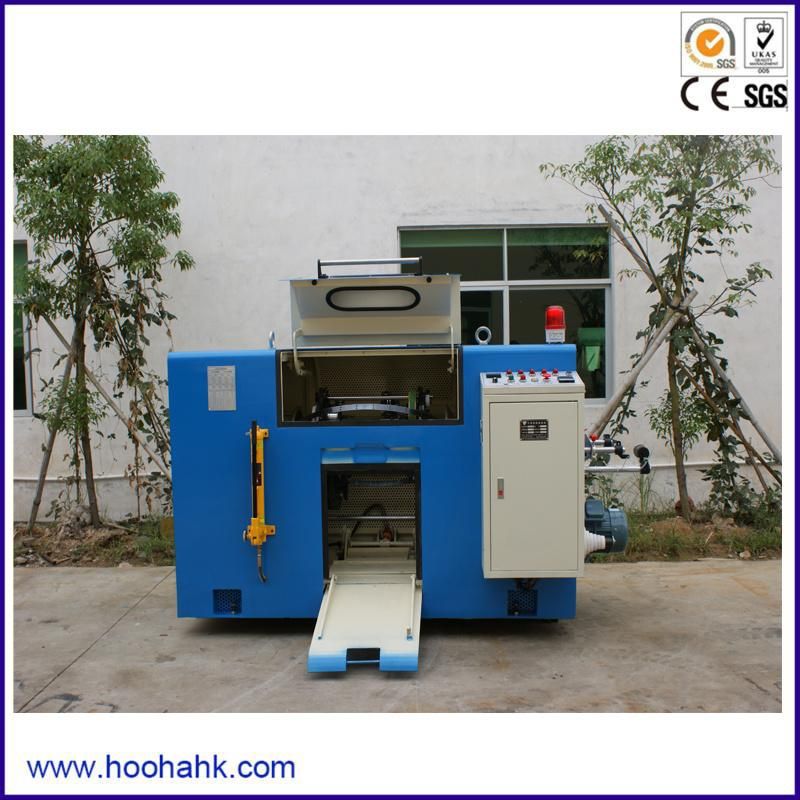

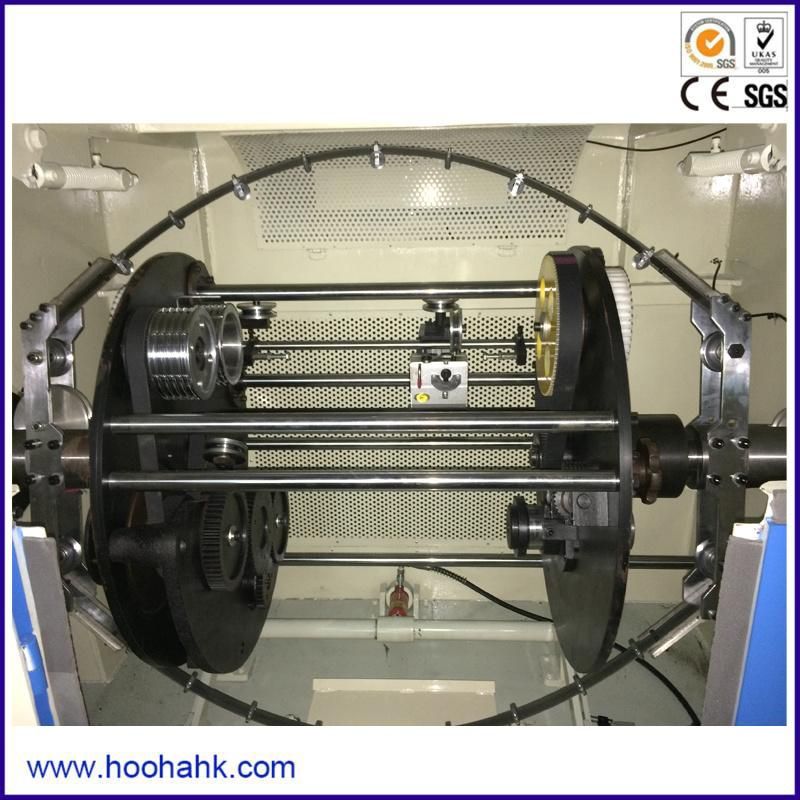

High Speed Wire and Cable Twisting Machine with Sweden Bearing

HOOHA Co., LIMITED
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：>1,000,000 Shots

Base Info

  • Model NO.：HOOHA-200,250,300,500,650,800,1000MM
  • Type：High-speed Stranding Machine
  • Model Number：300
  • Usage：Twisting
  • Material：Fine Copper
  • Main Bearing：Sweden
  • Power：5HP Controlled Inverter
  • Finished Wire Range：19-32AWG
  • Color：Customized
  • Twisting Section：0.0137-0.45mm^2
  • Diameter of Single Wire：0.05-0.16mm
  • Twisting Distance：1.6mm-17.1mm
  • Gross Weight：Max30kg
  • Highest Axis Rotation Speed：3000rpm(6000t,Min)
  • Twisting Direction：From Left to Right Evenly
  • Machine Dimension：1900*750*950mm
  • Noise Level：Approx 75dB
  • Transport Package：Plastic Packing
  • Specification：CE ISO SGS
  • Trademark：HOOHA
  • Origin：Dongguan
  • HS Code：8479400000
  • Production Capacity：40 Sets,Month

Description

Main bearing made in Sweden, others in JapanPower10HP controlled inverter15HP Controlled inverter25HP Controlled inverterNoise LevelApprox 80dBApprox 75dBApprox 80dBMachine Dimension(mm)(L)2850*(W)1500*(H)1600(L)3673*(W)1550*(H)1650(L)4473*(W)2200*(H)2300Net WeightApprox4000kgApprox5000kgApprox8000kg

High Speed Wire and Cable Twisting Machine with Sweden Bearing
High Speed Wire and Cable Twisting Machine with Sweden Bearing

High Speed Wire and Cable Twisting Machine with Sweden Bearing


4. Finished Product:

High Speed Wire and Cable Twisting Machine with Sweden Bearing


5. After-sales Service

1).Delivery dates:45 days
2).Payment:TT or L/C
3).Packing: plastic packing to ensure the goods' safety during the transportation.
4).Install and training service:2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.
