Manufacturing Equipment for Electrical & Electronic Product

Home > Product > Stranding Machine

Auto High Speed Plastic Copper Wire and Cable Stranding Machine

HOOHA Co., LIMITED
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：>1,000,000 Shots

Base Info

  • Model NO.：HOOHA-200,250,3000,500,650,800,1000MM
  • Type：High-speed Stranding Machine
  • Model Number：650
  • Usage：Stranding
  • Finished Wire Range：16-26AWG
  • Twisting Section：0.80mm^2-6mm^2
  • Power：10HP Controlled Inverter
  • Diameter of Single Wire：0.12-0.64mm
  • Twising Distance：4.2-130mm
  • Max High Axis Rotation Speed：1800rpm
  • Twisting Direction：to Left or Right
  • Color：Blue, Green
  • Noise Level：Approx 80dB
  • Machine Dimension：2850*1500*1600
  • Net Weight：Approx 4000kg
  • Gross Weight：Max400kg
  • Material Available：Copper Wire or Cable
  • Transport Package：Plastic Package
  • Specification：CE ISO SGS
  • Trademark：HOOHA
  • Origin：Dongguan
  • HS Code：8479400000
  • Production Capacity：40 Sets,Month

Description

Main bearing made in Sweden, others in JapanPower10HP controlled inverter15HP Controlled inverter25HP Controlled inverterNoise LevelApprox 80dBApprox 75dBApprox 80dBMachine Dimension(mm)(L)2850*(W)1500*(H)1600(L)3673*(W)1550*(H)1650(L)4473*(W)2200*(H)2300Net WeightApprox4000kgApprox5000kgApprox8000kg

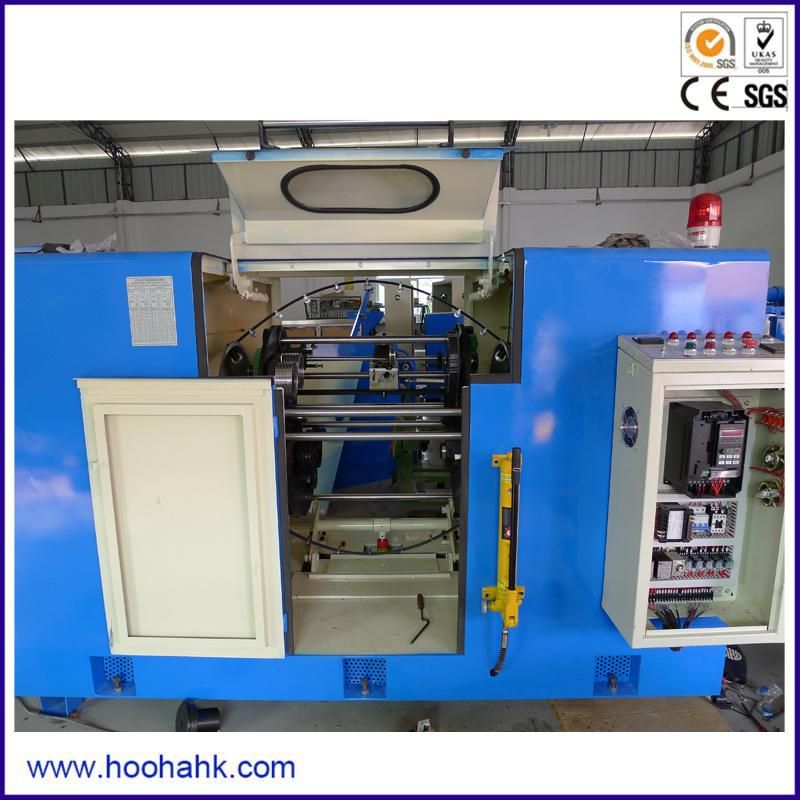

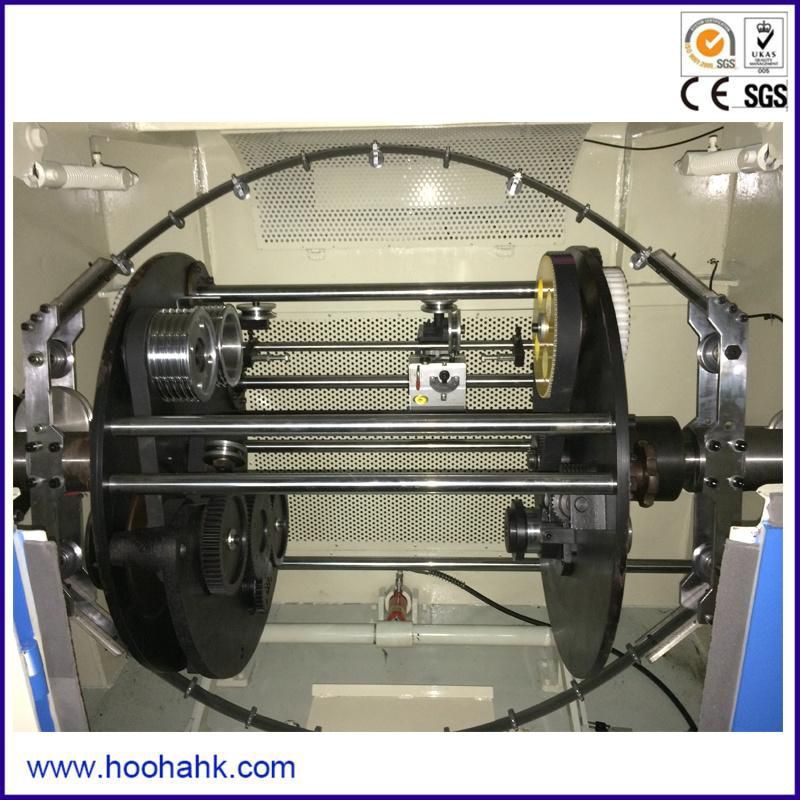

6. Product Details:

Auto High Speed Plastic Copper Wire and Cable Stranding Machine

Auto High Speed Plastic Copper Wire and Cable Stranding Machine

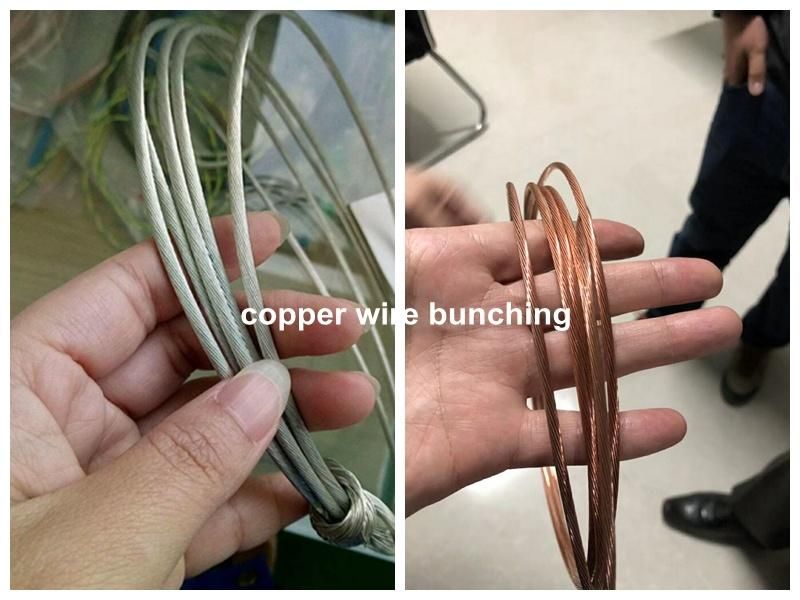

7. Finished Product:

Auto High Speed Plastic Copper Wire and Cable Stranding Machine


8. Delivery:

Auto High Speed Plastic Copper Wire and Cable Stranding Machine


9. After-sales Service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Plastic packing to ensure the goods' safety during the transportation.
4). Install and training service: 2 professional engineers who has over 5-year overseas installation and cable manufacturing training experience.


10.Contact information:

Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


11. Where we are:

Hongkong airport to Humen by boat: 2 hours
Guangzhou airport to Humen by car: 2 hours
Shenzhen airport to Humen by car: 1 hour
Guangzhou South high speed train station to Humen : 20 minutes
Shenzhen North high speed train station to Humen: 20 minutes
