Three Core Wraping/Taping +Twisting+Back-Twist All-in-One Machine

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：300,000-1,000,000 Shots

Base Info

  • Model NO.：xj500
  • Type：To Back Stranding Machine
  • Range of Application：Wire and Cable
  • Motor：Siemens
  • Precision：High Precision
  • Inverter：Yaskawa
  • Transport Package：PE Film + Wooden Box
  • Specification：CE SGS
  • Trademark：NEWTOPP
  • Origin：Dongguan City, China
  • HS Code：8479400000
  • Production Capacity：100sets,Year

Description

Basic Info.

Model NO. xj500 Type To Back Stranding Machine Range of Application Wire and Cable Motor Siemens Precision High Precision Inverter Yaskawa Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, China HS Code 8479400000 Production Capacity 100sets/Year

Product Description

1.Application:
Used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist ,twisting and taping.

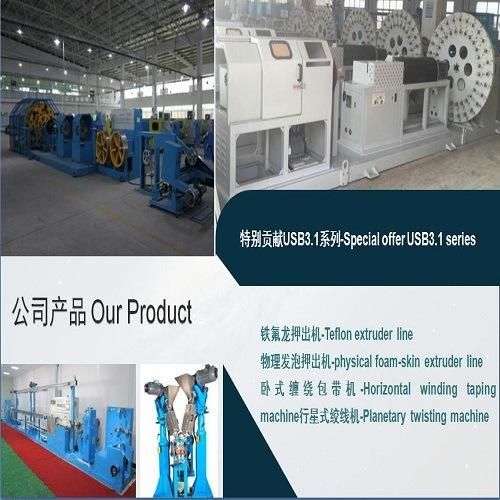

Three Core Wraping/Taping +Twisting+Back-Twist All-in-One Machine

2.Main of brand:
 Three Core Wraping/Taping +Twisting+Back-Twist All-in-One Machine


3. Technical Parameters:
Model XJ-500
Usage Used in USB3.0, HDMI, DP and so on special technology high-frequency wire back-twist ,twisting and taping.
Core-wire spec.AWG34 - AWG26
Back-twist rate100%
Taping materialAluminum foil tape, myra tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Twisted bow  rotating speedMax.1200 rpm
Twisting  pitch3.0 - 80 mm , electric pitch setting by touch screen
Main power 15 HP
Taping rotating speedMax.2000 rpm
Taping tension Taping tension keep constant from start to end, no need any manual adjustment.
Take-up tension   Take-up tension keep constant from start to end, no need any manual adjustment.
Pay-off  typeActive payoff,  tension autoadjustment, auto correct, and with wire break protection function.
4.FAQ
1) Are you a manufacturer or trading company?
 We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
2) How can we get to your factory to see the machines works?
Add: No286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high speed rail from Guangzhou south station to Humen.
