• Model NO.：N350
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Number of Heating Zones：3
• Outside Dimension：3900*1420*1750
• Weight：1300kg
• Preheating Power：220V 10kw
• Control Method：PC+PLC
• Solder Type：Lead-Free , Sn-Pb
• Solder Pot Capacity：320kg
• Solder Power：380V 12kw
• Solder Temp. Control Method：Pid&SSR
• PCB Width：50-350mm
• Transport Package：Wooden Box
• Specification：3900*1420*1750mm
• Trademark：Jaguar
• Origin：China
• HS Code：8501101000
• Production Capacity：100PCS,Month
• Package size per unit product：390.00cm * 162.00cm * 195.00cm
• Gross weight per unit product：1300.000kg

Basic Info.

Model NO. N350 Warranty 12 Months Automatic Grade Automatic Installation Vertical Number of Heating Zones 3 Outside Dimension 3900*1420*1750 Weight 1300kg Preheating Power 220V 10kw Control Method PC+PLC Solder Type Lead-Free / Sn-Pb Solder Pot Capacity 320kg Solder Power 380V 12kw Solder Temp. Control Method Pid&SSR PCB Width 50-350mm Transport Package Wooden Box Specification 3900*1420*1750mm Trademark Jaguar Origin China HS Code 8501101000 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 390.00cm * 162.00cm * 195.00cm Gross weight per unit product 1300.000kg

Product Description

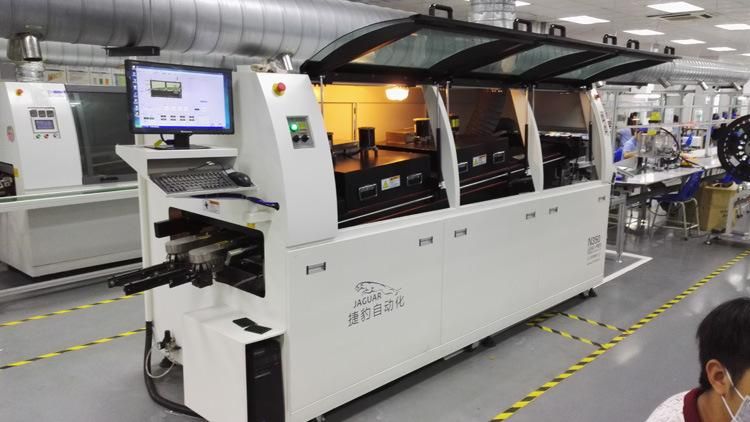

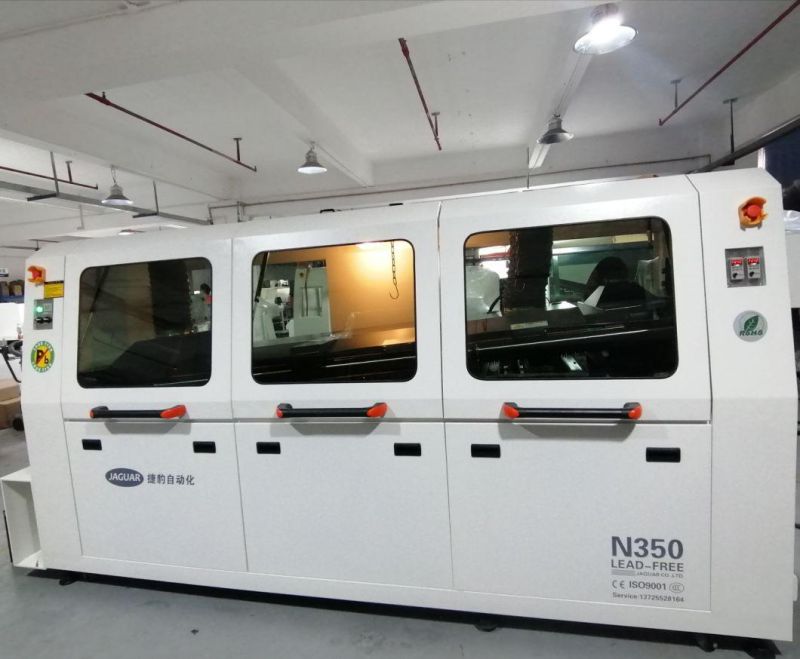

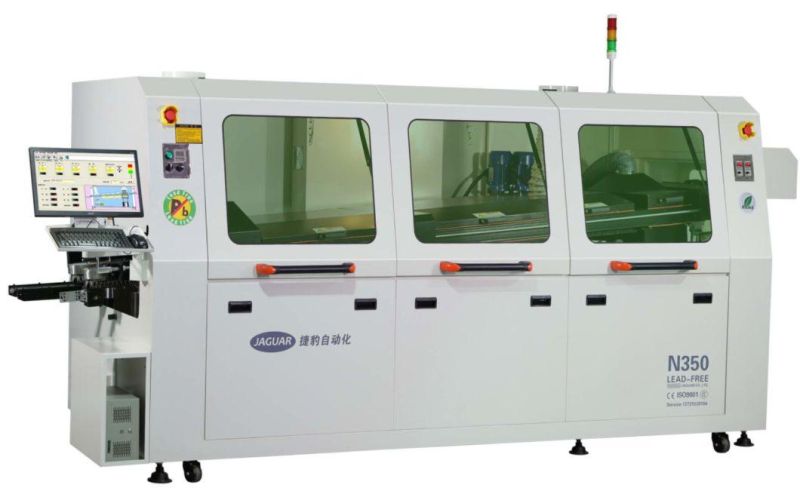

JAGUAR SMT Wave Soldering Machine of Jaguar N350
JAGUAR N350 Wave Soldering machine standard equip independ 3 hot air preheating zone, total length 1600mm, can option hot air + IR combination preheat mode, flux sprayer equip step motor to ensure spray flux evenly, fast reload plug and drag chain protection, more safe and reliable, Win7 operating system, user friendly interface, standard English and Chinese 2 languages, standard titanium solder pot, low solder mass.
1. Stepper motor driven spray fluxer, reliable and stable
2. Automatic fluxer with PCB intelligent recognition, non-stop and economic fluxer style are optional
3. Titanium alloyed finger, durable and deformable, with automatic finger cleaning
4. Hot air preheater, total preheater length: 1450mm, good temperature uniformity and high productivity
5. Dual wave solder tank, perfect soldering effection
6. Medium solder pot volume: 280kgs, 316L SS/ Titanium Alloy/ Cast Iron Enamel material are optional
7. Machine PC+PLC, LCD+PLC, Button+PLC control are optional


Specification:

Model No.	JAGUAR N350
Number of pre-heaters	3
Pre-heater passage	1600mm
Body size	3300(L)*1420(W)*1750(H)
Outside dimension	3900(L)*1420(W)*1750(H)
Weight	1300KG
Total/Steady Consumption	24KW/6-8KW
Air Supply	0.5MPa
Preheating Style	Hot air
Preheater Consumption	220V 8KW
Control  Method	PC +PLC
Range of Temp. Set-point	Room Temperature---300ºC
Preheating Time	About 10-15mins for Setting 150ºC
Solder Application	Lead-free/
Solder Pot Capacity	320KG
Solder Pot Temperature	300ºC
Solder Pot Consumption	380V 12KW
Solder Temp. Control Method	PID&SSR
Wave Motor Consumption	250Wx2pcs 220V
Solder Melting	About 120mins for Setting 250ºC
PCB  Width	50-350mm
Conveyor Speed	300-2000mm/min
Conveyor Direction	L→R (R→L optional)
Solder Angel	4-7 º
Flux Pressure	3-5 Bar
Flux Capacity	6.5L

INTRODUCTION:
1.Efficient,energy-saving,lead-free, environment-friendly,safe and brand-new design,simple operation,convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4.Preheating system uses 3-stage powerful air system, excellent heat preservation, temperature warm-up, temperature uniformity, no more than ±2oC.
5.Special alloy transportation chain claws, non-stick tin, reinforced, and ensures the quality of welding PCB board.
6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environment protection and safety, easy to clean
8.Tin heating furnace uses high-speed PID and 2-stept indepent outer-heating control, warm-up quickly and eliminates the flaws of stove tin explodes.
9.With time controller, can preset switch functions, tin stove machine heating picks up in 90minutes.
10.With black box memory function, can always get at production management records, improve work efficiency.
11.Reasonable design of environment protection, and automatic washing claw, ensure the cleanliness of claws.
12.The design is reasonable and safe with sensitive fault alarm system, to ensure the stable performance the safety of operators.
Product names: Nitrogen Wave Soldering/Wave Soldering Machine/SMT Machine
Jaguar products: stencil printer,buffer conveyor, reflow oven, lead-free reflow solder oven, reflow soldering oven,wave solder or wave soldering machine, smt chip mounter,Smt Pick and Place Machine, PCB conveyor, smt machine/Smt Equipment and smt peripheral equipments.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
