• Model NO.：T200C
• Weight：39 Kg
• Heating Way：Infrared Ray + Hot Air Convection
• Dimension：70 * 46*31cm
• Temperature Range：Room-Temperature -360 º C
• Transport Package：Wooden Case
• Specification：67*55*32cm
• Trademark：Torch
• Origin：Beijing, China
• HS Code：8514200009
• Production Capacity：20 Set,Month

Basic Info.

Model NO. T200C Weight 39 Kg Heating Way Infrared Ray + Hot Air Convection Dimension 70 * 46*31cm Temperature Range Room-Temperature -360 º C Transport Package Wooden Case Specification 67*55*32cm Trademark Torch Origin Beijing, China HS Code 8514200009 Production Capacity 20 Set/Month

Product Description

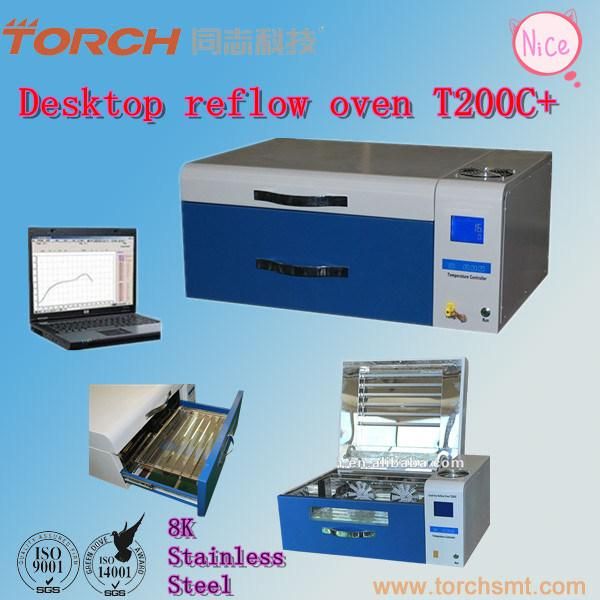

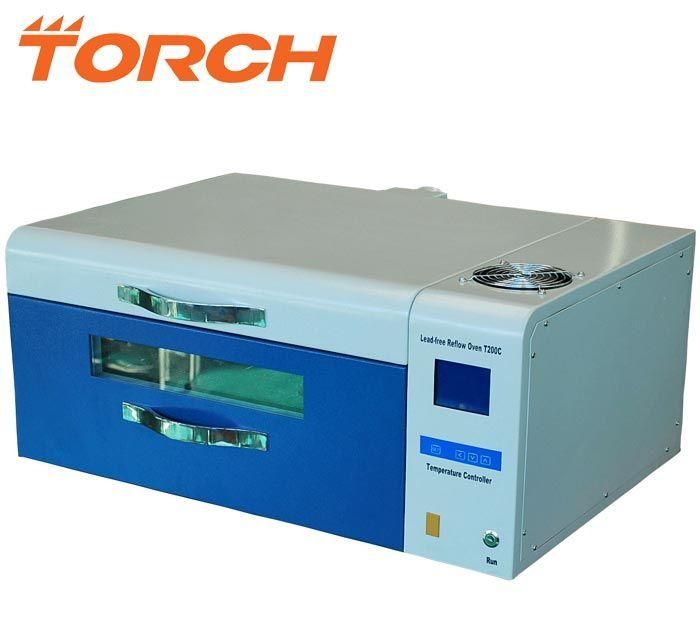

Small Leadfree Reflow Oven Desktop SMT  Welding Oven T200C


Main features of T200 series:
PC interface software control and visional operation
Real-time temperature testing function fills the blank of SMT industry overall world for adjusting the temperature at the real time.

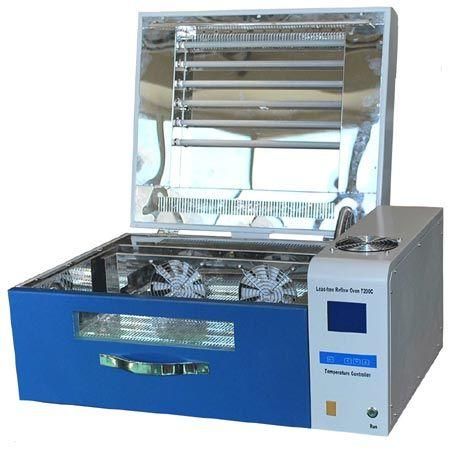

Patented heater installation® For heating evenly
Patented forced air cycling and ventilating technology® For extremely uniform temperature profiling across the board.
Patented oven door actuating device® For no vibration after PCB welding.
Patented auto-open door technology® For higher efficiency on production and the door matched with seal device for keeping temperature.
Active Ventilation function for exhaust gas emission.
Exhaust purifying function for environment-friendly.



4. Application:

T200C, T200C+ for SMD component 0201, QFP, PLCC ect
T200N, T200N+ for SMD component 0201, QFP, PLCC and specially for some more high precision component like more foot of QFP, high precision BGA component.
T200C and T200N for small mass production in factories.
T200C+, T200N+, + series it is suitable for school, R&D center of enterprise, of course
Which depends on customer's board situation and operation requirement.

TORCH brand desktop reflow oven has got purchse order from TOP 500 enterprises: GE, CISCO, 3M, TI, NVIDIA, Nortel Network ect last year, especially GE and CISCO, totally purchased for more than 12 sets.

Temperature control segment:	40 segment The segment can be set in computer according to the actual requirement.
Temperature-zone numbers:	Single-zone and multi-segment
Temperature control system	PC control system, SSR non-contact output
Temperature accuracy	+/- 2 ºC
Warm-up time	3min
Temperature range	Room-temperature -360 ºC
Heating supply	Infrared ray + Hot air convection
Effective working table area	360mm * 230mm (more than A4)
Welding time	3min +/-1min
Temperature curve	It can be set, adjusted and tested according to the actual requirement.
Cooling system	Transverse flow equal cooling
Rated voltage	AC single-phase, 220V; 50Hz
Rated power	3.8KW Mean power: 1.6kw
Weight	39 kg
Dimension	Length*width*height 700 * 460 *310mm
