• Model NO.：N350
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Name：Reflow Solder
• Conveyor Height：750+20mm
• Conveyor Speed：0-1800mm,Min
• No. of Preheater：3
• Total Length of Preheater：1600mm
• Preheating Mode：Hot Air or IR
• Flux Tank：6.5L
• Flux Mode：Non-Stop or Intelligent
• Solder Pot Volume：320kgs
• Finger：Titanium Alloy
• Finger Cleaning：Automatic
• Transport Package：Wooden Box
• Specification：3900*1420*1750mm
• Trademark：JAGUAR Automation
• Origin：China
• HS Code：8468200090
• Production Capacity：500 Sets,Month
• Package size per unit product：390.00cm * 162.00cm * 195.00cm
• Gross weight per unit product：1300.000kg

Basic Info.

Model NO. N350 Warranty 12 Months Automatic Grade Automatic Installation Vertical Name Reflow Solder Conveyor Height 750+20mm Conveyor Speed 0-1800mm/Min No. of Preheater 3 Total Length of Preheater 1600mm Preheating Mode Hot Air or IR Flux Tank 6.5L Flux Mode Non-Stop or Intelligent Solder Pot Volume 320kgs Finger Titanium Alloy Finger Cleaning Automatic Transport Package Wooden Box Specification 3900*1420*1750mm Trademark JAGUAR Automation Origin China HS Code 8468200090 Production Capacity 500 Sets/Month

Packaging & Delivery

Package size per unit product 390.00cm * 162.00cm * 195.00cm Gross weight per unit product 1300.000kg

Product Description

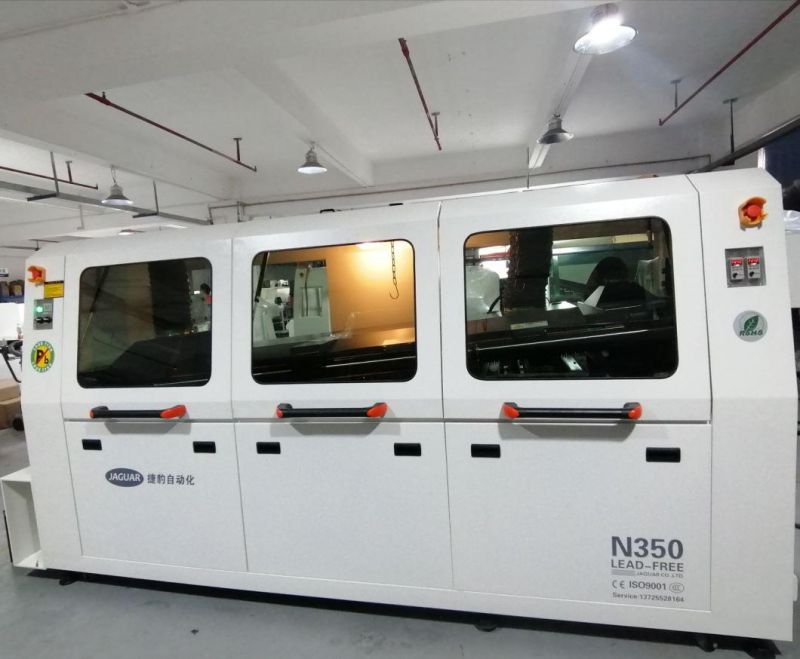

JAGAUR Lead-free Hot Air Wave Soldering Machine Designed for High End Lead Free applications and environmental protection
Brings you power reduction & makes production under controlled
Lengthened Hot air structured preheaters in 1600mm
Computerized controlled with user friendly interface
Patented solder pot structure for low solder dross formation rate
High throughput and large board handling capability
Power Reduction Design
Over 80% of key portions using imported electronic components
Computer together with SIEMENS PLC controlled
 Specification:

Model No.	JAGUAR N350
Number of pre-heaters	3
Pre-heater passage	1600mm
Body size	3300(L)*1420(W)*1750(H)
Outside dimension	3900(L)*1420(W)*1750(H)
Weight	1300KG
Total/Steady Consumption	24KW/6-8KW
Air Supply	0.5MPa
Preheating Style	Hot air
Preheater Consumption	220V 8KW
Control  Method	PC +PLC
Range of Temp. Set-point	Room Temperature---300ºC
Preheating Time	About 10-15mins for Setting 150ºC
Solder Application	Lead-free/
Solder Pot Capacity	320KG
Solder Pot Temperature	300ºC
Solder Pot Consumption	380V 12KW
Solder Temp. Control Method	PID&SSR
Wave Motor Consumption	250Wx2pcs 220V
Solder Melting	About 120mins for Setting 250ºC
PCB  Width	50-350mm
Conveyor Speed	300-2000mm/min
Conveyor Direction	L→R (R→L optional)
Solder Angel	4-7 º
Flux Pressure	3-5 Bar
Flux Capacity	6.5L

INTRODUCTION:
1. Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2. Automatic power system, frequency converter control, automatic board input system.3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
3. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
4. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
5. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6. Lead-free solder furnace with independent design, environmental protection and safety,
7. easy to clean.
8. Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
9. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10. With black box memory function, the machine can always store the production management records, improve work efficiency.
11. Automatic claw cleaning function ensure the cleanliness of claws.
12. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
