• Model NO.：N350
• Precision：High Precision
• Certification：CCC, RoHS, ISO, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Type：Electronics Manufacture Machine
• Product Name：Wave Soldering Machine
• Fluxer：Spray
• No. of Preheater：3
• Length of Preheating Zone：1600mm
• Wave：Mirror and Turbulence Wave
• Solder Pot Volume：320kgs
• Finger Cleaning：Automatic
• Max PCB Width：350mm
• Conveyor Speed：0-1800mm,Min
• Machine Power Supply：380V
• Transport Package：Standard Export Package of Vacuum +Plyood Packing
• Specification：3900*1420*1750mm
• Trademark：JAGUAR
• Origin：Shenzhen
• HS Code：8515190000
• Production Capacity：100pieces,Month
• Package size per unit product：410.00cm * 162.00cm * 195.00cm
• Gross weight per unit product：1300.000kg

Basic Info.

Model NO. N350 Precision High Precision Certification CCC, RoHS, ISO, CE Warranty 12 Months Automatic Grade Automatic Type Electronics Manufacture Machine Product Name Wave Soldering Machine Fluxer Spray No. of Preheater 3 Length of Preheating Zone 1600mm Wave Mirror and Turbulence Wave Solder Pot Volume 320kgs Finger Cleaning Automatic Max PCB Width 350mm Conveyor Speed 0-1800mm/Min Machine Power Supply 380V Transport Package Standard Export Package of Vacuum +Plyood Packing Specification 3900*1420*1750mm Trademark JAGUAR Origin Shenzhen HS Code 8515190000 Production Capacity 100pieces/Month

Packaging & Delivery

Package size per unit product 410.00cm * 162.00cm * 195.00cm Gross weight per unit product 1300.000kg

Product Description

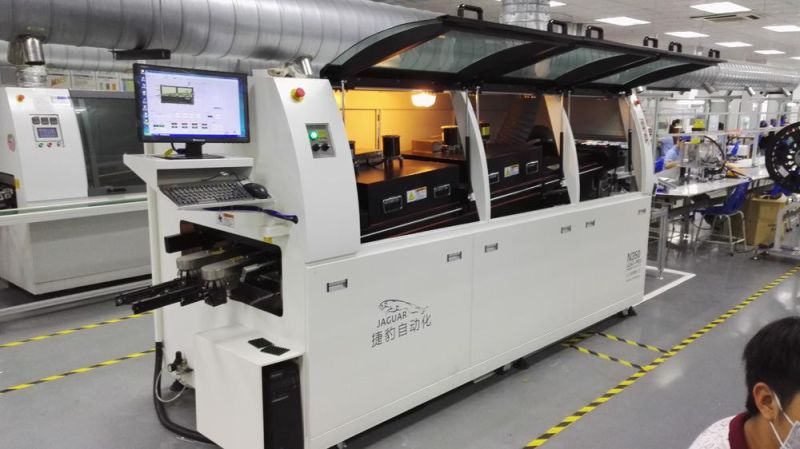

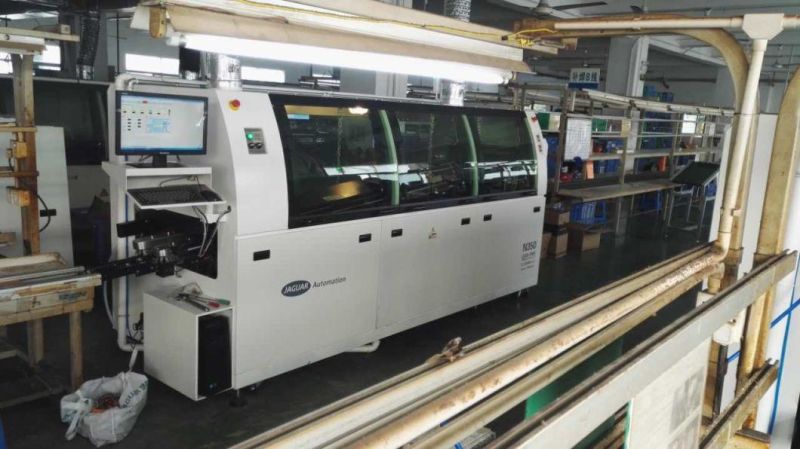

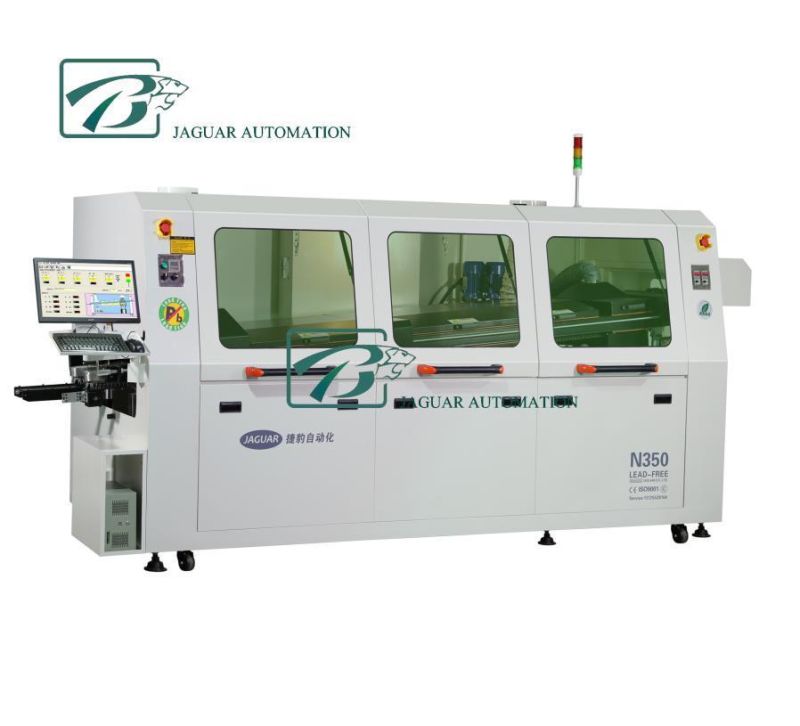

JAGUAR High Productivity Lead-free Hot Air Wave Soldering Machine

JAGUAR Lead-free Hot Air Wave Soldering machine is one of our most popular machine, which high performance and easy operation design, very suit for medium enterprise. Button control system is standard, can optional trouch screen and PC.

3 phase preheating zone length to 1600mm, Variable-frequency speed control system, Intelligent spray wave system are it's features, energy saving, high temperature control precision, easy operation and high cost-performance rate are it's advantages.
1.Stepper motor driven flux sprayer, spray range is selective, save more flux.
2.Flux recovery container drawer design, easy to clean.
3.Conveyor passage add 1 more width ajustable screw, total 3 screws, the conveyor transmission is more stable, no PCB falling risk.
4.Solder pot's inpeller material is cast iron, never corrode
5.Solder pot with oxidation jacket, low solder dross

Specification:

Model No.	JAGUAR N350
Number of pre-heaters	3
Pre-heater passage	1600mm
Body size	3300(L)*1420(W)*1750(H)
Outside dimension	3900(L)*1420(W)*1750(H)
Weight	1300KG
Total/Steady Consumption	24KW/6-8KW
Air Supply	0.5MPa
Preheating Style	Hot air
Preheater Consumption	220V 8KW
Control  Method	PC +PLC
Range of Temp. Set-point	Room Temperature---300ºC
Preheating Time	About 10-15mins for Setting 150ºC
Solder Application	Lead-free/
Solder Pot Capacity	320KG
Solder Pot Temperature	300ºC
Solder Pot Consumption	380V 12KW
Solder Temp. Control Method	PID&SSR
Wave Motor Consumption	250Wx2pcs 220V
Solder Melting	About 120mins for Setting 250ºC
PCB  Width	50-350mm
Conveyor Speed	300-2000mm/min
Conveyor Direction	L→R (R→L optional)
Solder Angel	4-7 º
Flux Pressure	3-5 Bar
Flux Capacity	6.5L

Introduction:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

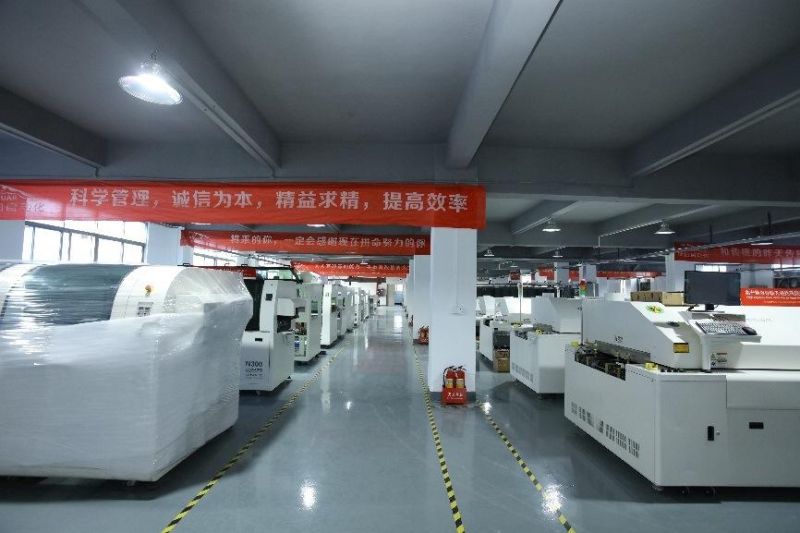

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

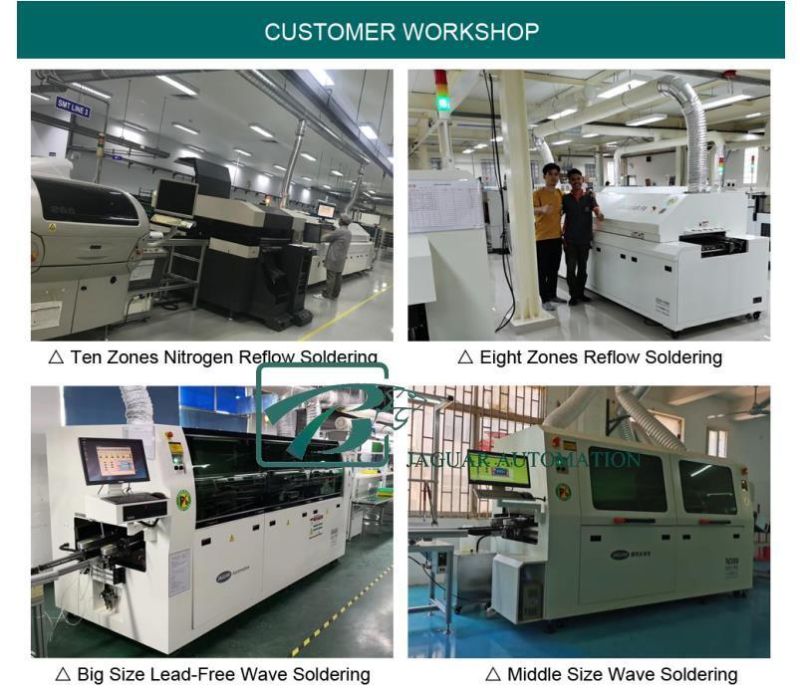

Customer and Feedback:
