Electrical Core Cable Copper Wire Winding Twisting Bunching Extrusion Machine
Kunshan Fuchuan Electrical and Mechanical Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CE, ISO
- Warranty：12 Months
- Equipment Type：FC-35,45,65
- Applicable：FEP, Fpa and ETFE
Base Info
- Model NO.：FC-70+45
- F46：FEP
- Fpa：Oxidation of PVC Resin Silance Oxygen Radicals
- Cylinder Dia：35mm,45mm,65mm
- Take up Type：Motor Take up
- Automatic Grade：Automatic
- Mould Life：300, 000-1, 000, 000 Shots
- Type：Single Stranding Machine
- Transport Package：Simply Packed
- Specification：ISO9001
- Trademark：FC
- Origin：Jiangsu Kunshan
- HS Code：8477209000
- Production Capacity：30set,One Month
Description
Basic Info.
Model NO. FC-70+45 F46 FEP Fpa Oxidation of PVC Resin Silance Oxygen Radicals Cylinder Dia 35mm/45mm/65mm Take up Type Motor Take up Automatic Grade Automatic Mould Life 300, 000-1, 000, 000 Shots Type Single Stranding Machine Transport Package Simply Packed Specification ISO9001 Trademark FC Origin Jiangsu Kunshan HS Code 8477209000 Production Capacity 30set/One MonthProduct Description

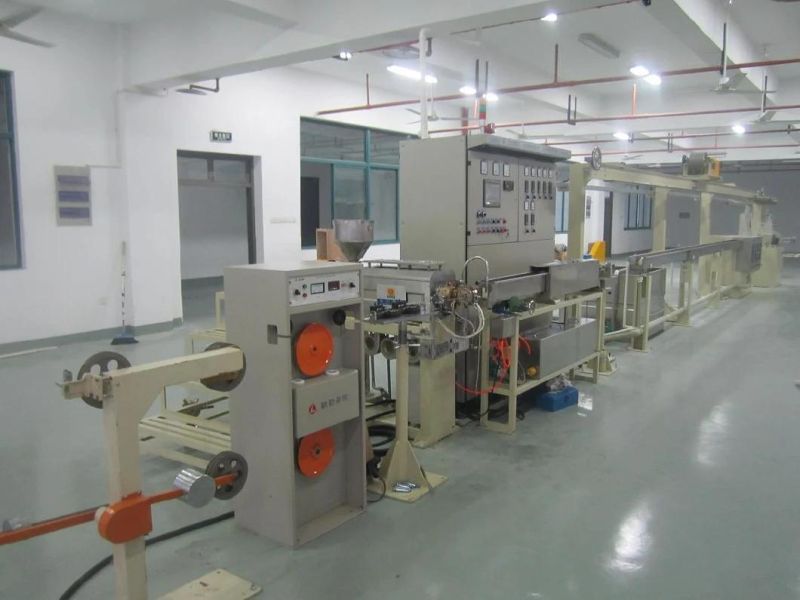

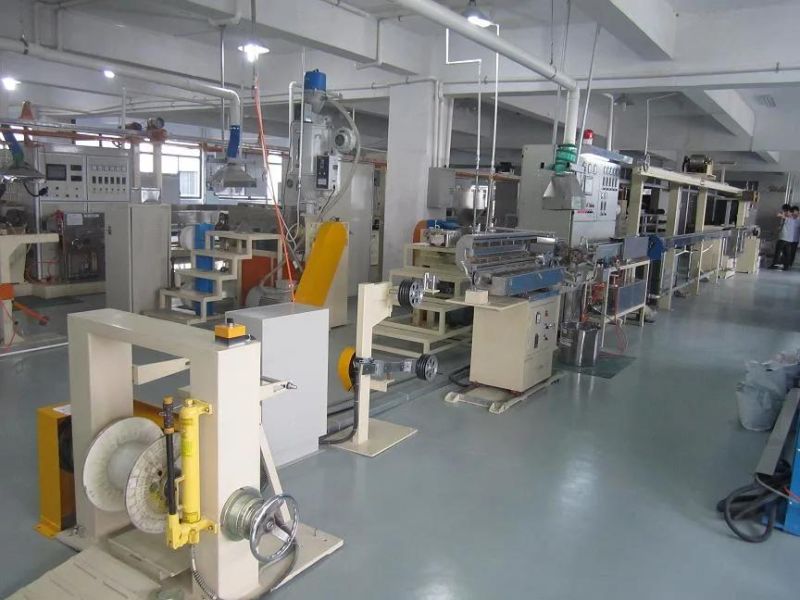

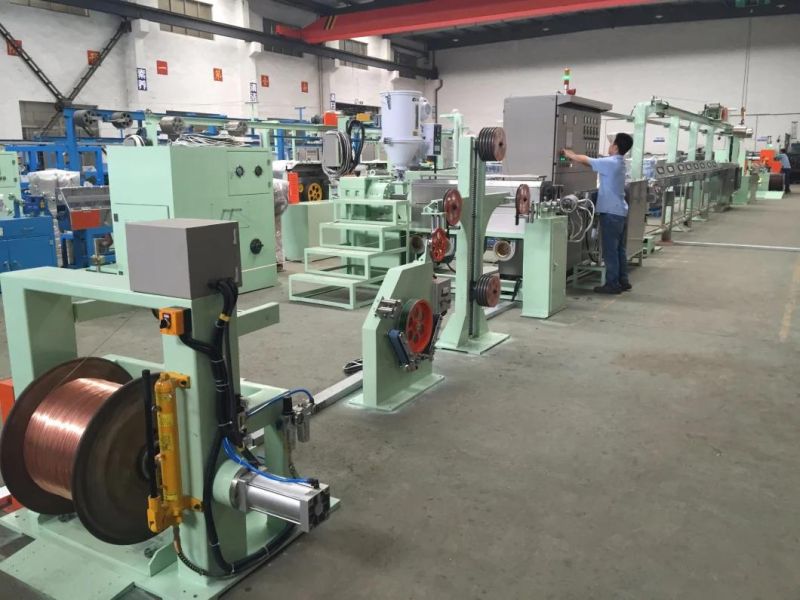

High temperature extruder lineIt is appliable to FEP,FPA and ETFE etc,fluorine plastic's production.
Cylinder dia:35mm
Screw L/D ratio:25:1
Revolving speed of screw: 60 RPM
Extrusion output:15kg/h
Power for main machine:11KW
Conductor dia:0.2-1.02mm
Finished wire dia:0.6-1.67mm
Temperature control:7 phase
Pay off type:Dynamic or Tension wire feeding
Evacuating device: Vacuum Generator
Pre-heater:5KVA
Dia size meter:Manual/Laser Automatic dia size meter
