Single Conductor Wire Cut and Strip Machine Wl-BJE2

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type:Electric
  • Condition:New

Base Info

  • Model NO.:WL-BJE2
  • Certification:RoHS, ISO, CE
  • Warranty:12 Months
  • Automatic Grade:Semiautomatic
  • Power Supply:220,110V, 50,60Hz
  • Wire Size:0.1-10 Sqmm
  • Cutting Length:1-100,000mm
  • Stripping Length:Head: 0-80mm, Tail: 0-80mm
  • Wire Guide Diameter:13mm
  • Display Screen:English LCD Screen
  • Productivity:L=100mm, 3000–6000PCS,H
  • Drive Method:4 Wheels
  • Dimension:54*51*40cm
  • Weight:28kg
  • Cutting Length Tolerances:Less (0.002*L)mm

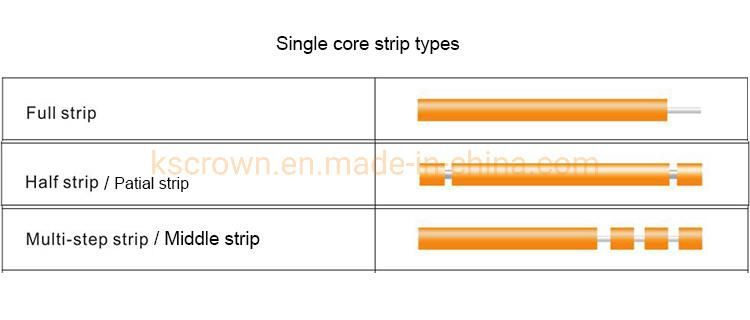

  • Middle Strip:16 Sections

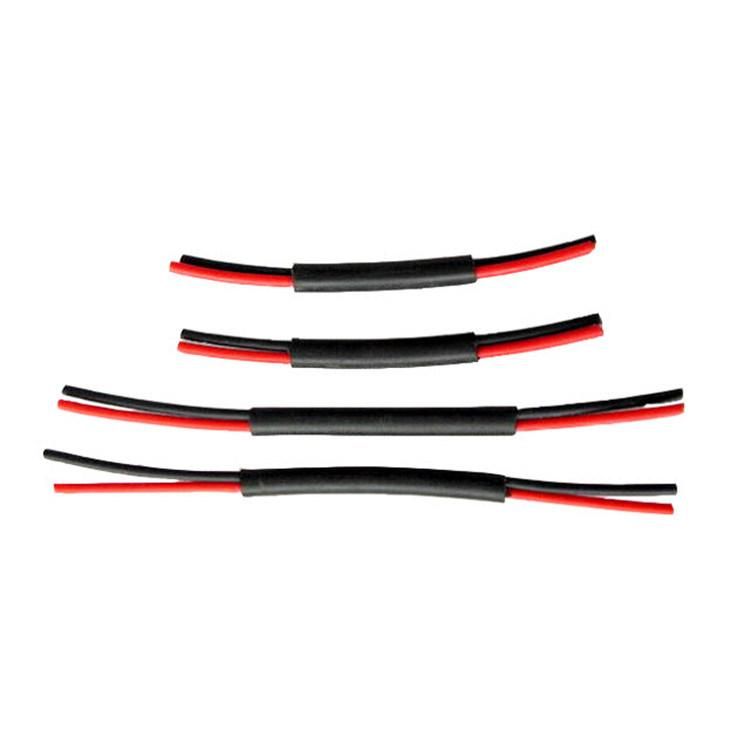

  • Stripping Features:Stripping Outer Jacket
  • Transport Package:54*51*40cm
  • Specification:34kg
  • Trademark:Crown
  • Origin:China
  • HS Code:8479819000
  • Production Capacity:1000set,Month
  • Package size per unit product:54.00cm * 51.00cm * 40.00cm
  • Gross weight per unit product:34.000kg

Description

390*350*255mm

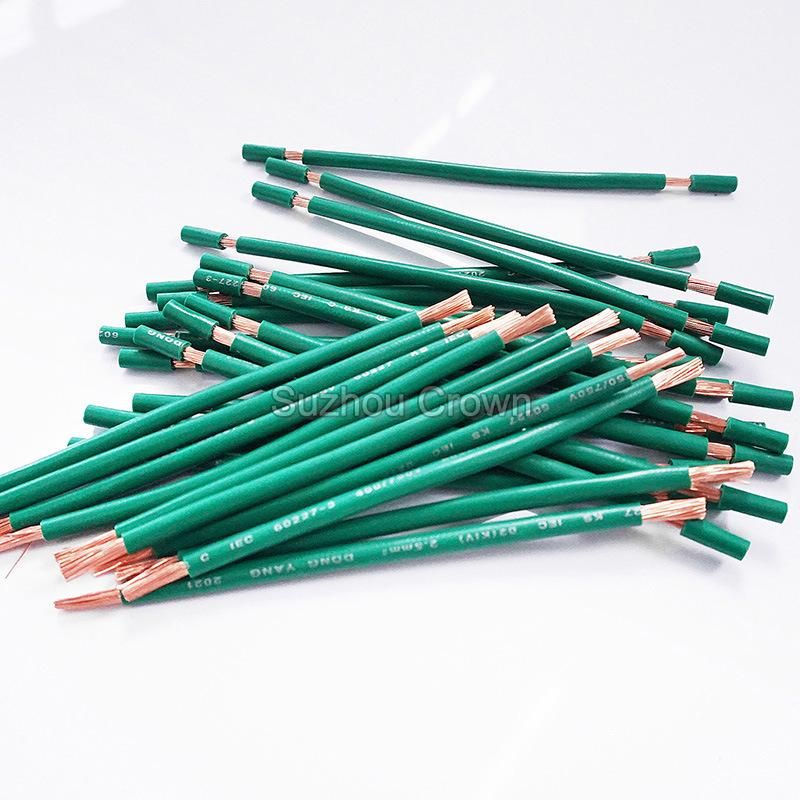

Application
Single Conductor Wire Cut and Strip Machine Wl-BJE2
Single Conductor Wire Cut and Strip Machine Wl-BJE2Single Conductor Wire Cut and Strip Machine Wl-BJE2

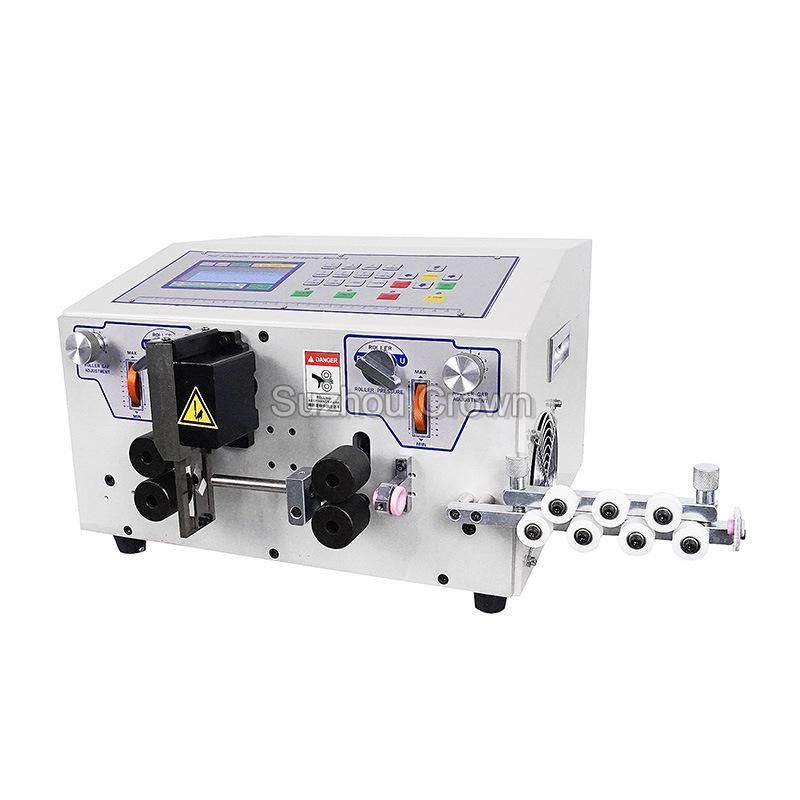

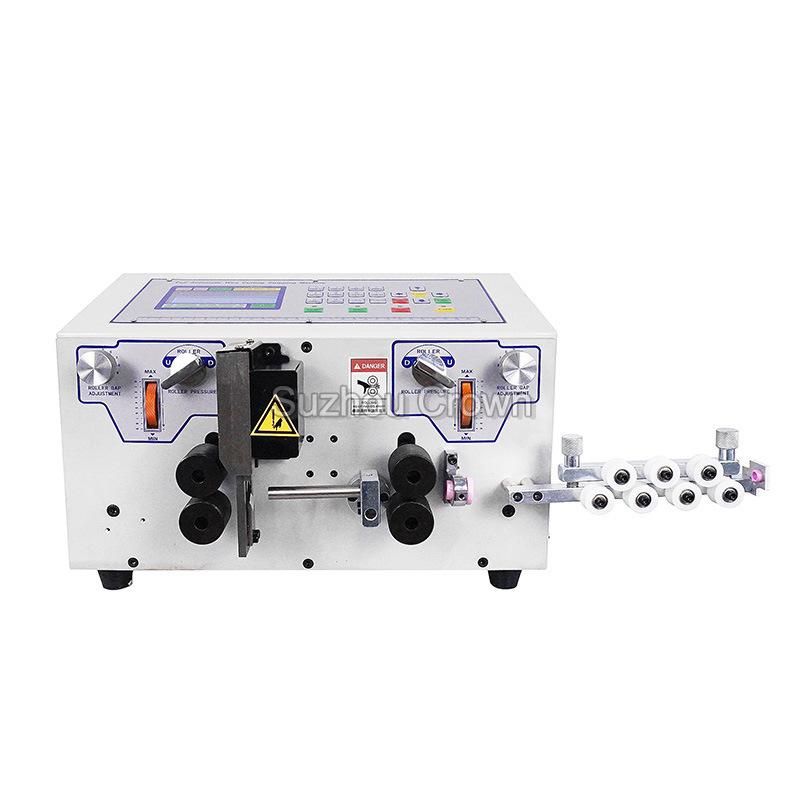

Machine:

Single Conductor Wire Cut and Strip Machine Wl-BJE2Single Conductor Wire Cut and Strip Machine Wl-BJE2Single Conductor Wire Cut and Strip Machine Wl-BJE2Single Conductor Wire Cut and Strip Machine Wl-BJE2
Single Conductor Wire Cut and Strip Machine Wl-BJE2


Features:

  • Fully automatic cutting and stripping, high performance

  • Suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more;

  • LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;

  • Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;

  • Saving labor and time and increasing productivity

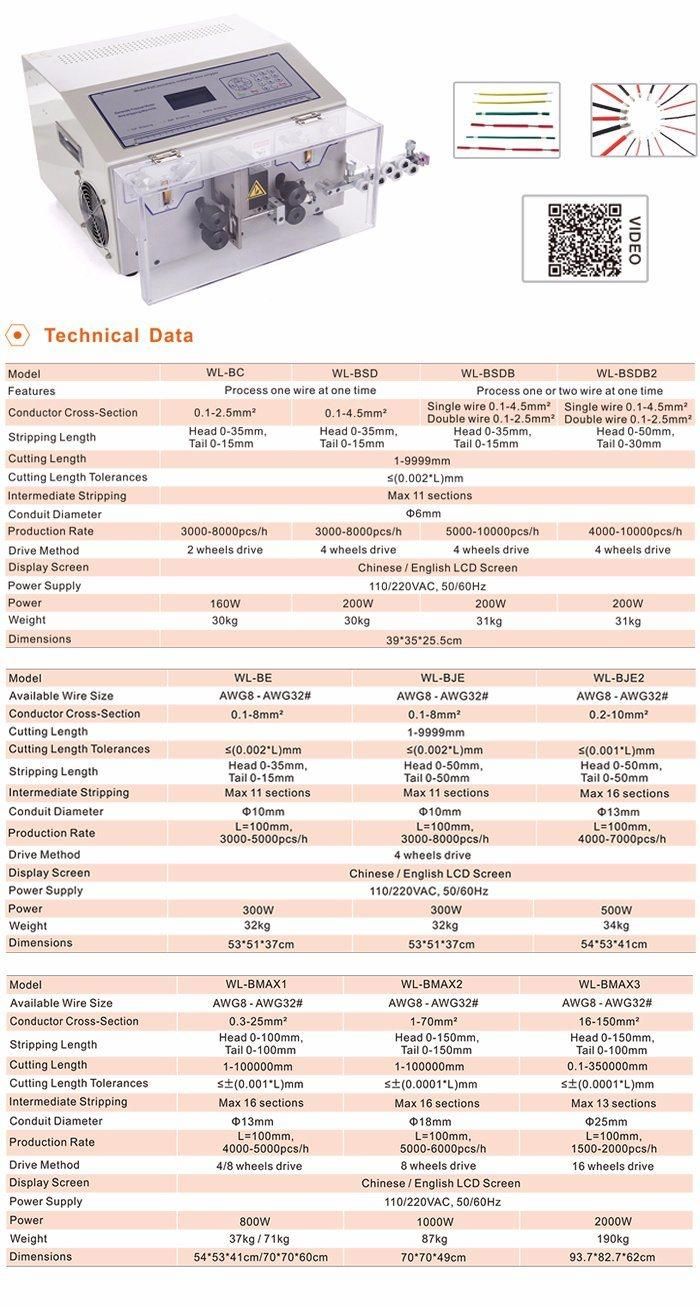

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.

Single Conductor Wire Cut and Strip Machine Wl-BJE2

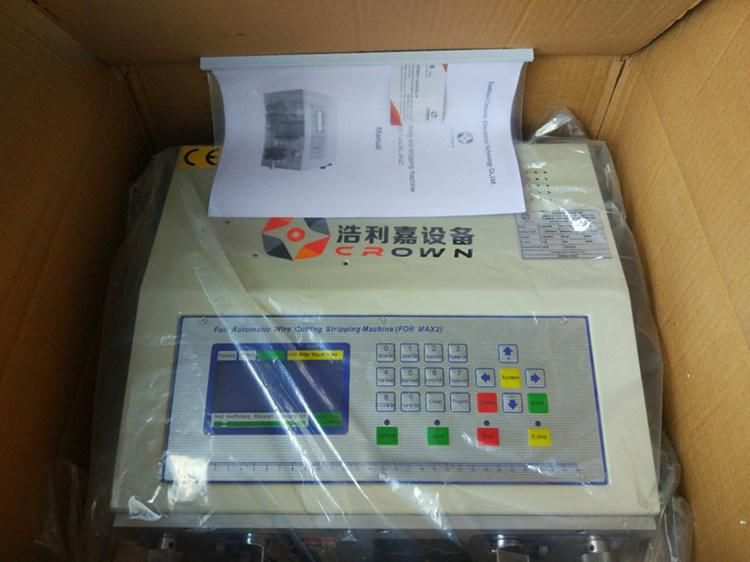

Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Single Conductor Wire Cut and Strip Machine Wl-BJE2



Company info:

Single Conductor Wire Cut and Strip Machine Wl-BJE2




Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
