• Model NO.：BZW-F2.5+Z
• Stripping Length：6-12mm (Other Size Can Be Specially Ordered)
• Applied Terminal：6,8,10,12mm(Other Size Can Be Specially Ordered)
• Air Supply：220V,50Hz
• Weight：32kg
• Transport Package：Wooden Case
• Specification：400 x 340 x 450 mm
• Trademark：BOZWANG
• Origin：Jiangsu Changzhou
• Production Capacity：1000PCS ,Year

Pre-insulated terminal stripping and crimping machine

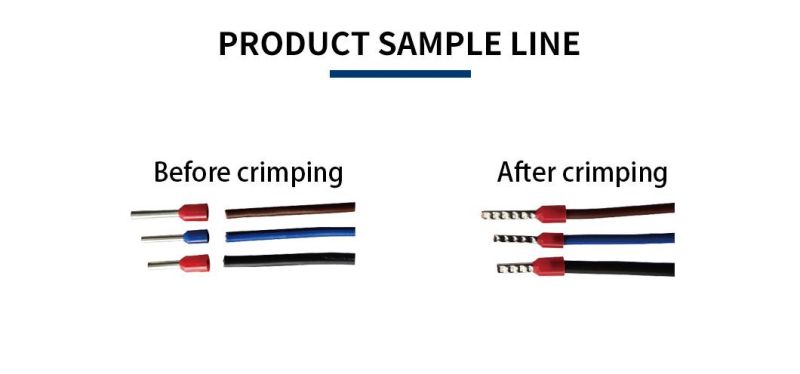

1.Wire threading, stripping and terminal crimping are finished at one time, especially for crimping international standard tube terminal;

2.Wire threading, stripping and terminal crimping are finished at one time, especially for crimping international standard tube terminal;

3.it  simplifies the complicated procedure, the overall efficiency is increased by 3-4 times compared to the manual working, with a greater cost performance;

4.the wire inserting part is horn shape which is convenient for wire threading;

5.The wire stripping diameter and crimping height are automatically adjusted;

6.Sensitive pneumatic control, fast crimping;

7.it adopts the vibrating plate to feeding the terminal ,easy and fast to change the terminal;

8.Imported components and cylinder ensures its stable performance.
 TECHNICAL PARAMETER

Wire range	0.5-2.5 mm2
Stripping length	6-10mm2(Other size can be specially ordered
Applied terminal	6/8/10mm(Other size can be specially ordered)
Air supply	0.5~0.7MPa
Power	220V/50HZ
Dimension	400 x 340 x 450 mm
Weight	32kg

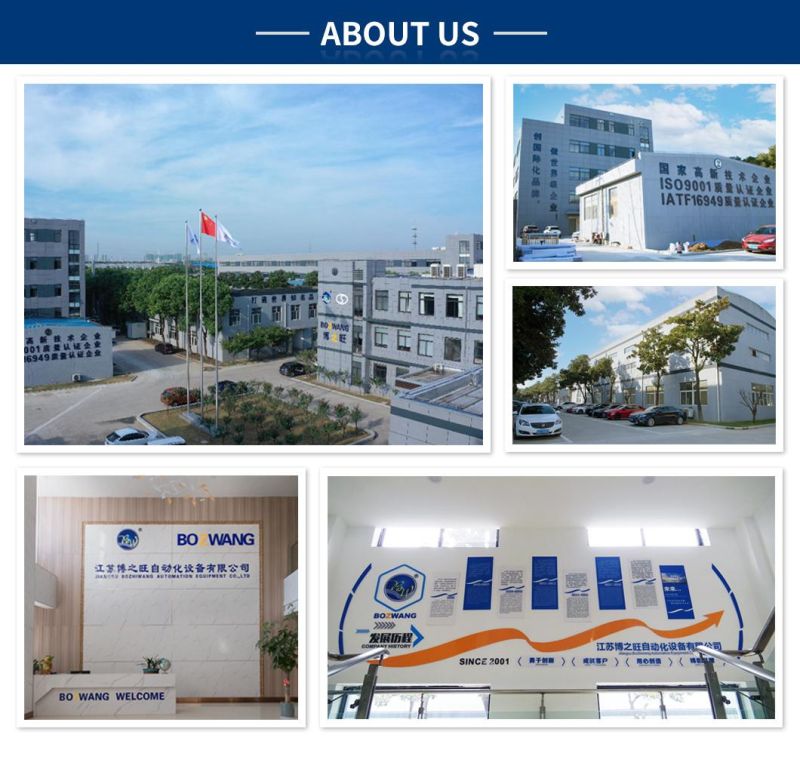

      Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a large-scale intelligent wire processing equipment manufacturer in China,located in the center of the beautiful and rich Yangtze River Delta---China's famous industrial equipment manufacturing base Changzhou City, Jiangsu Province.

      The company covers an area of 40,000 square meters and a building area of 45,000 square meters with more than 400 employees,including more than 300 outstanding technicians. The company has successively passed ISO9001, QS-9000, CE certification, TUV certification, and developed a number of products with independent intellectual property rights, and obtained more than 60 invention patents, more than 100 utility model patents and 100 new appearance patents, the technology and comprehensive strength of product research and development ranks the top among the nationwide.

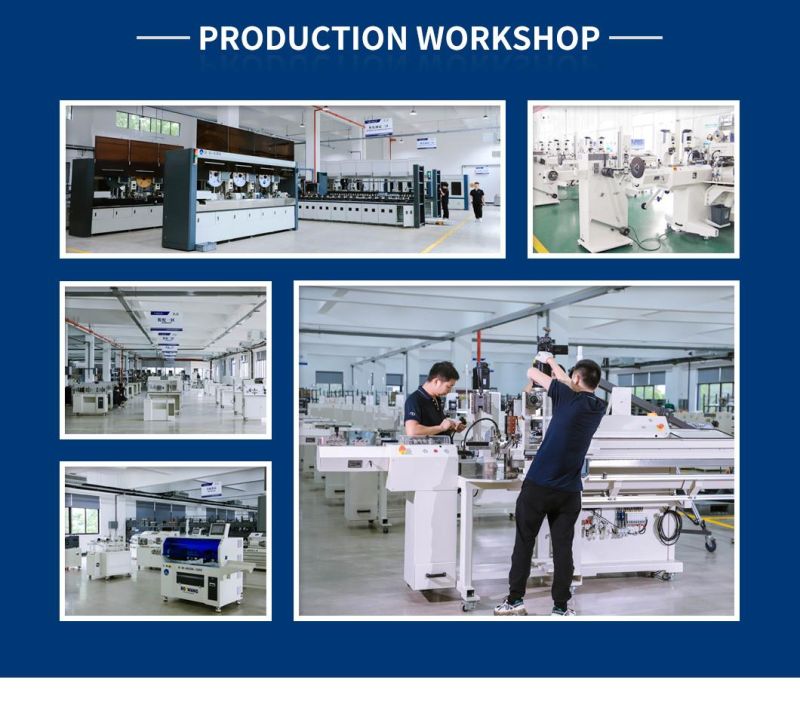

      In the production process, the company strictly follows the ISO:9001 quality standard for daily production and management. It mainly focuses on the automotive, photovoltaic and new energy industries and has developed and produced a series of automatic processing equipment with
high quality, stable performance and high efficiency.

      Mainly include automotive wiring harness/HSD/FAKRA radio frequency wire harness/new energy wiring harness and other related semi-automatic and fully automatic intelligent production lines, automatic double ends terminal machine with seal inserting, automatic ribbon cable terminal machine, automatic single-double-end terminal crimping machine, automatic wire stripping machine,JB box automation equipment, new energy automation equipment, and a complete set of equipment series for various semi-automatic wire harness processing. With the increasing annual output of the company, it has reached an annual output of more than 20,000 sets of intelligent assembly lines and various wire harness processing equipment, and the production equipment has the characteristics of high precision, high degree of automation, and strong supporting performance of the whole machine.
