PVC Coated Wire Rope Stripping Machine
Suzhou Crown Electronic Technology Co., Ltd.- Certification：CE
- Model：Wl-Bgs
Base Info
- Model NO.：WL-BGS
- Display Mode：7-Inch Colorful PLC Touch Screen
- Memory Function：up to 100 Groups of Programs Can Be Stored
- Applicable Wire Diameter：Multi-Strand Copper Wire, Coaxial Cable, Sheathed
- Drive Mode：12-Wheel Drive, Synchronous Belt Wire Feeding
- Applicable Core Area：Bvr2.5.0-70mm2 (BV35 mm2, Sheath Wire Outer Diamet
- Blade Material：Imported High-Speed Steel
- Large Catheter Diameter：ø20mm
- Working Voltage：220V,50Hz
- Cutting Length Range：0-100 Meters
- Rated Power：800W
- Stripping Length at Both Ends：0-300mm for Wire Head, 0-150mm for Wire Tail
- Dimensions：700*640*480mm
- Minimum Length of Glue Retention：50mm
- Weight：About 100kg
- Transport Package：Carton
- Specification：42*39*28cm
- Trademark：Crown
- Origin：China, Kunshan
- HS Code：8479819000
- Production Capacity：L=100mm, 2, 000-3, 000PCS,H
- Package size per unit product：70.00cm * 64.00cm * 48.00cm
- Gross weight per unit product：110.000kg
Description
1,500-2,500 per hour This machine adopts 12-wheel drive, featuring strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of medical, communications, power cables, sheathed wires, soft and hard wires. The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without manual adjustment of the wheel pressure. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program. The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be divided into three layers, or the longest stripping length Three times of peeling; 100 groups of program memory functions are provided, and the processing parameters of different wires can be stored in different program numbers. It can be equipped with branching jigs, cutting jigs, and inkjet printers. Our service We provide: · Best products and factory price.
This coated aircraft cable stripping machine adopts 12-wheel drive, featuring strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of medical, communications, power cables, sheathed wires, soft and hard wires.
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden

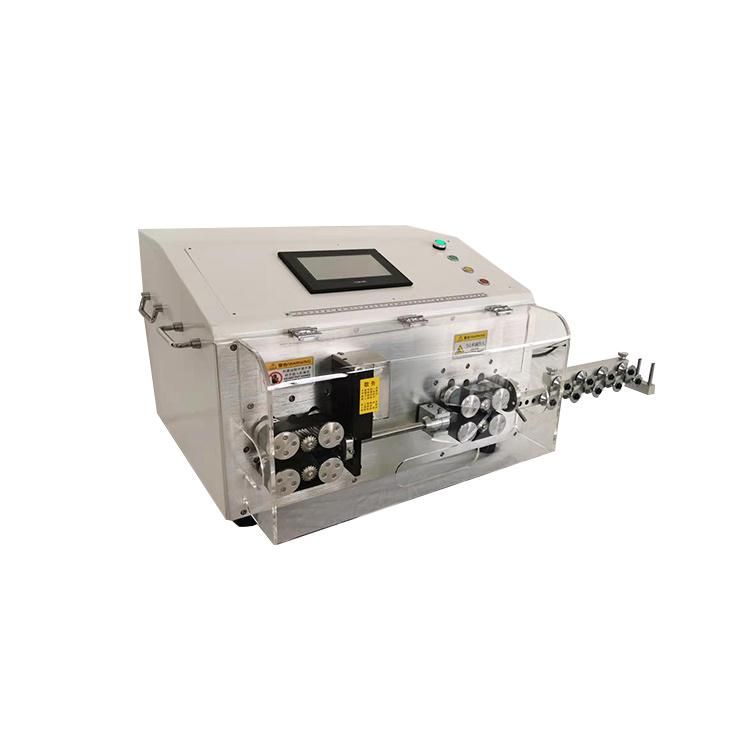

Product show:

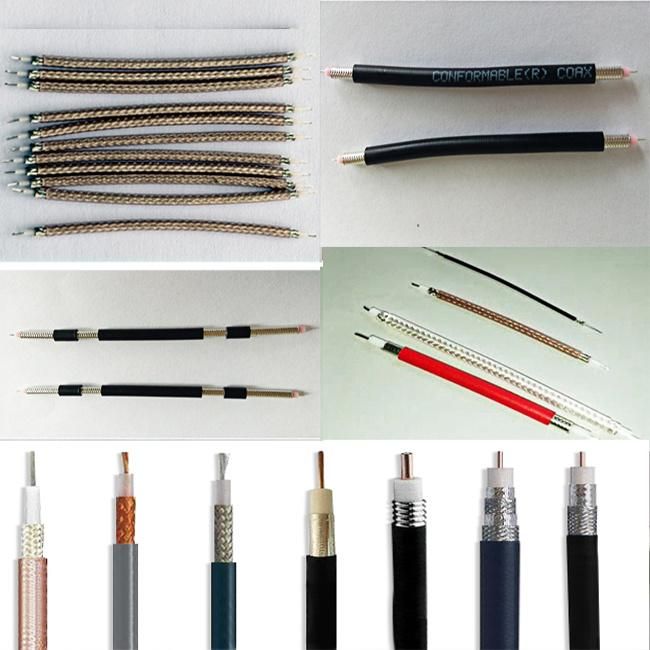

Machine processing wire samples:

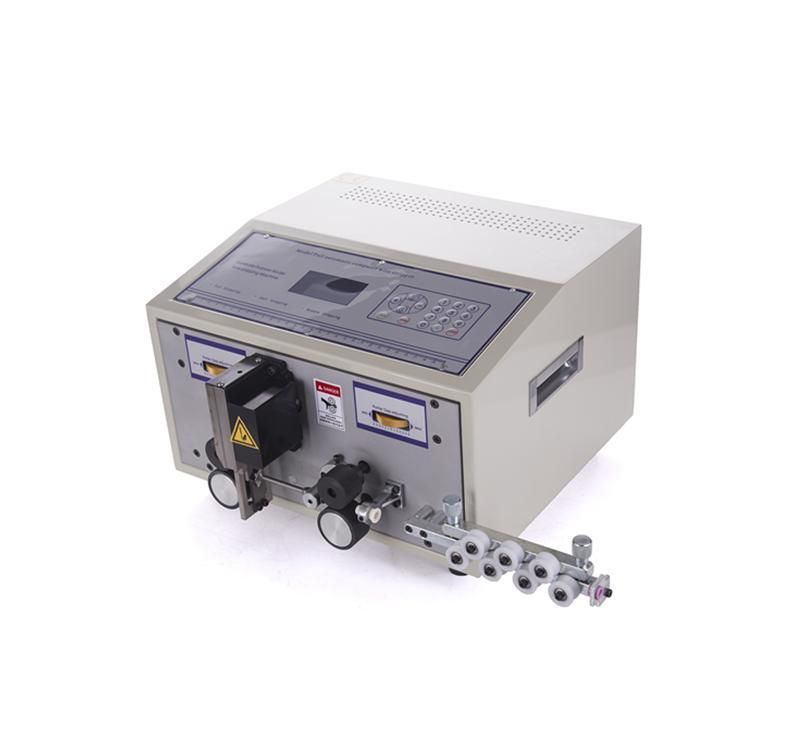

Related products:
FAQ:
1.How to order? Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms? We accept trade assurance order, T/T,L/C, western union, Paypal etc. 3.How long does the production time? Generally 3~7 days, if there's customized model or other request will be adjusted. 4.How do you packaged the products? Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
