150mm2 Cable Jacket Cutting and Stripping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Certification：CE
  • Automatic Grade：Automatic

Base Info

  • Model NO.：WL-150MAX3
  • Model：Wl-150max3
  • Power：2300W
  • Power Supply：220V,110V 50,60Hz
  • Display Mode：7-Inch Touch Screen Chinese and English Interface
  • Outer Diameter of Round Cable：15-23 mm
  • Applicable Core Area：Bvr2.5.0-70mm2 (BV35 mm2, Sheath Wire Outer Diamet
  • Maximum Cross-Area：150mm2
  • Air Pressure：0.8MPa
  • Maximum Diameter of Catheter：φ25
  • Stripping Accuracy：±0.2mm
  • Cutting Length：up to 400m
  • Stripping Length of Round Cable：Head Stripping: 1-800mm, Tail Stripping: 1-150mm
  • Dimensions：1060mm*640mm*1240mm
  • Weight：230kg
  • Transport Package：Carton
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：L=100mm, 2, 000-3, 000PCS,H
  • Package size per unit product：116.00cm * 74.00cm * 134.00cm
  • Gross weight per unit product：240.000kg

Description

230KG

The fully automatic big cable cutting and stripping machine is suitable for processing PVC cables, Teflon cables, silicone wires, fiberglass wires, etc. Available wire sizes: up to 150mm².

  • This machine is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys.

  • Suitable for cutting and stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc.

  • LCD screen, simple operation, convenient maintenance, stable performance, fast speed and high precision

  • Wire length can be set freely according to customer request

  • Max wire size: 150mm2

  • Drive mode: 8-wheel drive



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

150mm2 Cable Jacket Cutting and Stripping Machine

Product show:

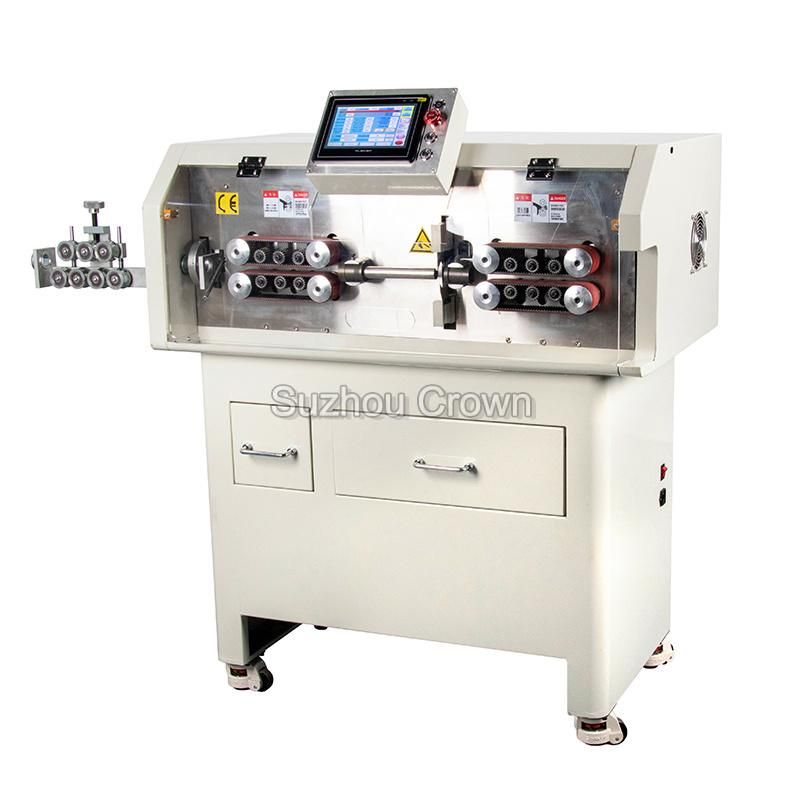

150mm2 Cable Jacket Cutting and Stripping Machine

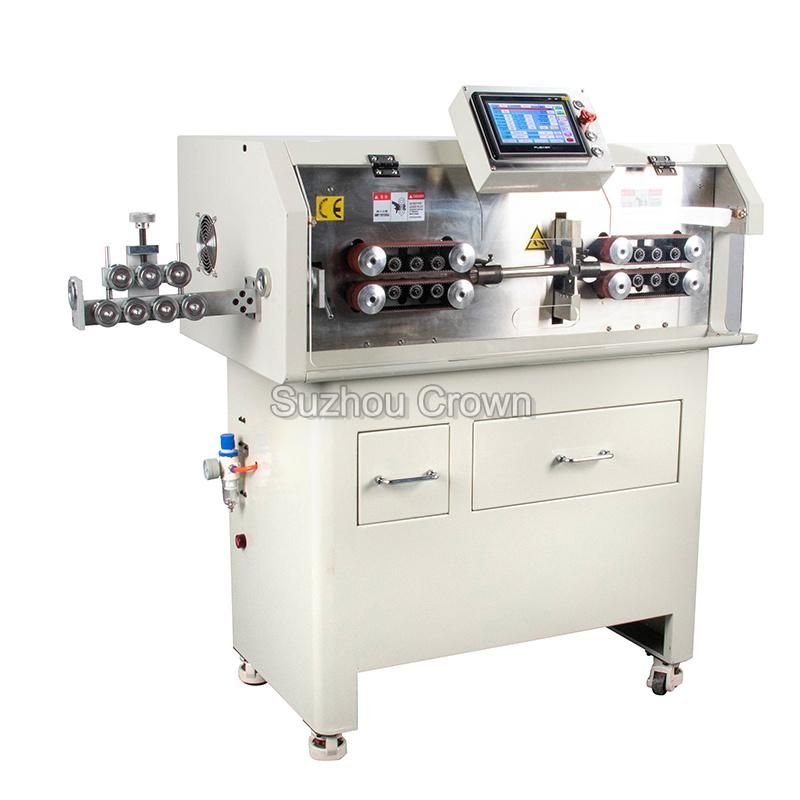

150mm2 Cable Jacket Cutting and Stripping Machine

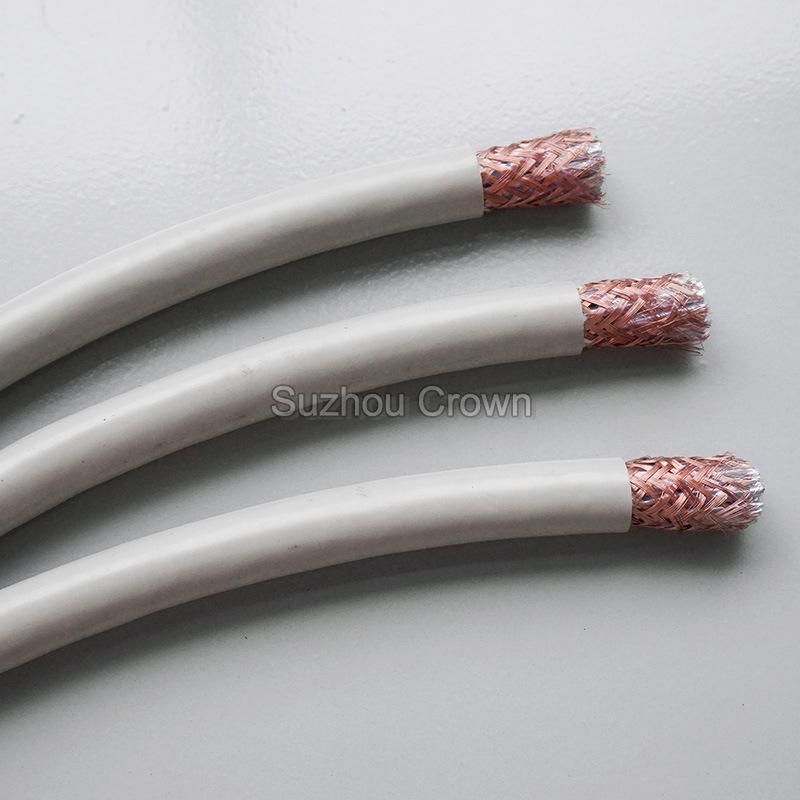

Machine processing wire samples:

150mm2 Cable Jacket Cutting and Stripping Machine

Related products:

150mm2 Cable Jacket Cutting and Stripping Machine

150mm2 Cable Jacket Cutting and Stripping Machine

FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.


Company information:

150mm2 Cable Jacket Cutting and Stripping Machine
Certificate:
150mm2 Cable Jacket Cutting and Stripping Machine

Contact:

Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
