FEP/PFA/ETFE Cable Extrusion Line
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Machine Name：FEP,PFA,ETFE Cable Extrusion Line
Base Info
- Model NO.：XJ-20,25,30,45
- Screw L/D Ratio：28:1
- Line Speed：Max.180m,Min
- Motor：Siemens
- Bearing：NSK
- Inverter：Yaskawa
- Electrical Components：Omron, Schneider
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
U-type single-layer water troughAccumulate length 0-100m 0-100m 0-100m 0-100m Capstan power 1kw Servo motor 2kw Servo motor 2kw Servo motor 2kw Servo motor Max speed 150m/min 150m/min 180m/min 180m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up power 3HP 3HP 4HP 3HP Take-up bobbin Φ100-200mm Φ200-300mm Φ200-300mm Φ300-400mm Size( L*W*H) 8000*1200*2100 8000*1400*2100 9000*1400*2100 12000*1800*2100 Total Weight 3.0 T 3.5T 4T 5.5T
1) Single bobbin active type pay-off machine
2) High frequency induction preheater
3) Wire straightening device
4) Main extruder
5) Electric control cabinet
6) Teflon special crosshead
7) Vacuum pumping and adjustment control device
8) Movable water trough
9) Single layer cooling water trough
10) High precision Horizontal wire accumulator
11) Single wheel type belt capstan
12) Double-shaft type take-up machine
13) Laser OD tester
14) Convex-concave tester
15) High frequency spark tester
16) Underwater capacitance tester
17) LED electronic display board
5. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

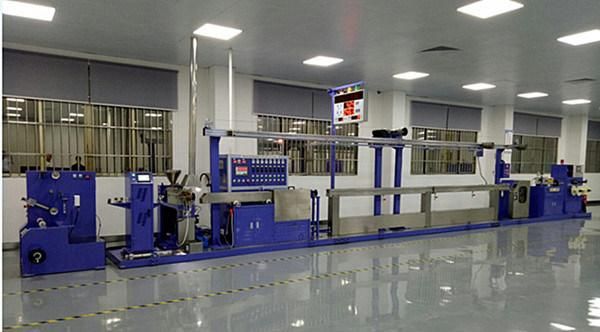

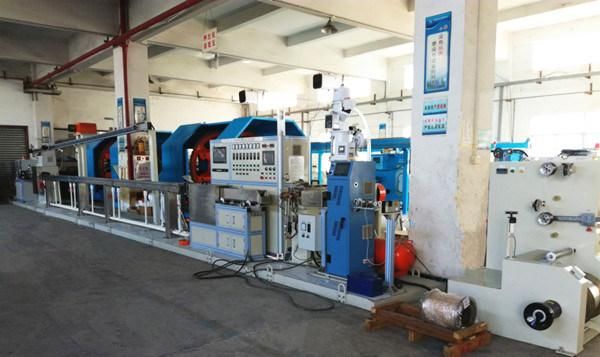

6. Machine pictures:
7.Packaging & Shipping:
8.Our Services:
1) Free technical consulation for machine configuration and model selection etc.;
2) Free training for machine operation and daily maintenance;
3) Improve the design to the operator's requirements;
4) Cost price for required parts in lifelong period;
5) Provide overseas technical support and services.
9. About us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited , and we also have passed ISO9001:2015.
10.FAQ:1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machiner, there are more than 6000 square meters of workshop and office space in our factroy; welcome come to visit our factory at any time!
2) How can we get to your factory to see the machines?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
