• Model NO.：HH-30,40,50,60
• Inventor：LG, Siemens
• Main Machine Power：8kw, 20kw, 35kw
• Wire Process Speed：Max:400m,Min
• Bobbin Size：300-500mm, 400-630mm, 500-1250mm
• Transport Package：Plastic Packing
• Specification：L: 22m to 26 m
• Trademark：hooha
• Origin：Dongguan, China
• HS Code：8479400000
• Production Capacity：6 PCS,Month

 Passive / active type shaftless pay-offPay-off bobbinΦ300-400mmΦ300-400mmΦ400-500mmΦ400-500mmScrew diameterΦ30mmΦ40mmΦ50mmΦ60mmScrew L/D ratio26:126:126:126:1Extrusion output 35kg/h 45kg/h60kg/h 80kg/hMain power7.5HP10HP15HP20HPWire specificationAWG36-30AWG32-26AWG30-24AWG28-20Cooling deviceU-type single-layer water troughAccumulate length0-200m0-200m0-200m0-200m Capstan power3HP3HP3HP5HPMax speed600m/min500m/min400m/min400m/minTake-up typeDouble shaftDouble shaftDouble shaftDouble shaftTake-up bobbinΦ400-500mmΦ400-500mmΦ500-630mmΦ500-630mmSize( mm)20000*1500*210020000*1600*210020000*1700*210023000*1800*2103Total Weight4.0T4.5T5.0T6.0T
Equipment Compositions:

1) Pay-off machine
2) Preheater
3) Straightening device
4) Main extruder
5) Electrical control cabinet
6) High-precision crosshead
7) Movable thermostatic water trough
8) Single layer cooling water trough
9) Horizontal wire accumulator
10) Double wheel capstan machine
11) Double axles take-up machine
12) Laser outside diameter tester
13) High-frequency spark tester
14) Matched LED display board
15) Matched tools and spare parts



Technical Parameters:

Brand of main parts:
1) Motor: Siemens
2) Driver: Yaskawa
3) Bearing: NSK, NACHI, ASCHI
4) Electric components: Omron
5) PLC controller: Siemens
6. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

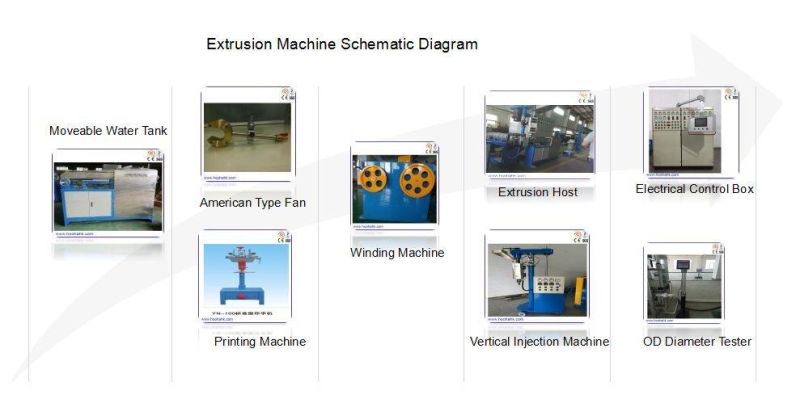

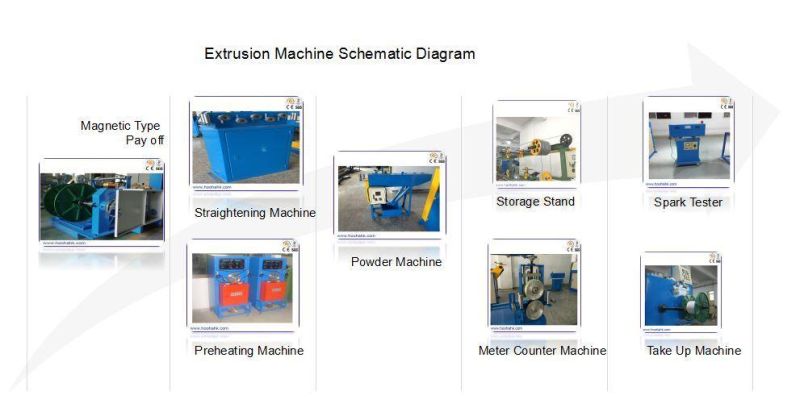

7. Machine pictures:

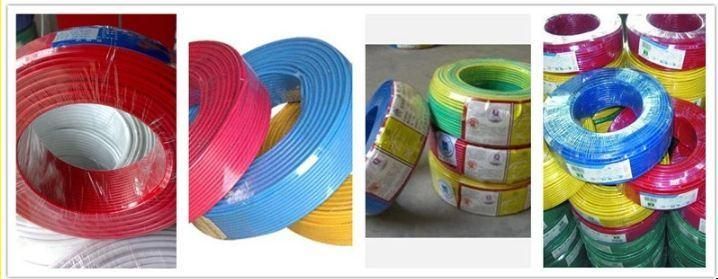

Finished Product:




After Service:

1).Delivery dates:45 days
2).Payment:Tt or l/c
3).Packing:Wood packing and pe plastic packing ensure the goods safety on the transportation.
4).Install and training service:2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

Contact Information:




Http:hoohaco.en.made-in-china.com
http:hoohaco.en.made-in-china.com
Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.


Why Choose Us?

1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.
7.Several years overeas experience
