• Model NO.：HH-70,80,90
• Inventor：LG, Siemens
• Wire Spec：1.5-12mm, 2-20mm, 3-25mm, 4-50mm
• Process Speed：Max: 500m,Min
• Extrusion Capacity：140kg,H, 200kg,H, 250kg,H
• Bobbin Size：400-630mm, 630-800mm
• Transport Package：Wooden Packing
• Specification：L: 22m-26m
• Trademark：HOOHA
• Origin：Dongguan, China
• HS Code：8479400000
• Production Capacity：5 Sets,Month

ActivePay off bobbin size(mm)Φ400-630Φ400-630Φ630-800Insulation diameter(mm)Φ0.5-122-20Φ3-25Extrusion capacity(kg/h)140200250Main machine power(hp)304050Take up-motor power(hp)555Wire accumulate length(mm)200Take-up line typeDouble axis 3hp
Why Choose Us?

1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.

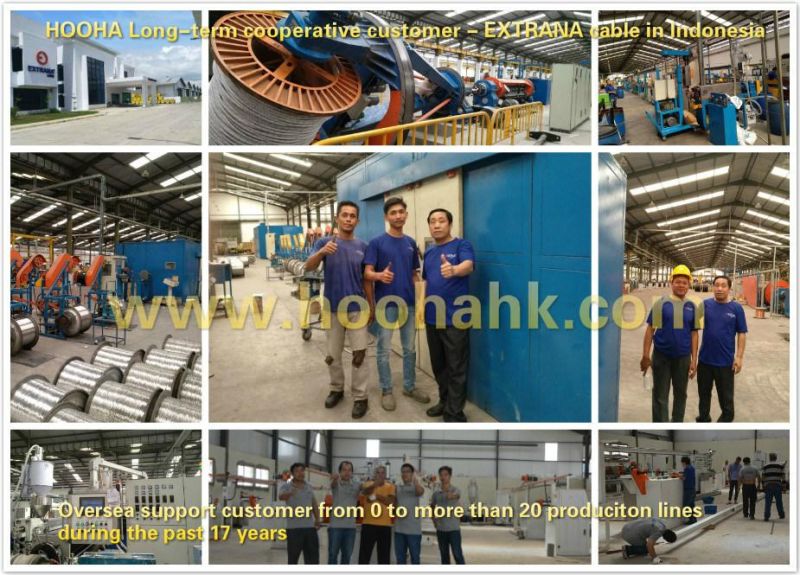

7.Several years overeas experience

Professional and Strong Manufacture and Sales Team:
 Team of serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history    ( year )zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering director Marketing and salesproject consulting 8sen YangUniversityEngineering translatorMarketing and salesproject consulting 5

Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF


Technique Specifications:

(1)APPLICATION:
         PVC Extruded Building Wire Machine is high speed extrusion line. And it makes the PVC, XLPE plastic compound for insulating and sheathing power cable, communication cable, magnetic wire, and so on.

One and two extruders: skin/stripe process
Co-extrusion: simultaneously filling and sheathing
Tandem extrusion: two extrusion groups, one for filling and one for sheathing
Three extruders : skin/stripe quick colour change


(2).SALIENT FEATURES

1.Quick stripe/skin colour change system
2.Taiwan design screw,insulation of high speed conductors with various thermoplastic materials
3.Multi-pass compartment and integrate motorization keep you Reduced line volume and high cooling capacity
4.take-up solutions on reels or coils
5.extrusion line with coiler online
6.high efficient pay-off to make sure operation non-stop
7.The mobile Extruder fixed to the ground and could easily be changed for any line direction.
8.PLC+Professional numerical control software, industrial computerized operation,Store,display & revise the technical parameters,wholly controlling,adjusting and monitoring the state of the producing.

SAFETY

Switch-off at overpressure
Disabling signal at under temperatures
Stop at over temperature
Motor power limit
Emergency stop
Monitoring of tolerances and alarms
Monitoring of sensors
 HOOHA  Performance tableItemConductor sectionInsalution thicknessCable diameterProduction speedUnitemm2mmmmm/minkm/hr10.750.62.345027210.62.54502731.50.62.84502742.50.73.245027540.83.937022660.84.43201971015.72501582 X 1.51.27.61307.893 X 2.51.29.21106.6104 X 41.211.5905.4114 X 61.212.5804.8
Optional:

1.Different take-up machine etc.
2.Flyer pay-off or other pay off machine.
3.Taiwan or Swiss brand crosshead.
4.Copper pre-heater.
5.Talc applicator.
6.Different brand Laser diameter gauge.
7.Coiler on line

After Service:

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online




Contact Information:

Http:hoohaco.en.made-in-china.com
http:hoohaco.en.made-in-china.com
Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.
