Wire Cutting and Outer Sheath Stripping Machine (WL-30)

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Wl-30

Base Info

  • Model NO.：WL-30
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Stripping Length：Head: 1-120mm; Tail: 1-240mm
  • Process Wire Type：Sheathed Cables, PVC Cables, etc.
  • Stripping Range：6-30mm2
  • Conduit Diameter：Dia.13
  • Cutting Length：1mm-99999.9mm
  • Cutting Tolerance：Within 0.002*L (L=Cutting Length
  • Max Catheter Diameter：Dia.16
  • Blade Cutting Tool Material：High Quality Imported High Speed Ste
  • Capacity：2300PCS,H
  • Drive Method：16-Wheel Drive
  • Gross Weight：130kg
  • Machine Size：63*73*71cm
  • Transport Package：Wooden Case
  • Specification：63*73*71cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：2300PCS,H

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm2Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max catheter diameterΦ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarks

The machine can be customized for processing special cables,
and the sample cable should be sent to us for testing.



Features:

This fully automatic cable cutting and sheath stripping machine is able to peel outer skin of single core and multi-core sheathed cables. The applicable wire sizes range from 6-30 sq mm.


  • Function: cutting and stripping

  • Applicable wire sizes: 6-30 square mm

  • Strip outer sheath of single conductor cables or multi-conductor cables

  • Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

  • Belt feeding wires, no embossing and scratches

  • Head stripping: 10-120mm

  • Tail stripping: 10-240mm


Packing & Shipping & Payment:

For small and light products packed by cartons,for large and heavy products packed by wooden

Wire Cutting and Outer Sheath Stripping Machine (WL-30)

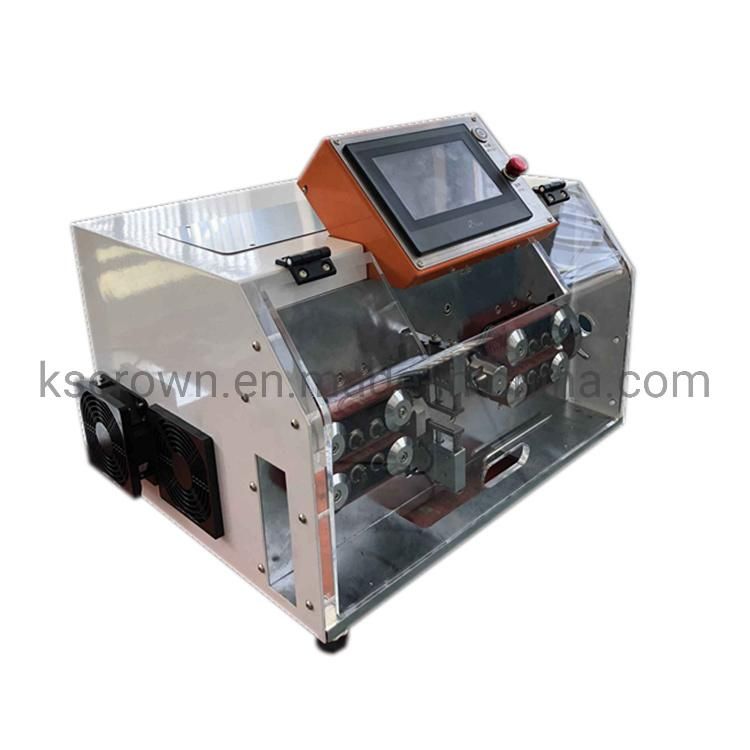

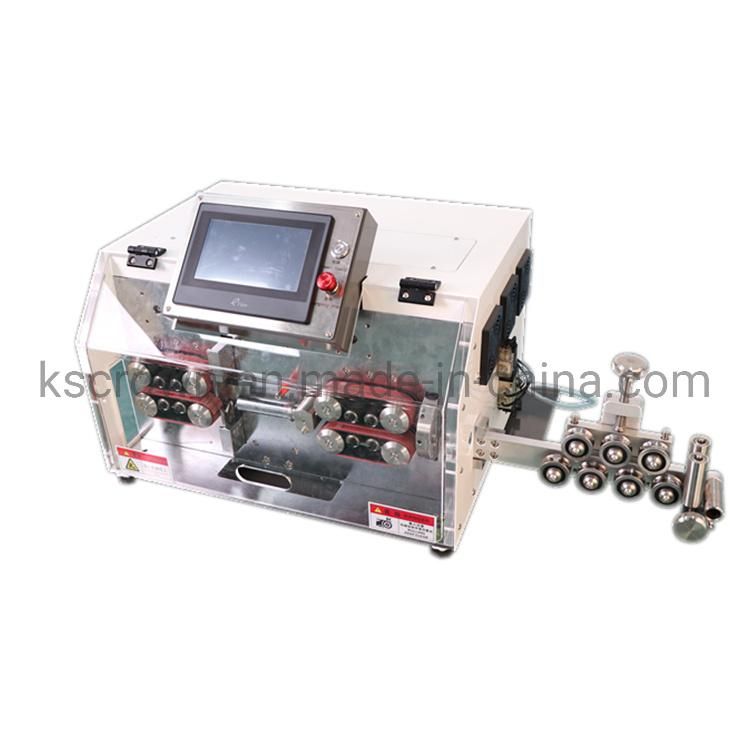

Product show:
Wire Cutting and Outer Sheath Stripping Machine (WL-30)
Wire Cutting and Outer Sheath Stripping Machine (WL-30)

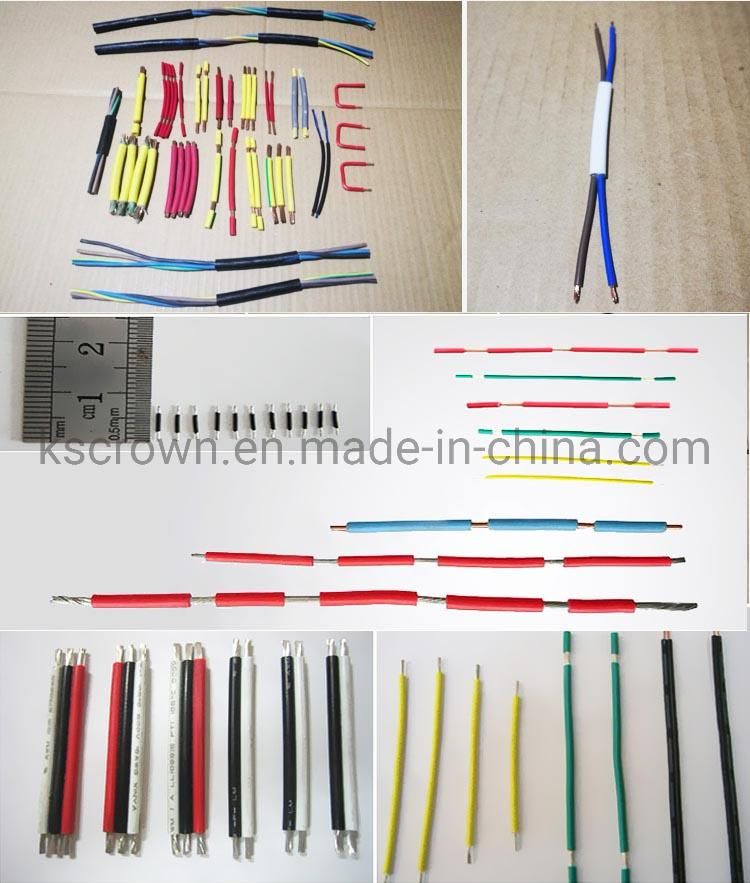

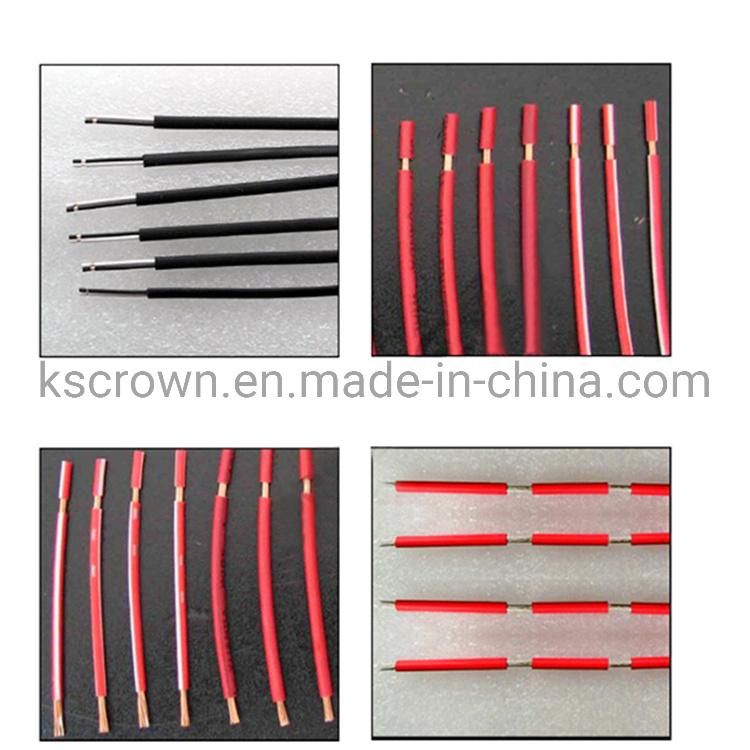

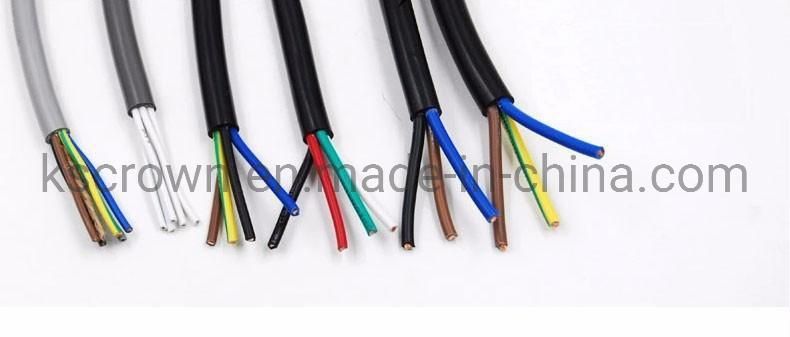

Machine processing wire samples:
Wire Cutting and Outer Sheath Stripping Machine (WL-30)
Wire Cutting and Outer Sheath Stripping Machine (WL-30)


Wire Cutting and Outer Sheath Stripping Machine (WL-30)
Wire Cutting and Outer Sheath Stripping Machine (WL-30)

Related products:
Wire Cutting and Outer Sheath Stripping Machine (WL-30)
FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
