Product Description

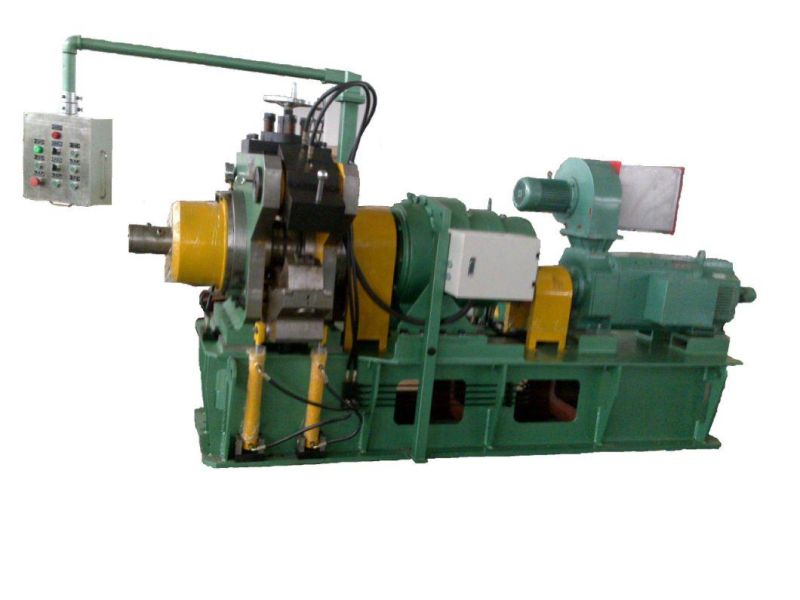

Copper  wire and small bus bar extrusion machine

Specifications
a. Specification of TJ300 Machinery:
Wheel Diameter:                    300mm
Main Motor:                       90KW/1000rpm
Rotation Speed:                     1-12 rpm
b. Feedstock
Material: Clean OF up casting copper rod
Rod Diameter:                      12.5 mm± 0.5 mm
Tensile strength                     <170N/ mm2
c. Product
Min-Max Cross Sectional Area:        10mm2~250mm2
Maximum Width:                    45 mm
Output:(average)                     200-450Kg/h
Flash level: (depending on section area and normal tooling)       1-5%
Spooler Flange:                      800mm
d. Plant Requirement
Power Supply:                    AC 380 V, 3 Phases, 50 Hz, 150KVA
Compression Air:                    0.7MPa, 2m3/min
Loop Cooling Water:                 >0.3MPa, 50m3/h
Space:                             25m X 10m

2. Key components


Name	Quantity
Feedstock pay-off	1
Feedstock straightener	1
TJ300 Continuous Extrusion Machine	1
Hydraulic and lubricate System	1
Water Cooling System	1
Product Length Counter	1
Take-ups Stand (800mm)	2
300Mpa EHV System	1
Electric Control System (include touch screen)	1
