• Model NO.：WL-30HN
• Certification：RoHS, ISO, CE
• Warranty：12 Months
• Automatic Grade：Semiautomatic
• Power Supply：220,110V, 50,60Hz
• Wire Size：1~30 Sq mm
• Jacket Stripping Length：Head: 10-150mm, Tail: 10-80mm
• Core Stripping Length：Head: 1-500mm, Tail: 1-50mm
• Cutting Length：1-99999.99mm
• Cutting Tolerance：0.002*L(L=Cutting Length)
• Wire Guide Diameter：16mm
• Blade Material：High Speed Steel
• Productivity：Multi-Core Sheath Cable 800PCS,H
• Drive Method：16 Wheels
• Display Screen：7′′ Touch Screen
• Twisting Length：7~15mm
• Transport Package：63*73*71cm
• Specification：130kg
• Trademark：Crown
• Origin：China
• HS Code：8479819000
• Production Capacity：1000set,Month
• Package size per unit product：96.00cm * 75.00cm * 143.00cm
• Gross weight per unit product：180.000kg

Basic Info.

Model NO. WL-30HN Certification RoHS, ISO, CE Warranty 12 Months Automatic Grade Semiautomatic Power Supply 220/110V, 50/60Hz Wire Size 1~30 Sq mm Jacket Stripping Length Head: 10-150mm, Tail: 10-80mm Core Stripping Length Head: 1-500mm, Tail: 1-50mm Cutting Length 1-99999.99mm Cutting Tolerance 0.002*L(L=Cutting Length) Wire Guide Diameter 16mm Blade Material High Speed Steel Productivity Multi-Core Sheath Cable 800PCS/H Drive Method 16 Wheels Display Screen 7′′ Touch Screen Twisting Length 7~15mm Transport Package 63*73*71cm Specification 130kg Trademark Crown Origin China HS Code 8479819000 Production Capacity 1000set/Month

Packaging & Delivery

Package size per unit product 96.00cm * 75.00cm * 143.00cm Gross weight per unit product 180.000kg

Product Description

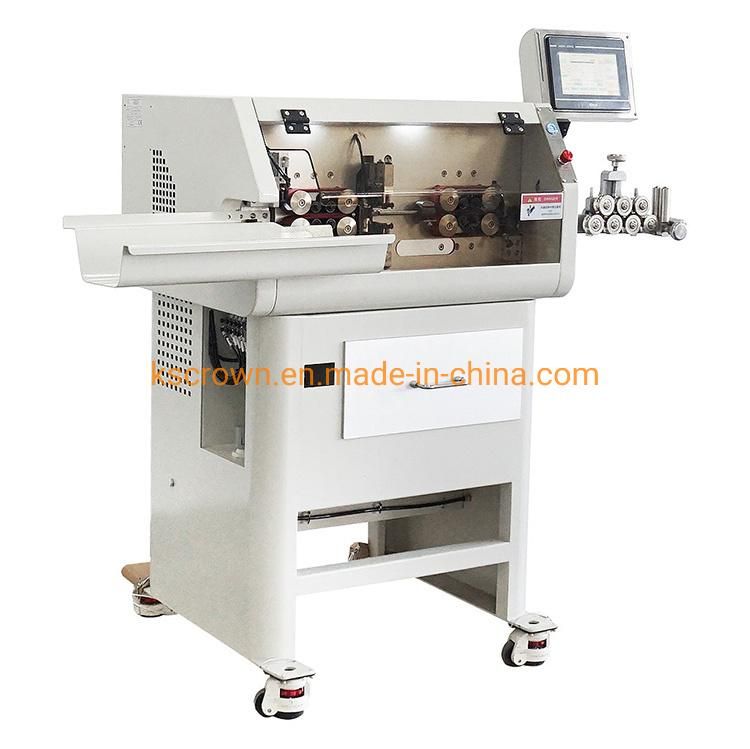

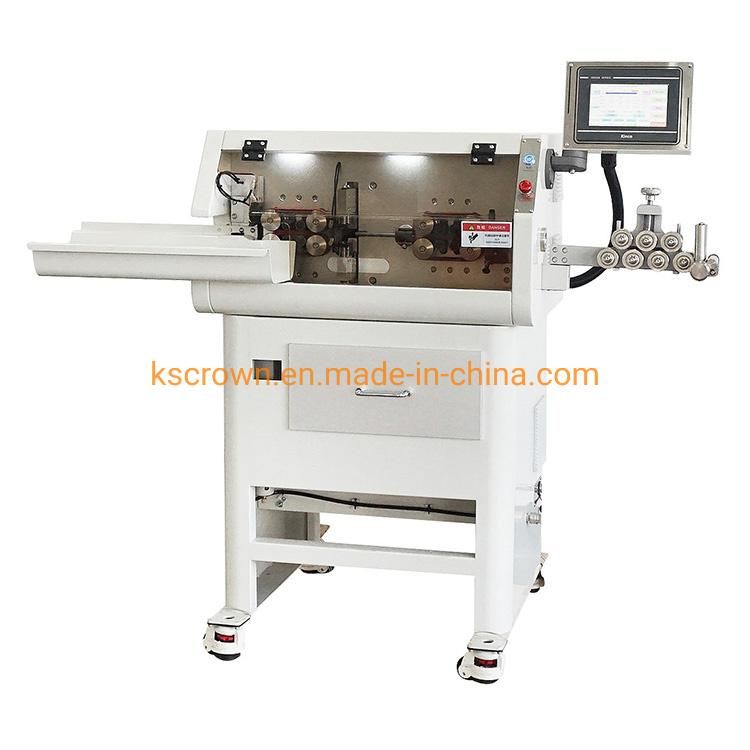

Fully automatic multi core cable stripping cutting twisting machine

Product Description:

The WL-30HT is designed for multi-cores cable full-automatic cutting and stripping both jacket
Introduction and inner cores. It supports max 7 cores sheathed cable processing.

1. One machine ok for different wire sizes
2. Long stripping length, max 200mm
3. Belt feeding for wire, no press marks and no scratches on cable

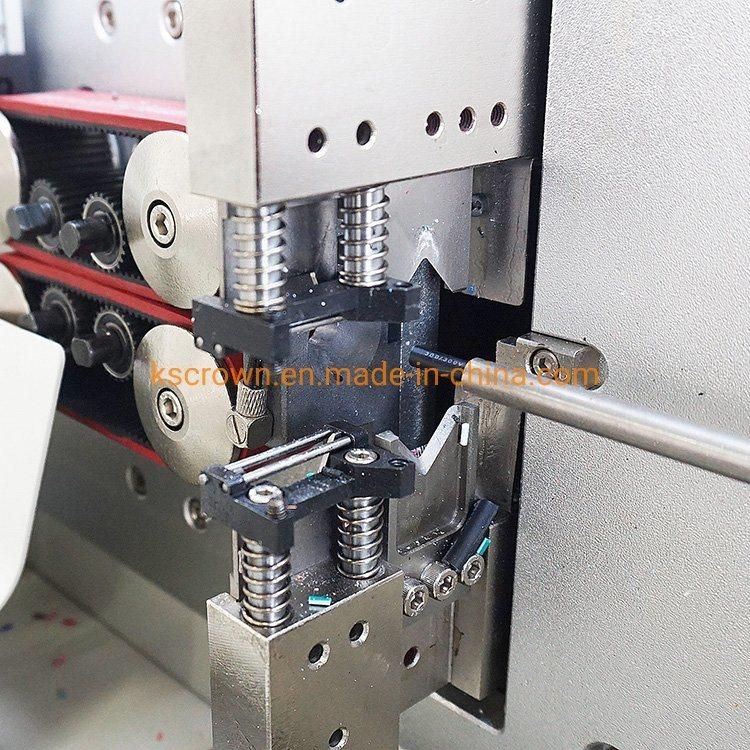

4. Adopts 16-wheels drive, silent hybrid stepper motor and servo tool holder, work stable

Specification:


Model	WL-30HN
Conductor Cross-Section	1-30mm²
Cutting Length	1-99999.99mm
Cutting Length Tolerances	≤(0.002*L) mm
Jacket Stripping Length	Head 10-150mm; Tail 10-80mm
Inner Core Stripping Length	Head 1-50mm; Tail 1-50mm
Wire Guide Pipe Diameter	Φ16mm
Production Rate	2300pcs/h (based on wire size); Multi-core heath wire 800pcs/h (based on wire size)

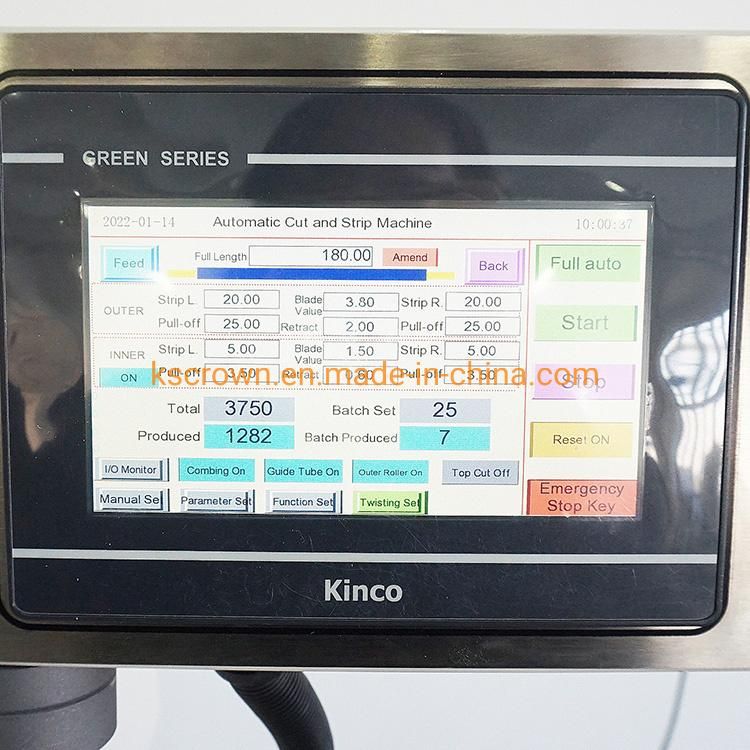

Display Screen	7 inch touch screen
Drive Method	16 wheels drive

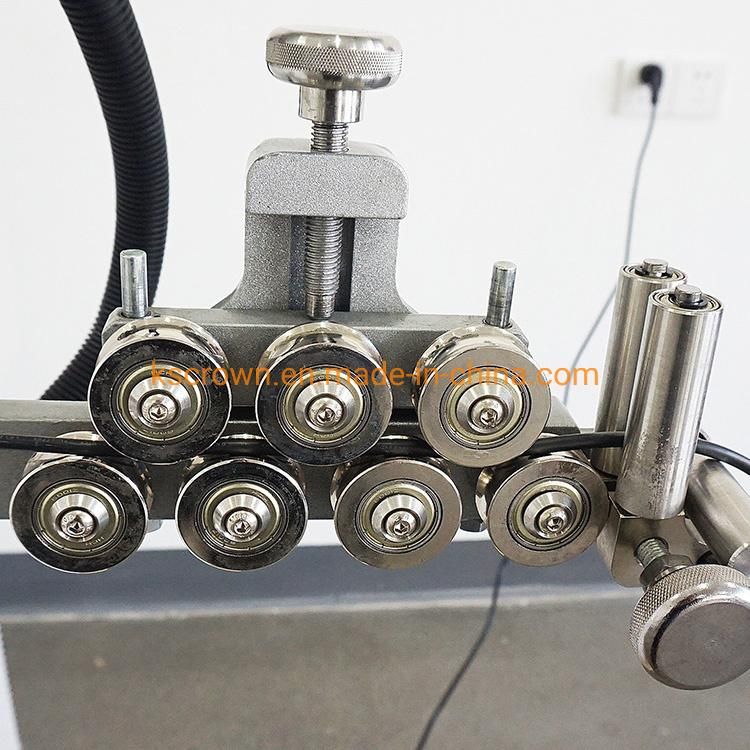

Wire Feed Method	Belt feeding wire, no indentation on cable
Tool Material	High quality imported high production rate steel
Weight	180kg
Dimensions	96*75*143cm

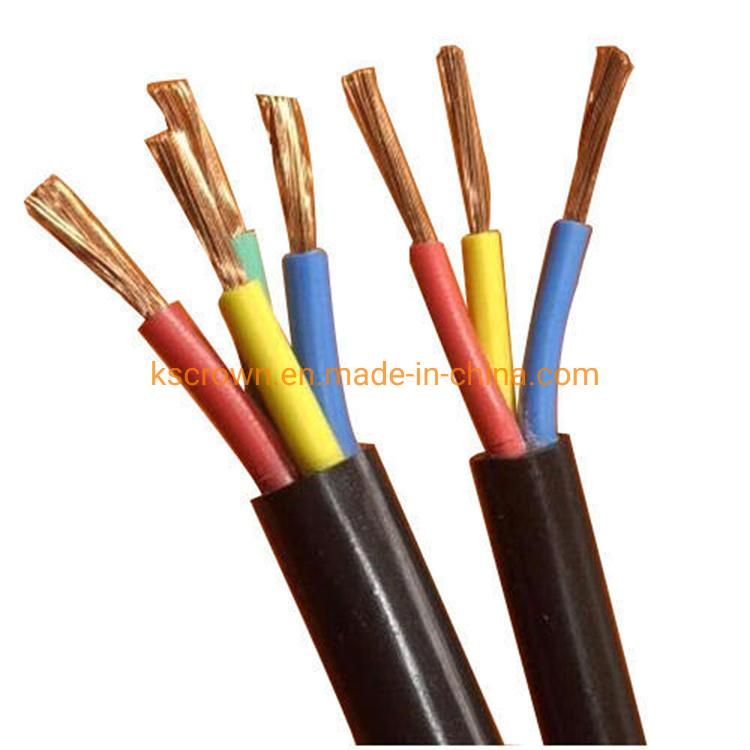

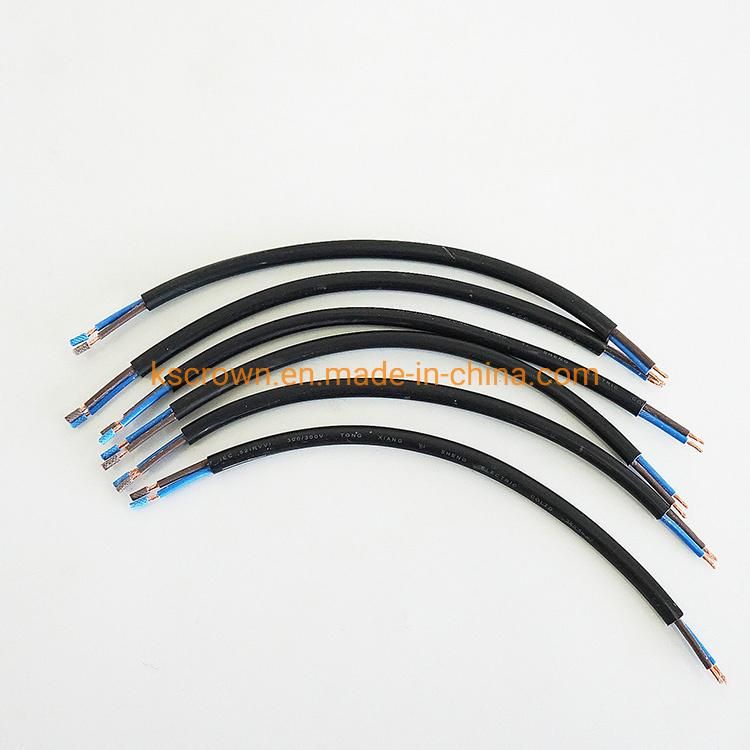

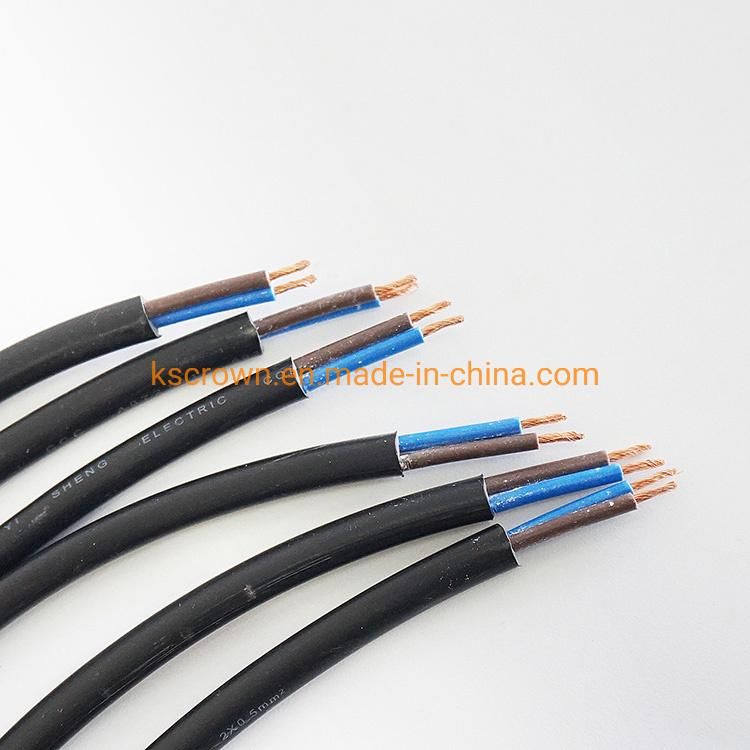

Application







Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Company info:




Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
