• Model NO.：WL-HT905
• Power Supply：220,110V, 50,60Hz
• Model：Wl-Ht905
• Air Pressure：0.3-0.6MPa
• Maximum Power：500W
• Core Wire Size：0.5-3.0 mm2
• Stripping Length：20-290mm
• Working Speed：1, 000-1, 200 PCS , Hour
• Transport Package：107*48*64cm
• Specification：140kg
• Trademark：Crown
• Origin：China
• HS Code：8479819000
• Production Capacity：1000set,Month

Basic Info.

Model NO. WL-HT905 Power Supply 220/110V, 50/60Hz Model Wl-Ht905 Air Pressure 0.3-0.6MPa Maximum Power 500W Core Wire Size 0.5-3.0 mm2 Stripping Length 20-290mm Working Speed 1, 000-1, 200 PCS / Hour Transport Package 107*48*64cm Specification 140kg Trademark Crown Origin China HS Code 8479819000 Production Capacity 1000set/Month

Product Description

Long And Short Cable Core Wires Stripping Machine Multi Conductor Wire Stripping Machine

Product Description:

Function :stripping inner cores ,different length
Multi-core long and short wire stripping machine can cut and strip core wires of different lengths according to the different needs of users. The cutting and stripping is completed by the servo system and high-precision linear module, which has the characteristics of high quality, high efficiency, safety and reliability, simple operation and simple maintenance.
Specification:

Model	WL-HT905
Power supply	AC220V±10%, 50Hz
Air pressure	0.3-0.6MPa
Maximum power	500W
Core wire size	0.5-3.0 mm2
Stripping length	20-290mm
Working speed	1,000-1,200 pcs / hour

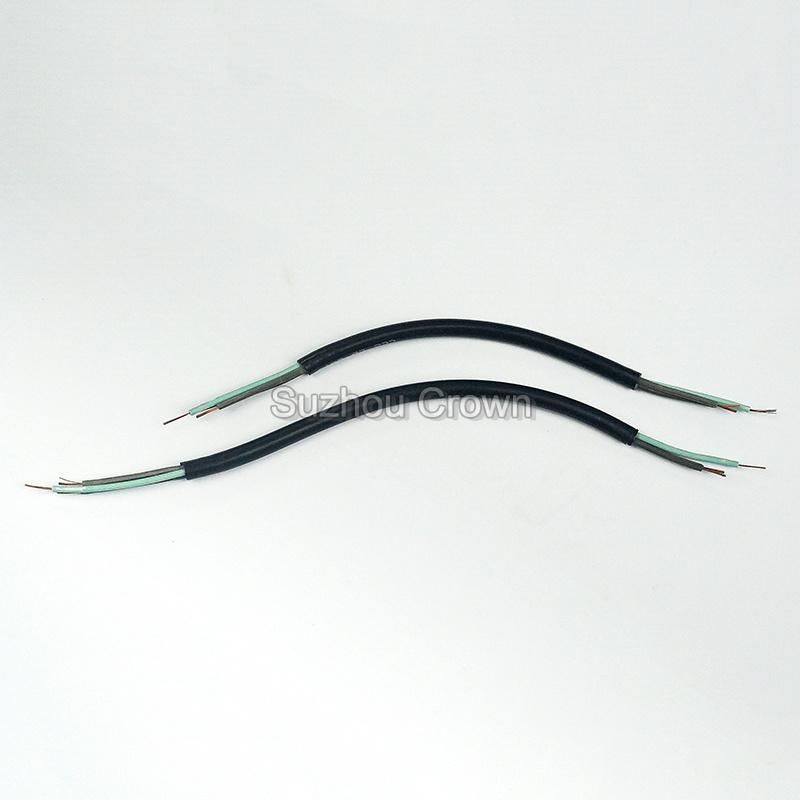

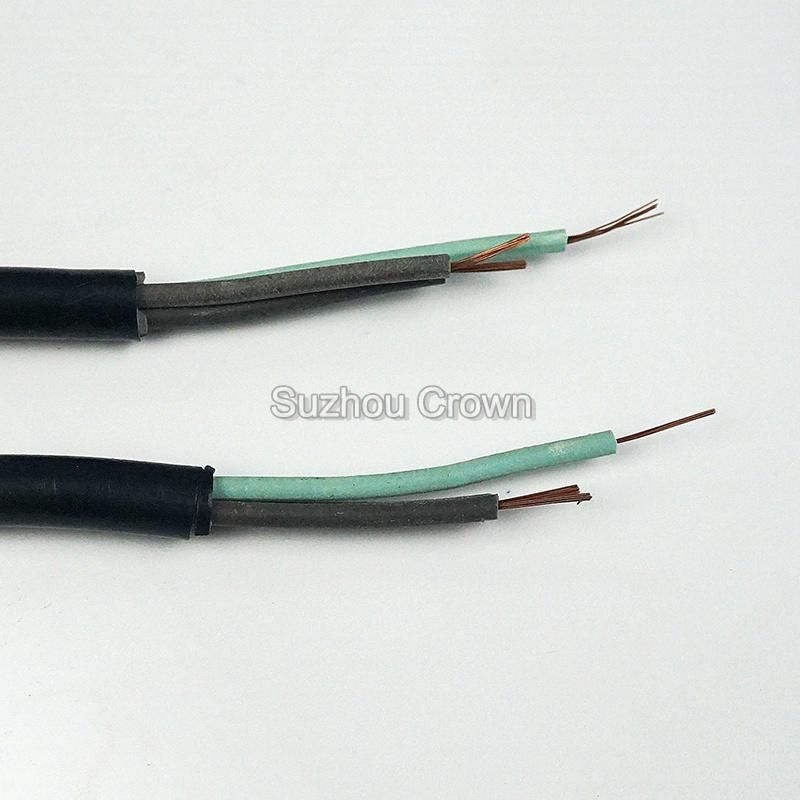

Application

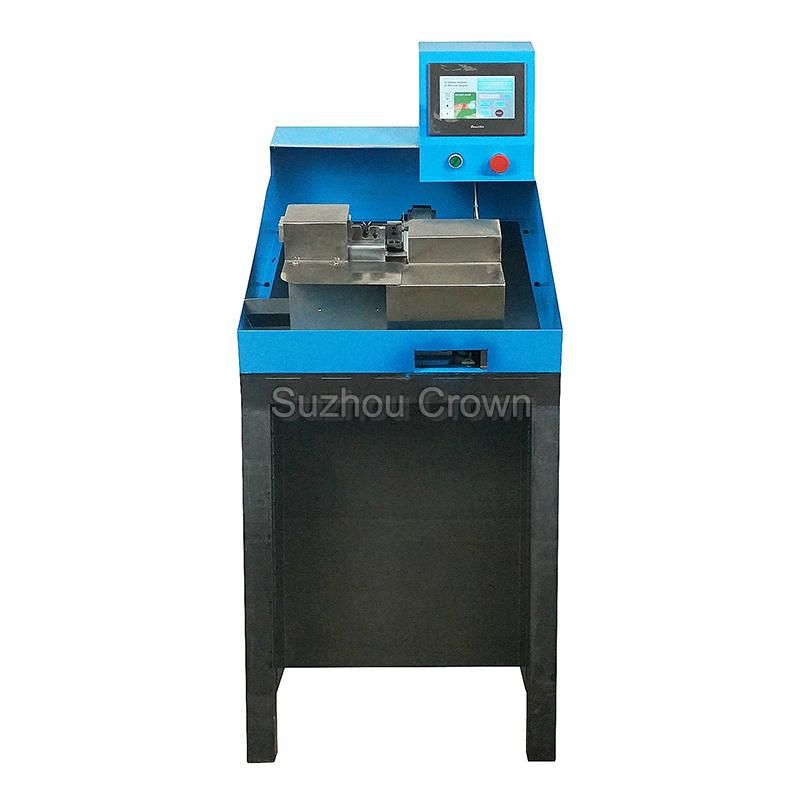

Machine:

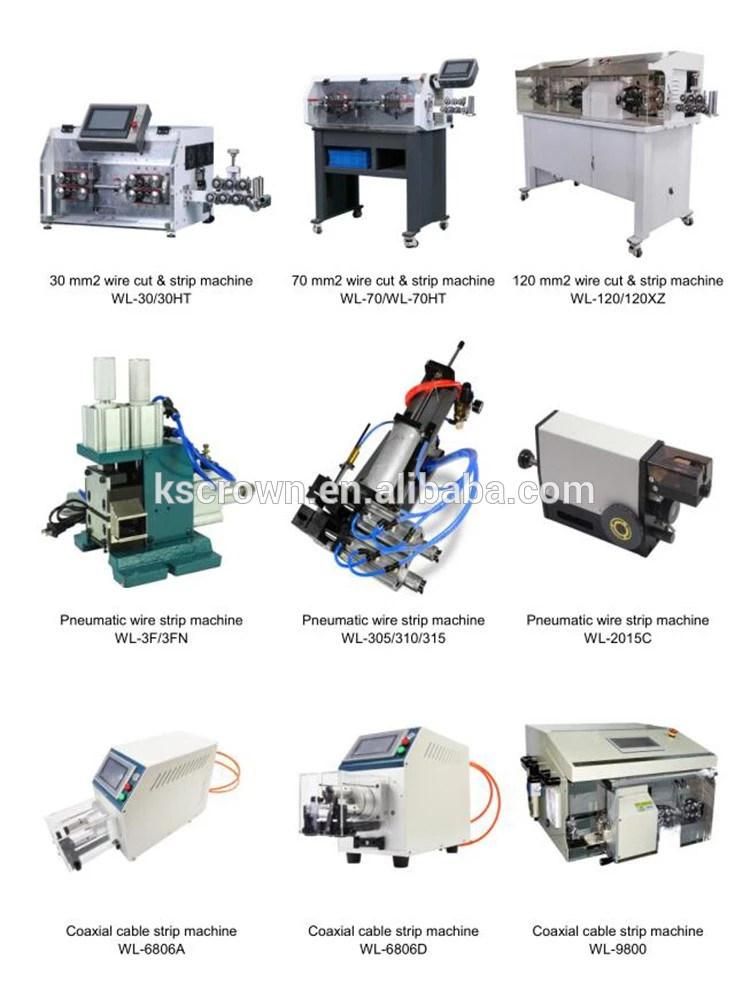

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.

Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Company info:


Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
