• Model NO.：A8 Reflow Soldering
• Max. Width of PCB：350mm
• Mesh Belt Width：400mm
• Transmission Net Height：880-20mm
• Transmission Type：Mesh
• Conveyor Speed：0-1000mm,Min
• Fixed Rail Side：Front Rail Fixed
• Total Power：38kw
• Starting Power：34kw
• Normal Power Consumption：4kw
• Transport Package：Vacuum Packing and Wooden Packing
• Specification：2800MM
• Trademark：jaguar
• Origin：China
• HS Code：8515190000
• Production Capacity：100pieces,Month

JAGUAR A8

Heating SystemNumber of heating zonesUP 8/BOTTOM 8Length of heating zones2800MMHeating modeUp:hot air; bottom: IRCooling ModeForce air


Conveyor SystemMax. Width of PCB350mmMesh belt width400mmTransmission DirectionL→R(or R→L)Transmission Net Height880±20mmTransmission typeMeshConveyor speed0-1000mm/minFixed rail sideFront rail fixed(option: rear rail fixed)







Control systemPower supply5 line 3 phase 380V 50/60HzTotal power38kwStarting power34kwNormal power consumption4KWWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPID close loop control & SSR drivingTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)(machine with PC)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temp. (extra-high/extra-low temp.)Board dropped alarmTower light:Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)4200×700×1320mmWeight800KGColorComputer gray

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

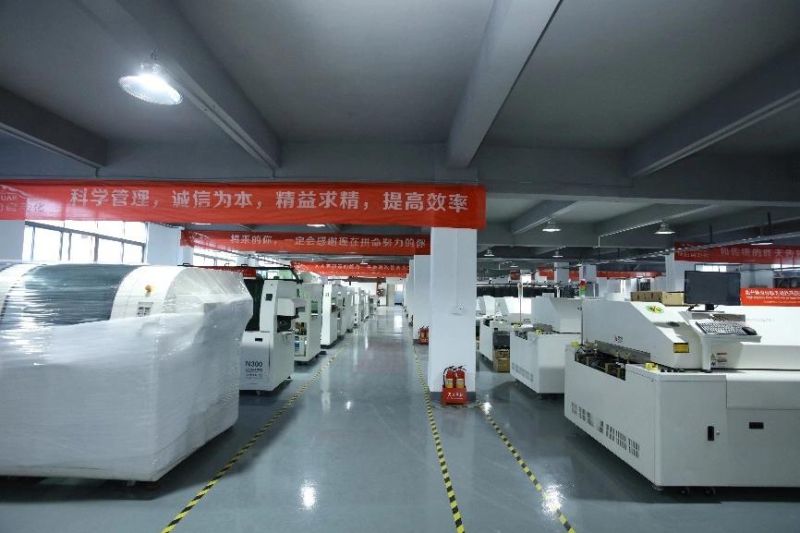

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications

Packing and shipping:

What we can do for you?
1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT
