Wl-Tt03/Tt01/Tt02 Digital Display Terminal Tensile Testing Equipment Automatic Wire Harness Pulling off Testing Device Manually Used in Pull Force Tester
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type:Electric
- Condition:New
- Certification:RoHS, ISO, CE
- Warranty:12 Months
- Automatic Grade:Semiautomatic
- Measure Mode:1000n
Base Info
- Model NO.:WL-TT03 ,TT01 ,TT02
- Type:Full Automatic Digital
- Stroke:50mm
- Model:Wl-Tt03
- Transport Package:Wooden Case Package
- Specification:600x185x280 mm
- Trademark:Dimension
- Origin:Kunshan City
- HS Code:8479811000
- Production Capacity:10000
Description
Basic Info.
Model NO. WL-TT03 /TT01 /TT02 Type Full Automatic Digital Stroke 50mm Model Wl-Tt03 Transport Package Wooden Case Package Specification 600x185x280 mm Trademark Dimension Origin Kunshan City HS Code 8479811000 Production Capacity 10000Product Description
Wl-Tt03/Tt01/Tt02 Digital Display Terminal Tensile Testing Equipment Automatic Wire Harness Pulling off Testing Device Manually Used in Pull Force Tester
Usage:

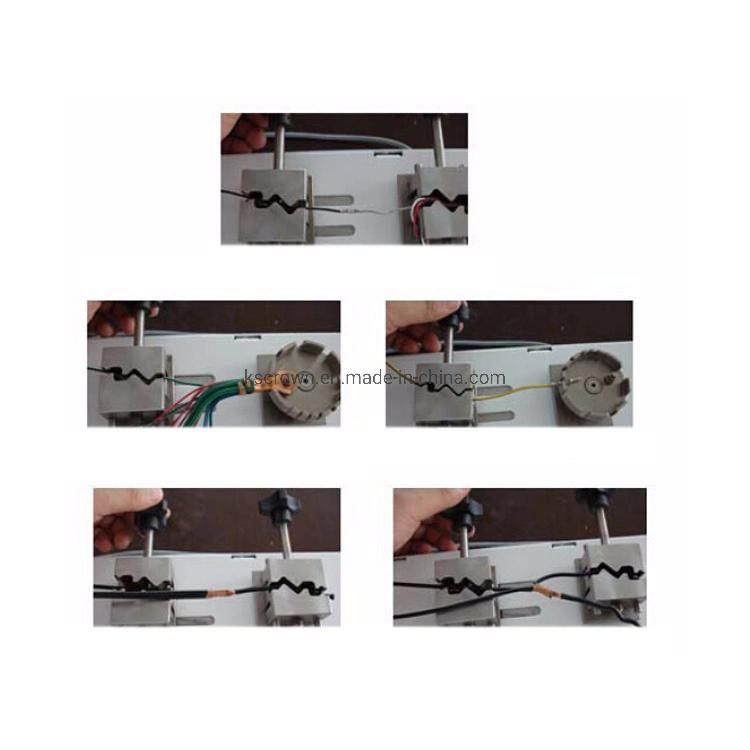

The machine is suitable for electric wire, electric wire tensile strength measurement,Wire and terminal crimping relay, terminal and the determination of insulator fixed force, the determination of connectors and connector relay. There are two options for hte tester.Also, 500N and 1000N option, price is different. Contact us directly for more detail.
Model | WL-TT03 |
Measuring range | 0~1000(N)or 0~100(Kg) |
Unit of measurement | kilogram(Kg)/Newton(N) |
Display | 6-digit LCD display |
Sensor accuracy | +0.2% (full scale) |
Power supply voltage | 220V/50Hz; 110V/60Hz |
Working environment | -10ºC~50ºC |
Maximum stroke | 43(mm) |

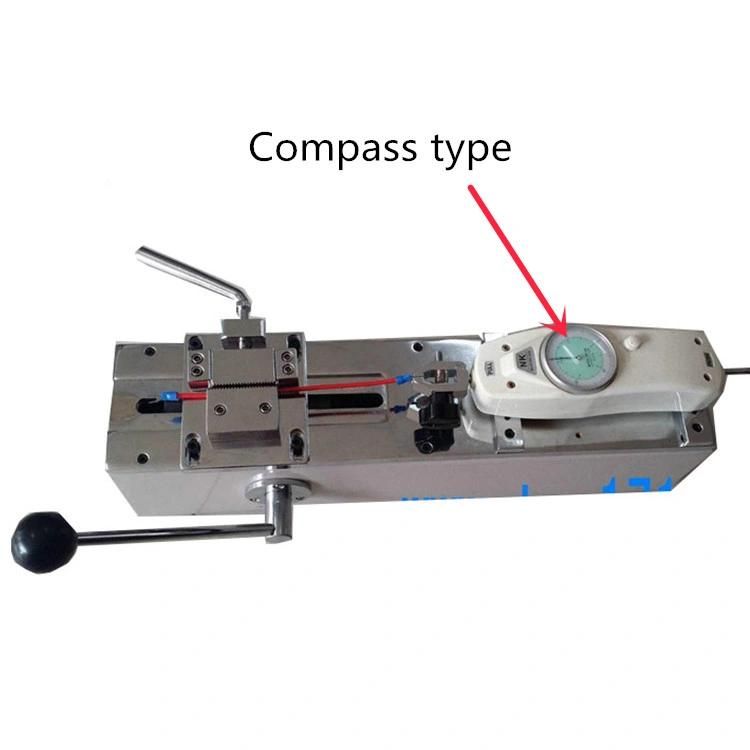

Product name | Pulling force tester pointer version | Pulling force tester digitalversion |
Model | WL-TT01 | WL-TT02 |
Measurement range | 0-500N/500-1000N | 0-500N/500-1000N |
Stroke | 50mm | 50mm |
Weight | 12KG | 12KG |
Mechanical dimensions | 45*26*16cm | 45*26*16cm |

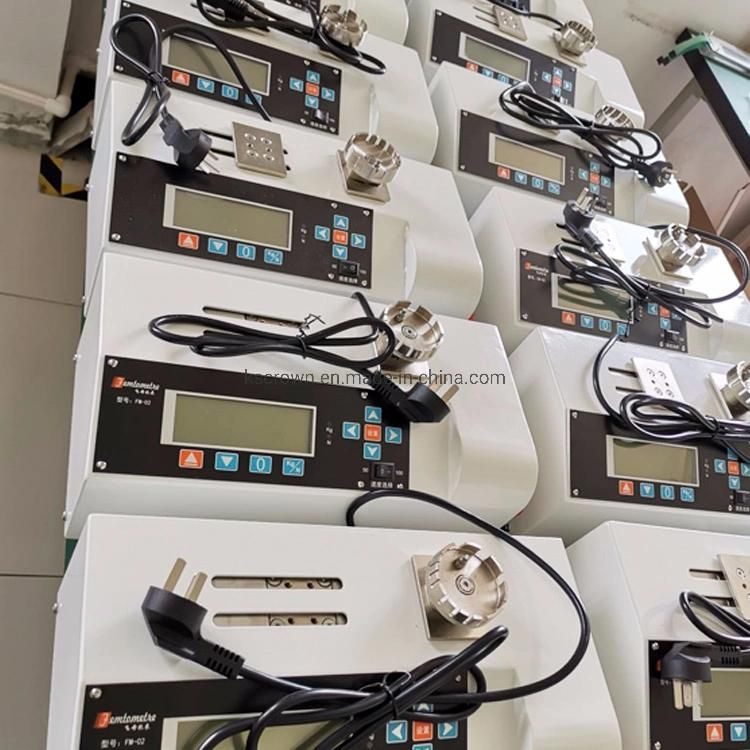

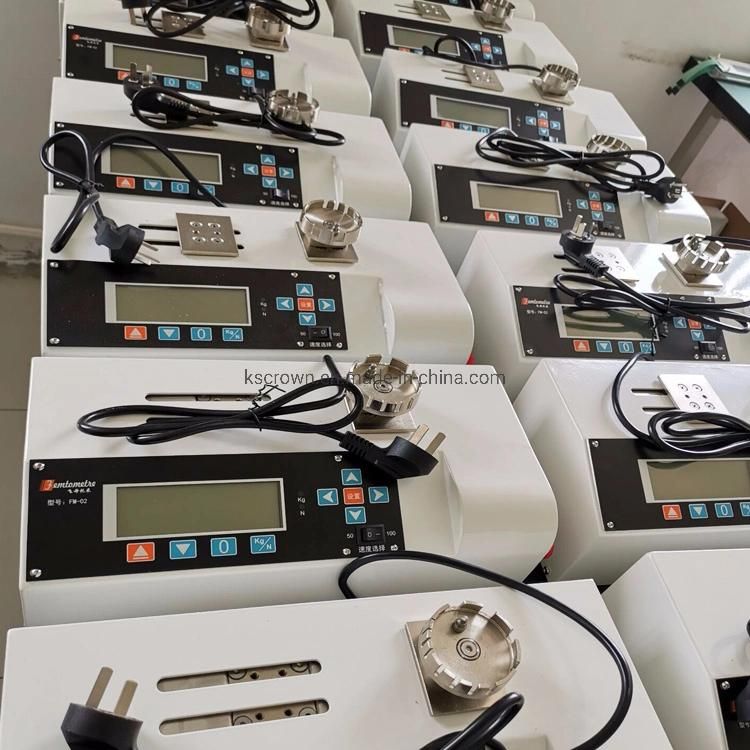

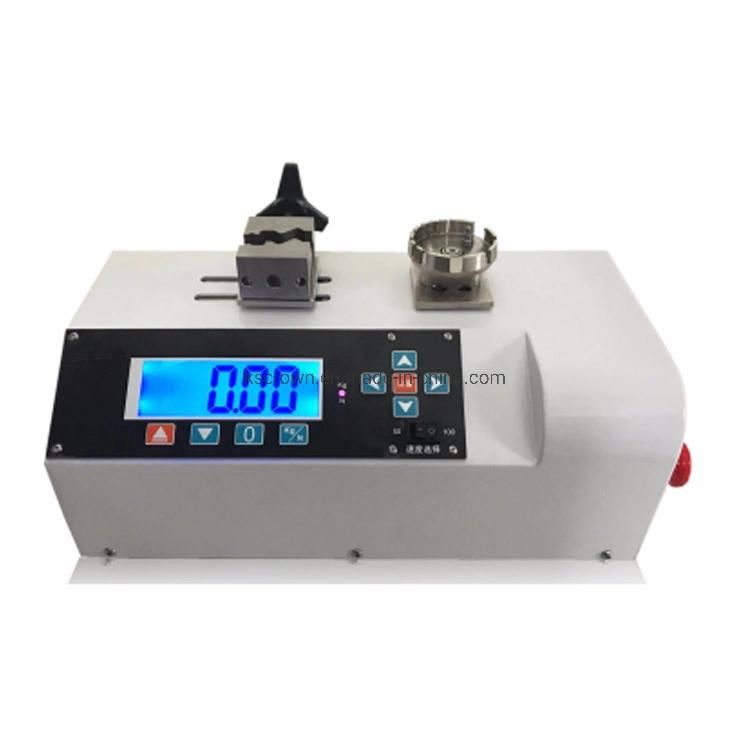

WL-TT03 Digital full automatic wire crimp force tester
WL-TT0 1 Digital full automatic wire crimp force tester

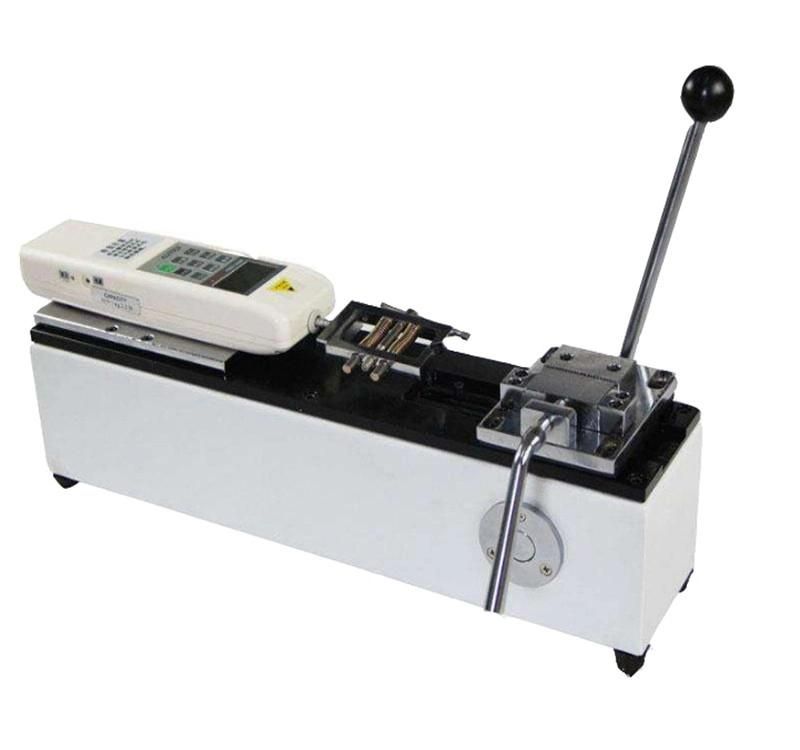

WL-TT02 Digital full automatic wire crimp force tester
