• Model NO.：WL-BPX2
• Stripping Length：0.1-100mm
• Cutting Length：1-100000mm
• Max. Stripping Layers：9 Layers
• Weight：24kg
• Power Supply：110V,220V,50Hz
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000

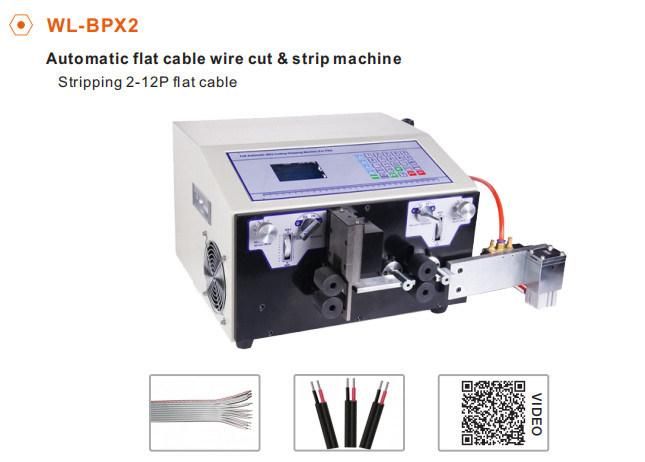

Model WL-BPX2Input VoltageAC220/50HzPower450WWeight32kgCutting Length0.1mm-999999.9mmCutting TolerancesCan be amendedTool materialTungsten steel//alloyStripping length0.1mm-999.9mmTwisted length1-14mm  1-14mmApplicable core area32#-16#Dimension(L*W*H)500*475*335 mmApplicable wireElectronic, cable, double, flat, RVB, etc.FeatureStay glue in the middle 14.5mm, both ends are semi-stripped and twisted.







Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

Sample: cut and strip wire automatically

Application



Company info:


Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidan
