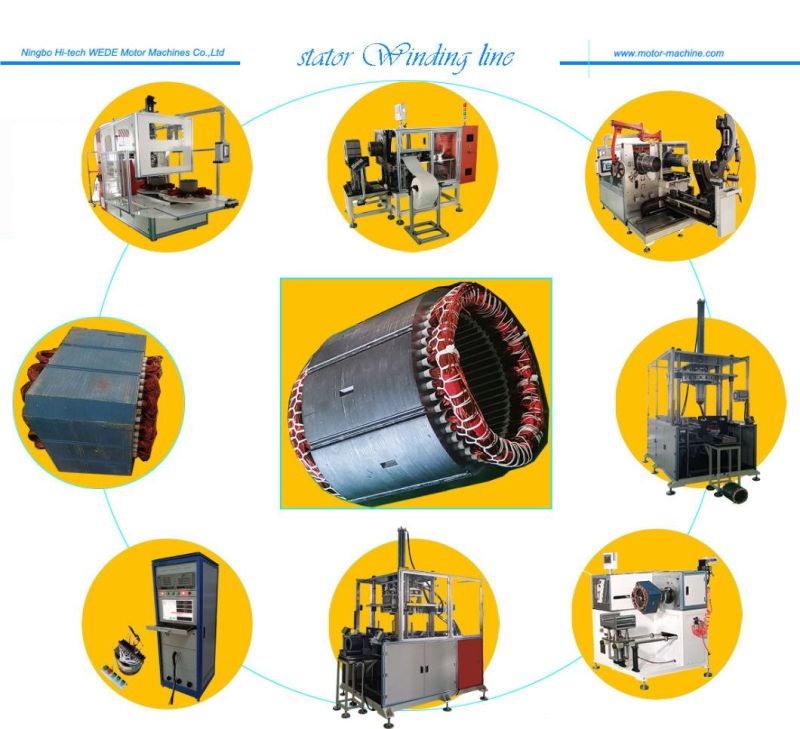

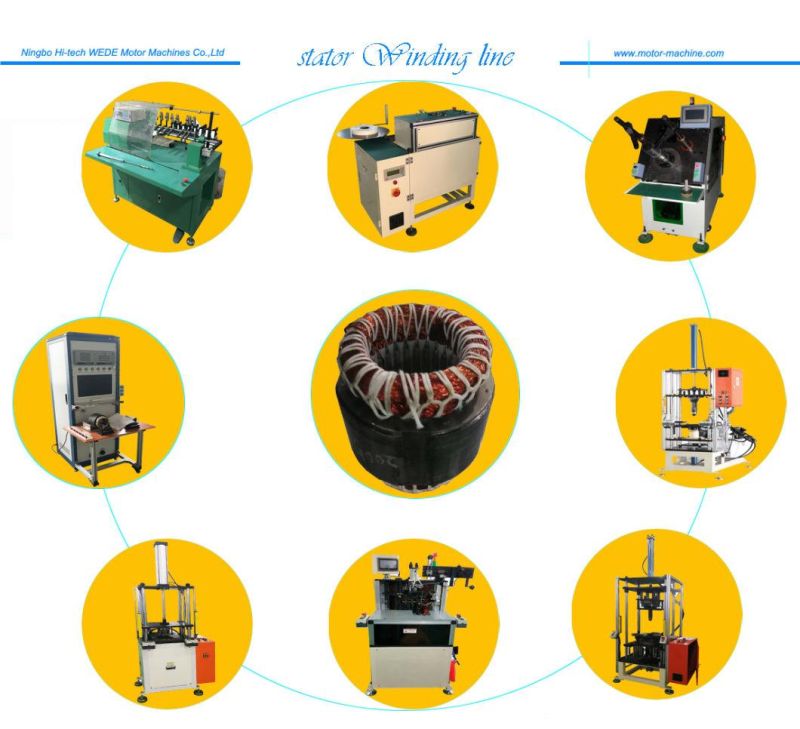

WD-01-LRX: single winding head 2 rotary stations WD-02-LRX:double heads 4 rotary stations WD-03-LRX:three heads 6 rotary stations (for water pump etc)*2 pcs (single phase motor, each phase per piece) WD-04-LRX:four heads 8 rotary stations (for table fan, pedstran fan etc) *3 pcs (one speed per piece) WD-06-LRX:six heads 12 rotary stations They have standard size machine (refer to the following table size, and following stator winding line picture 1 )and also the extend size machine (refer the following stator winding line picture 2), for size OD 330, 191 height Item WD-01-LRX WD-02-LRX WD-03-LRX WD-04-LRX WD-06-LRX wire OD 0.15-1.2mm 0.15-1.2mm 0.15-1.2mm 0.15-1.2mm 0.15-1.2mm max number of parellel wire 10 2 2 2 2 max core length 200mm 150mm 120mm 80mm 60mm max no-load speed 1000rpm 2000rpm 1500rpm 2300rpm 2300rpm appropriate wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire power supply 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz power 5KW 10KW 7KW 10KW 14KW air supply 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa weight about 1500kgs about 2000kgs about 1600kgs about 2500kgs about 2500kgs size 2000x930x2300mm 1700x900x2400mm 1500x1300x1900mm 1575x1580x2400mm 1600x1500x1900mm Picture 1 Picture 2
