AC Induction Motor Winding Inserting Machine
NINGBO HI-TECH WEDE MOTOR MACHINES CO., LTD.- Voltage:380V
- Warranty:12 Months
- Processing Part:Motor Coils Winding
- Condition:New
- Automatic Grade:Automatic
- Mould Life:300,000-1,000,000 Shots
Base Info
- Model NO.:WD-2021-WQX
- Type:High-Speed Stranding Machine
- Driven Type:Motor
- Transport Package:Ply-Wooden Case
- Trademark:WEDE
- Origin:China
- HS Code:8479811000
- Production Capacity:100PCS,Year
Description
WD-02-LRX:double heads 4 rotary stations
WD-03-LRX:three heads 6 rotary stations (for water pump etc)*2 pcs (single phase motor, each phase per piece)
WD-04-LRX:four heads 8 rotary stations (for table fan, pedstran fan etc) *3 pcs (one speed per piece)
WD-06-LRX:six heads 12 rotary stations
They have standard size machine (refer to the following table size, and following stator winding line picture 1 )and also the extend size machine (refer the following stator winding line picture 2), for size OD 330, 191 height

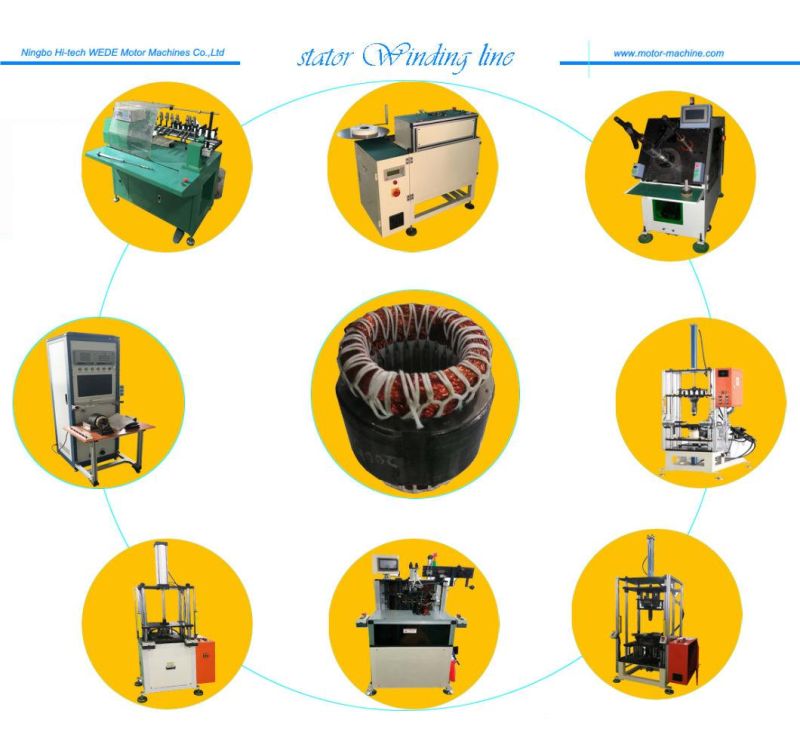

Picture 1

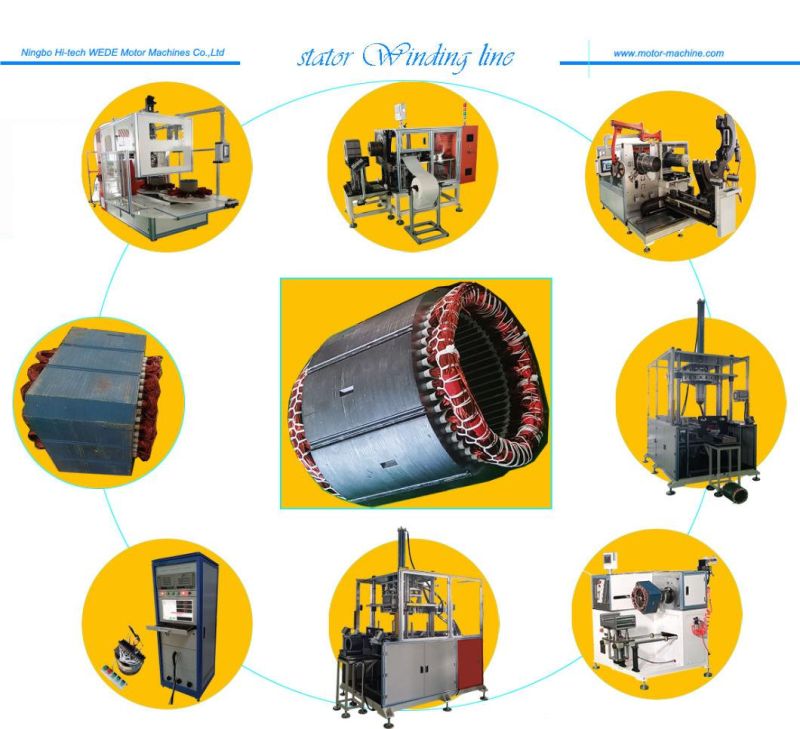

Picture 2
