• Model NO.：XJ30,40,50,60
• Production Name：Cable Machine Quality Power Electrical Extruder
• Usage：Use for Condutor Single Layer
• Wire Specification：AWG30-AWG24
• Extrusion Material：HDPE, PP, PU, PVC, Sr-PVC(Xj-50)
• Screw Parameter：L,D Radio: 26-28:1
• Highest Outoput：60kg,H
• Highest Wire Speed：600m,Min
• Power：15HP
• Precision：High Precision
• Heating System：Electric
• Function：High Temperature Resistance
• Automatic Grade：Automatic
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Aactive type shaftless pay-offPay-off bobbinΦ300-400mmΦ300-400mmΦ400-500mmΦ400-500mmScrew diameterΦ30mmΦ40mmΦ50mmΦ60mmScrew L/D ratio26:126:126:126:1Extrusion output 35kg/h 45kg/h60kg/h 80kg/hMain power7.5HP10HP15HP20HPWire specificationAWG36-30AWG32-26AWG30-24AWG28-20Cooling deviceU-type single-layer water troughAccumulate length0-200m0-200m0-200m0-200m Capstan power3HP3HP3HP5HPMax speed600m/min500m/min400m/min400m/minTake-up typeDouble shaftDouble shaftDouble shaftDouble shaftTake-up bobbinΦ400-500mmΦ400-500mmΦ500-630mmΦ500-630mmSize( mm)20000*1500*210020000*1600*210020000*1700*210023000*1800*2103Total Weight4.0T4.5T5.0T6.0T4. Brand of main parts:
    1) Motor:  Siemens
    2) Inverter:  YASKAWA
    3) Belt: Switzerland
    4) Bearing:  NSK
    5) Electric equipment: Siemens and Omron.
5. Safety performances:
   1) Switch-off at overpressure
   2) Disabling signal at under temperatures
   3) Stop at over temperature
   4) Motor power limit
   5) Emergency stop
   6) Monitoring of tolerances and alarms
   7) Monitoring of sensors

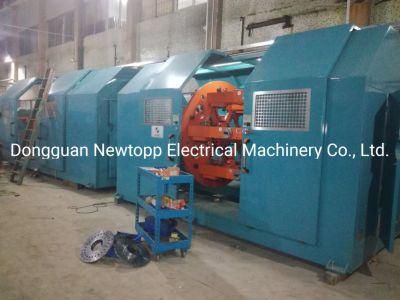

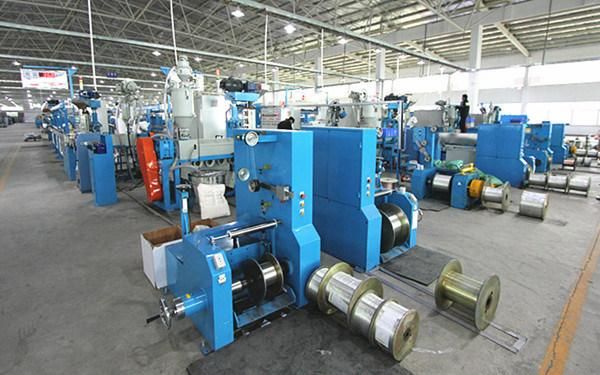

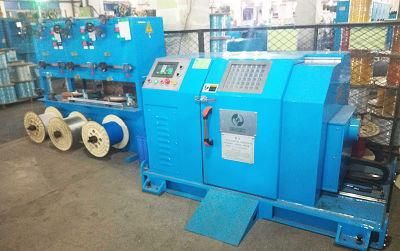

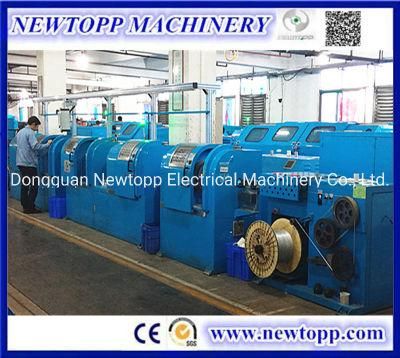

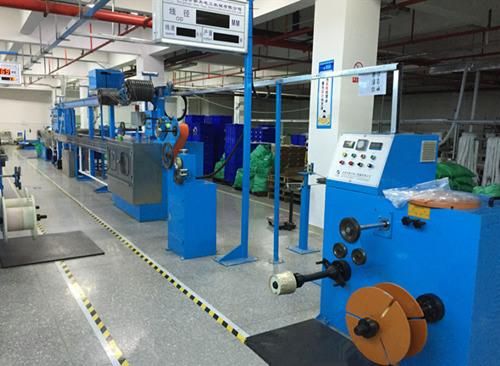

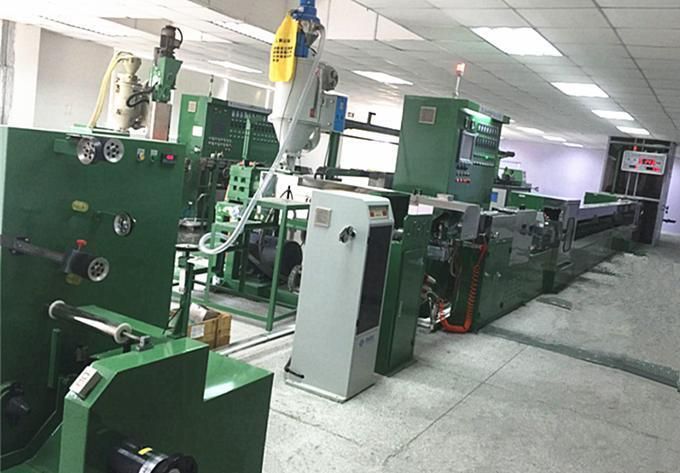

6. Machine pictures:

7.Packaging & Shipping:

8.Our Services:
Pre-sale Services:
  1) Spot investigation and professional guiding suggestions;
  2) Equipment configuration, model selection reference and technical consultation;
  3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
  1) Invite customers to inspect and take trials of finished machines;
  2) Provide the training of the maintenance knowledge;
  3) Improve the design to the operator's requirements.
After-sale Services:
  1) Regular maintenance and product tracking service;
  2) Cost price for required parts in lifelong period;
  3) Provide quality and efficient after-sale service life long time.

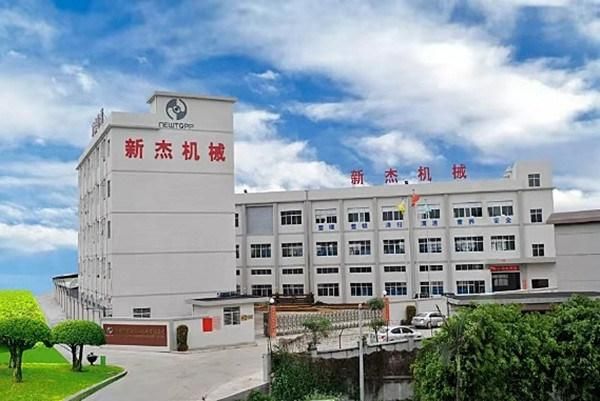

9. Company Informations:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.

11.FAQ
 1) Are you a manufacturer or trading company?
  We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machinery ; our machines are exported to      different countries, such as Italy, Russia, Iran, Japan, India, Korea,Thailand, Malaysia, Vietnam etc, and have received recognition and praise from          customers.
2) How can we get to your factory to see the machines?
  Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
  Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
  Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory;
  Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
