• Model NO.：Jaguar N200
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Item：Wave Soldering Machine
• Number of Heating Zones：1
• Length of Heating Zones：800mm
• Weight：500kg
• Body Size：1400*1200*1560mm
• Outside Size：2100*1200*1560mm
• Air Supply：0.5MPa
• Control Method：PLC+Press Key
• Heating Mode：Hot Air
• PCB Width：30-250mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Jaguar
• Origin：China Shenzhen
• HS Code：85151900
• Production Capacity：150PC,Month
• Package size per unit product：225.00cm * 135.00cm * 176.00cm
• Gross weight per unit product：800.000kg

Basic Info.

Model NO. Jaguar N200 Warranty 12 Months Automatic Grade Automatic Installation Vertical Item Wave Soldering Machine Number of Heating Zones 1 Length of Heating Zones 800mm Weight 500kg Body Size 1400*1200*1560mm Outside Size 2100*1200*1560mm Air Supply 0.5MPa Control Method PLC+Press Key Heating Mode Hot Air PCB Width 30-250mm Transport Package Wooden Case Specification CE Trademark Jaguar Origin China Shenzhen HS Code 85151900 Production Capacity 150PC/Month

Packaging & Delivery

Package size per unit product 225.00cm * 135.00cm * 176.00cm Gross weight per unit product 800.000kg

Product Description

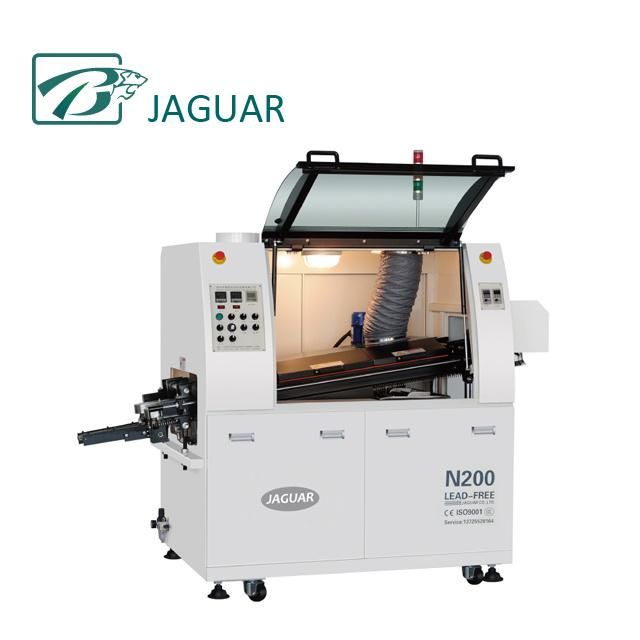

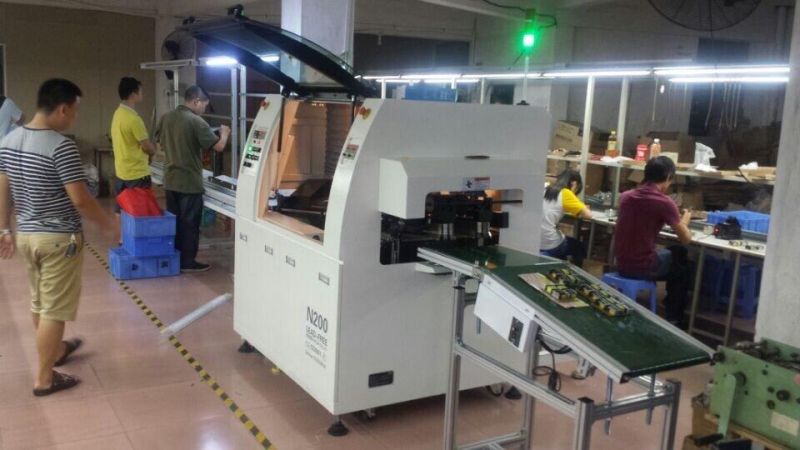

JAGUAR Lead Free Wave Solder Machine Jaguar N200

• Stepper motor driven flux sprayer, spray range is selective, save more flux.
• Flux recovery container drawer design, easy to clean.
• Hot air 2 preheater 500mm
• Dual wave solder pot, easy clean structure

Specification:

Model No	JAGUAR N200
Number of heating zones	1
Length of heating zones	800mm
Body size	1400*1200*1560mm
Outside dimension	2100*1200*1560mm
Weight	500KG
Total/running power	16KW/3KW
Air supply	0.5MPa
Preheating method	IR(standard)
Preheating power	220V 5KW
Control  method	Press key +PLC
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	180KG
Solder pot temperature	300ºC
Solder power	380V 6KW
Solder temp. control method	PID&SSR
Wave crest drive power	500W 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	30-250mm
Convey  speed	300-1200mm/min
Convey  direction	L→R (R→L optional)
Convey   angle	4-6 º
Flux pressure	3-5 bar
Flux capacity	6L

Introduction:
1.Automatic power system, frequency converter control, automatic board input system.

2..Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating(IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
