• Model NO.：JAGUAR M6,8
• Heating Mode：Hot Air
• Cooling Mode：Force Air
• Mesh Belt Width：350,400mm
• Transmission Direction：L-R(or R-L)
• Transmission Net Height：880+-20mm
• Warming Time：About 20mins
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Transport Package：Wooden Box
• Specification：CE
• Trademark：JAGUAR
• Origin：China
• HS Code：8515190000
• Production Capacity：100 Sets,Month

JAGUAR M6JAGUAR M8

Heating SystemNumber of heating zonesUP 6/BOTTOM6UP 8/BOTTOM8Length of heating zones2500MM2900MMHeating modehot air hot air Cooling ModeForce airForce airMesh belt width350/400mm350/400mmTransmission DirectionL→R(or R→L)L→R(or R→L)Transmission Net Height880±20mm880±20mmTransmission typeMesh and chainMesh and chainRange of rail width0-250/300mm0-250/300mmConveyor speed0-1000mm/min0-1500mm/minAuto/manual LubricationstandardstandardUpper hood methodManual(option:auto)Fixed rail sideFront rail fixed(option: rear rail fixed)Components highTop and bottom 25mm







Control systemPower supply5line 3phase 380V 50/60HzTotal power28kw38kwStarting power28kw28kwNormal power consumption4KW5kwWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPLC & PCTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temperature. (extra-high/extra-low temp.)Board dropped alarmTower light: Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)3600×1000×1490mm4300*1000*1490mmWeight700KG900kgColorComputer graykeywords: reflow solder, solder reflow, reflow solder paste, reflow soldering at home, reflow soldering temperature,diy reflow soldering, infrared reflow soldering,reflow solder defects,reflow soldering, reflow soldering method, solder paste reflow,solder reflow temperature, solder reflow technology handbook,diy reflow oven, reflow oven temperature, reflow oven diy, T962a reflow oven, reflow oven profiler, T962 reflow oven review, what is reflow oven,reflow soldering process, reflow process, reflow soldering processes, smt reflow process, solder reflow process, smd machine, smd reflow, smd reflow oven, reflow smd,smd machines, lead free solder, lead solder, solder lead free, lead free solder bar, solder paste lead free, surface mount technology, surface mount, surface mount technology process, surface mount equipment, surface mount machine, surface mount oven, surface mount machines, smt process,smt technology, smt production,smt equipment manufacturers, smt machinery, smt assembly equipment, smd soldering machine, smd soldering tools,smd soldering oven, what is smd soldering, PCB soldering, PCB oven, pcb reflow, auto soldering machine, solder for electronics, soldering electronics, reflow oven, smt machine, smt equipment


Packaging:

following is for example:

We promise we will ship the goods within 30 work days.

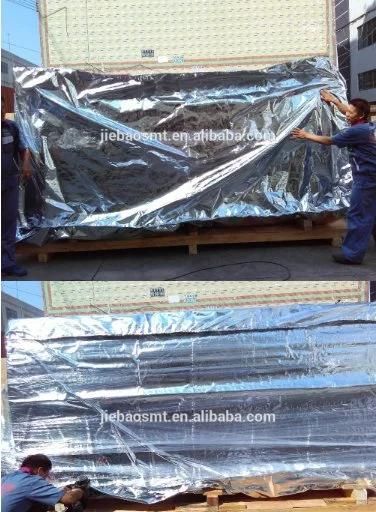

As usual, we will pack the machine in vacuum bag inside, and wooden box outside, everytime we are ready for ship, we will take photoes and send to our customers for confirm.

Here i attach some pictures about we make for our customer.

1. Machine will be tested and aging before shipment.

Machine pass the test and aging, than will be ready for shipment, simple pack first.

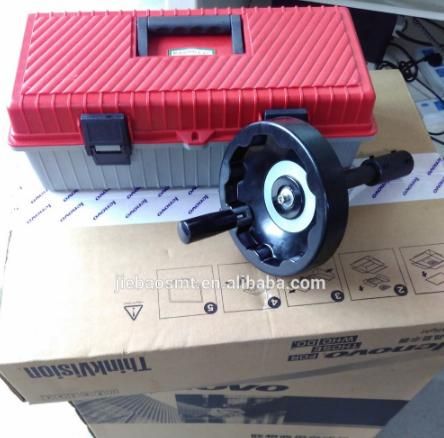

We will pack the tool box with every machine, there are some spares and tool in.

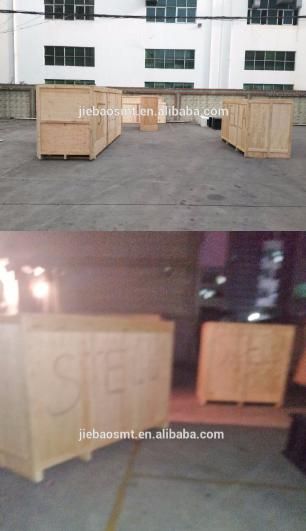

At last, machine is packed in wooden box. Finish all the packing process.



Our Services

 1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment

failure, the supplier in the receipt of the notification, the maintenance

personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee

period the supplier will free maintenance and replacement of quality caused by

the damaged parts.
