Fast Speed 8 Heads LED Pick and Place Machine (NeoDenK1830) for LED PCB Assembly Line SMD PNP Machine with 66 Feeders Fly Cameras 5050 3528 1500mm LED Board

Zhejiang NeoDen Technology Co., Ltd.
  • After-sales Service：2 Years Warranty
  • Condition：New
  • Speed：Super High Speed
  • Precision：High Precision
  • Certification：ISO
  • Warranty：24 Months

Base Info

  • Model NO.：NeoDenK1830
  • Automatic Grade：Automatic
  • Type：High-speed Chip Mounter
  • Model：Neodenk1830
  • Max Speed：14,000cph for LED Assembly
  • Average Speed：8500cph for Drive Board
  • Nozzle：8 Heads
  • Vision：Flying Vision System
  • Feeder Qty：64PCS (If 8mm, 12mm)
  • Packing Size：142*122*166.5cm
  • Camera Qty：8
  • Smallest Component：0402′
  • Max IC：40*40mm
  • Transport Package：Fumigation Free Wooden Case
  • Specification：142*122*166.5cm
  • Trademark：NeoDen
  • Origin：Zhejiang, Cn
  • HS Code：84798962
  • Production Capacity：50sets,M

Description

Overview Nozzle head qty6AlignmentFlying vision cameraDrive motorPanasonic servo motor A6Max speed14,000CPHMax tape feeder capacity64Smallest component0402'Other feederTray feeder, vibration feeder (selectable)Largest size40*40mm (lead pitch 0.4mm)Placement area630*300mm (1200mm optional)Max height10mmAir source 0.6MpaPower supply220v/ 110vPacking size142*122*166.5cmN.W/ G.W.280KG/ 360KGModelNeoDen7
Video from customers feedback:

1.https://pickandplace-neoden.en.made-in-china.com
2.https://pickandplace-neoden.en.made-in-china.com
3.https://pickandplace-neoden.en.made-in-china.com
4.https://pickandplace-neoden.en.made-in-china.com

Accessories:
1) Pick and Place Machine NeoDen7: 1
2) Nozzle: Totally 10 (CN065=2,CN100=2,CN140=2,CN220=2, CN400=1,CN750=1)
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Solid  Wrench:2
10)PCB Fixation Unit*8
11)PCB Positioning Block:4
12)Nozzle clean Tool:10
13)User Manual:1


 Customers' Cases

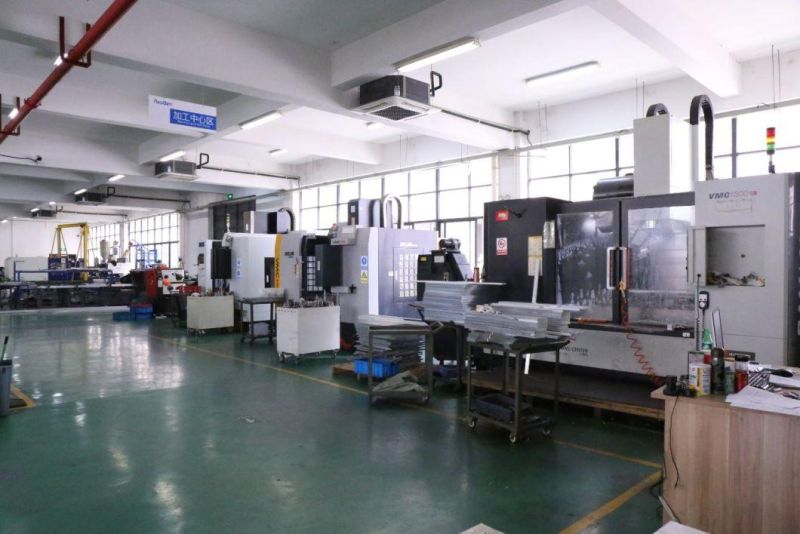

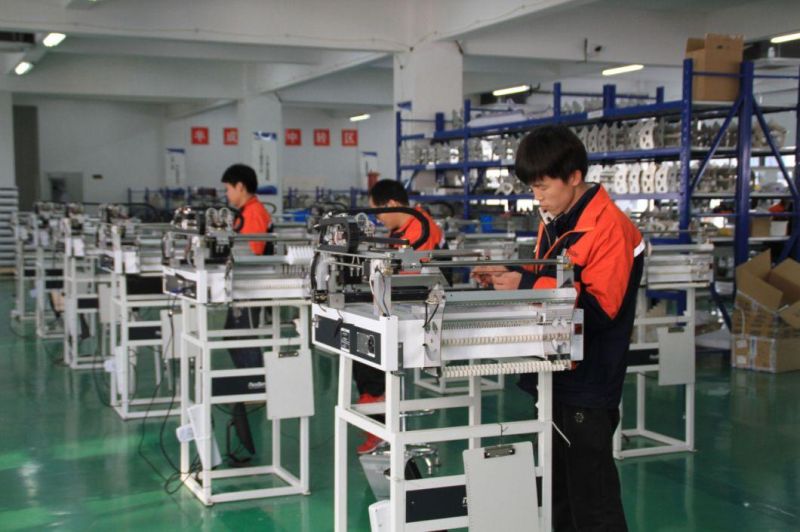

NeoDen in ExhibitionsFactory TourFast Speed 8 Heads LED Pick and Place Machine (NeoDenK1830) for LED PCB Assembly Line SMD PNP Machine with 66 Feeders Fly Cameras 5050 3528 1500mm LED BoardFast Speed 8 Heads LED Pick and Place Machine (NeoDenK1830) for LED PCB Assembly Line SMD PNP Machine with 66 Feeders Fly Cameras 5050 3528 1500mm LED BoardFast Speed 8 Heads LED Pick and Place Machine (NeoDenK1830) for LED PCB Assembly Line SMD PNP Machine with 66 Feeders Fly Cameras 5050 3528 1500mm LED Board
