• Model NO.：MD-SF-100
• Driven Type：Electric
• Voltage：Single-Phase 220V, 50Hz
• Spit Gum Head：1
• Enter Air Pressure：0.1~0.4MPa , Cm2
• Weight：15kg
• Power：Less Than 100va
• Rated Current：0.75A
• Gum Diameter：150mm or Less
• Spit Glue Time：1~5sec , Time
• Spit Glue Speed：0~5g , Time
• Movement Speed：2~12r,S
• Transport Package：Standard Export Wooden Case Packing
• Specification：W500*D450*H600mm
• Trademark：Minder
• Origin：China
• Production Capacity：100sets,Month

Basic Info.

Model NO. MD-SF-100 Driven Type Electric Voltage Single-Phase 220V, 50Hz Spit Gum Head 1 Enter Air Pressure 0.1~0.4MPa / Cm2 Weight 15kg Power Less Than 100va Rated Current 0.75A Gum Diameter 150mm or Less Spit Glue Time 1~5sec / Time Spit Glue Speed 0~5g / Time Movement Speed 2~12r/S Transport Package Standard Export Wooden Case Packing Specification W500*D450*H600mm Trademark Minder Origin China Production Capacity 100sets/Month

Product Description

Product description
Round glue machine series, multi-function glue machine has the advantages of complete function, uniform glue, simple operation, etc.. The glue can be arbitrarily adjusted, suitable for the use of round objects on various assembly lines. It is a necessary equipment for glue for ball bulbs, pots, solar energy, round industrial products, and electro-acoustic components.

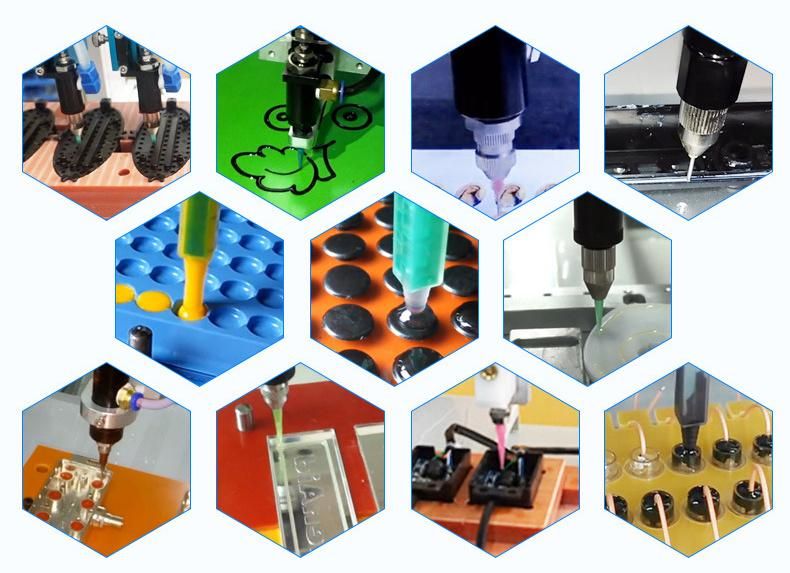

Application


Features

The control circuit of this machine adopts single-chip CMOS integrated circuit and advanced, highly reliable and non-contact thyristor as control system. It has the characteristics of fast switching speed, high operating frequency, long life, noiseless operation and so on.

The components used in this machine have been carefully selected, all selected high-quality devices, can work continuously for a long time.

1, Single-head automatic dispensing, adjustable spacing, dispensing machine with painting points, lines, surfaces, arcs, circles. Irregular curve continuous tween and three-axis linkage and other functions.

2, Large storage memory capacity, and the software has a regional array, translation and rotation operations and other functions.

3, The size of the glue, the speed of the glue, the dispensing time, and the time for stopping the glue can all be set by parameters, and the amount of glue is stable, without leakage of glue.

4, Can be equipped with automatic feeding and discharging mechanism to enhance productivity and competitive advantage.

5, According to the needs of the user, it is possible to add a workstation positioning PIN, glue gun or floor heating control device.

6, Optional multi-tip fine-tuning needles, multi-head operation at the same time, doubled to improve work efficiency.

7, Intelligent breaking glue function to prevent the glue from being pulled, that is to save the glue and reduce the rubber repairing process.

8, Single-disc and multi-fixture work cycle, greatly improving work efficiency.

Technical parameter

Model	MD-SF-100
Input Voltage	Single-phase 220V, 50Hz
Pressure	0.5~0.8Mpa / cm2
Spit glue speed	0~5g / time
Spit glue time	1~5sec / time
Spit glue air pressure	0.1~0.4Mpa / cm2
Gum diameter	150mm or less
Rated current	0.75A
Power	Less than 100VA

Main configuration

1, Round machine host

2, Glue check valve

3, Flashlight AB pusher

4, Foot switch (manual switch)

5, Manual three-dimensional adjustable bracket.

6, Pusher fixed function board.

7, Mechanical form: single-axis motor + cylinder

8, Working range: diameter less than 150mm

9, Up and down stroke: 100mm

10, Drive mode: speed motor

11, Movement speed: 2~12R/S

12, Control mode: SCM

13, Dimension: W500*D450*H600mm

14, Weight: 15kg

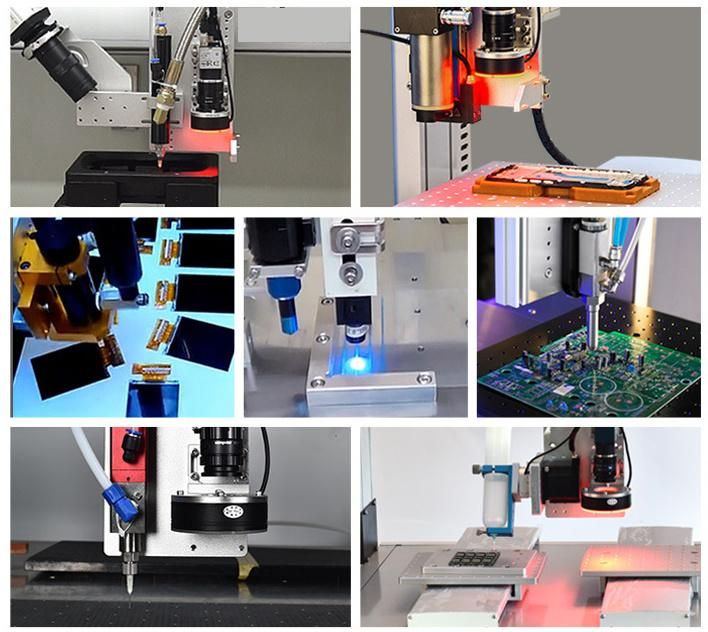

Desktop automatic dispenser accessories

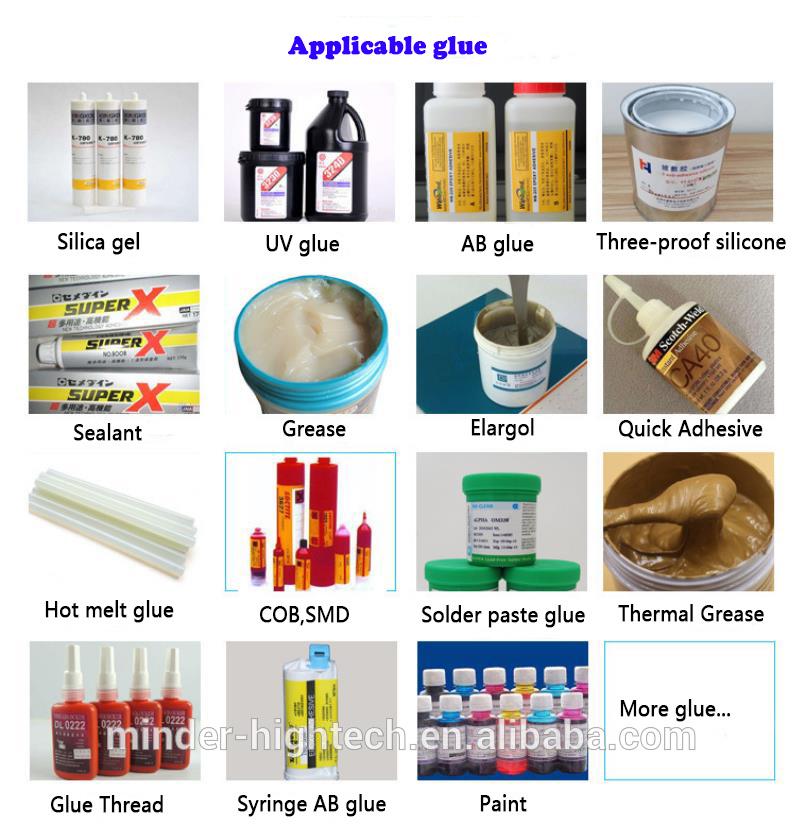

Applicable fluid type for dispensing machine
