• Model NO.：WD-01-QKX
• Type：High-Speed Stranding Machine
• Driven Type：Motor
• Transport Package：Ply-Wooden Case
• Trademark：WEDE
• Origin：China
• HS Code：8479811000
• Production Capacity：100PCS,Year

WD-01-LRX:single winding head 2 rotary stations
WD-02-LRX:double heads 4 rotary stations
WD-03-LRX:three heads 6 rotary stations (for water pump etc)*2 pcs (single phase motor, each phase per piece)
WD-04-LRX:four heads 8 rotary stations (for table fan, pedstran fan etc) *3 pcs (one speed per piece)
WD-06-LRX:six heads 12 rotary stations

They have standard size machine (refer to the following table size, and following stator winding line picture 1 )and also the extend size machine (refer the following stator winding line picture 2), for size OD 330, 191 height
 ItemWD-01-LRXWD-02-LRXWD-03-LRXWD-04-LRXWD-06-LRXwire OD0.15-1.2mm0.15-1.2mm0.15-1.2mm0.15-1.2mm0.15-1.2mmmax number of parellel wire102222max core length200mm150mm120mm80mm60mmmax no-load speed1000rpm2000rpm1500rpm2300rpm2300rpmappropriate wirecopper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire power supply380V 50/60Hz380V 50/60Hz380V 50/60Hz380V 50/60Hz380V 50/60Hzpower5KW10KW7KW10KW14KWair supply0.4-0.6MPa0.4-0.6MPa0.4-0.6MPa0.4-0.6MPa0.4-0.6MPaweightabout 1500kgsabout 2000kgsabout 1600kgsabout 2500kgsabout 2500kgssize2000x930x2300mm1700x900x2400mm1500x1300x1900mm1575x1580x2400mm1600x1500x1900mm

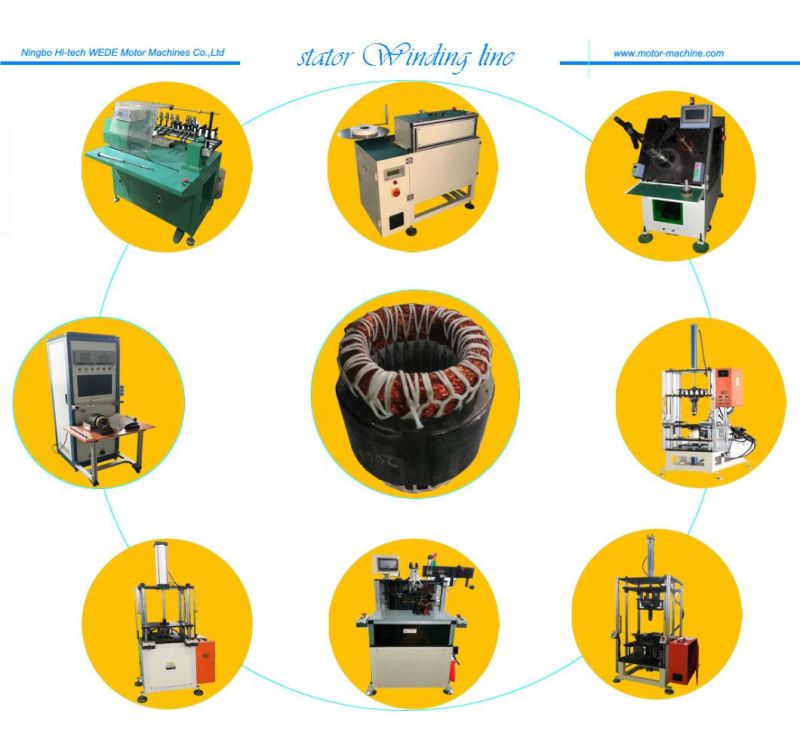

Picture 1

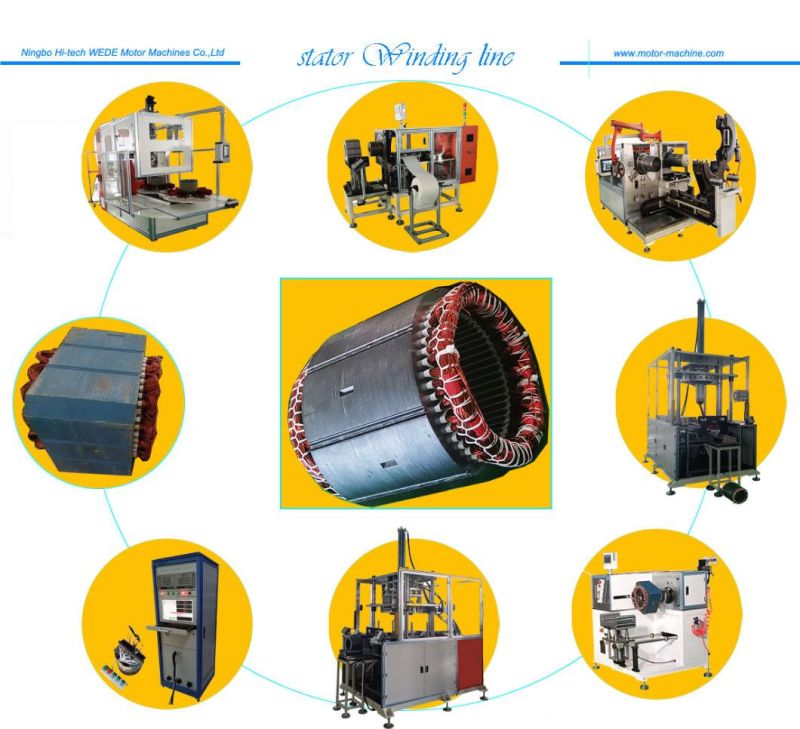

Picture 2
