• Model NO.：WL-S03
• Stripping Length：0.1-15mm on One End
• Cutting Lenght：45-99999mm
• Productivity：4000PCS,Hour
• Air Pressure：0.4-0.6MPa
• Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-S03 Stripping Length 0.1-15mm on One End Cutting Lenght 45-99999mm Productivity 4000PCS/Hour Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

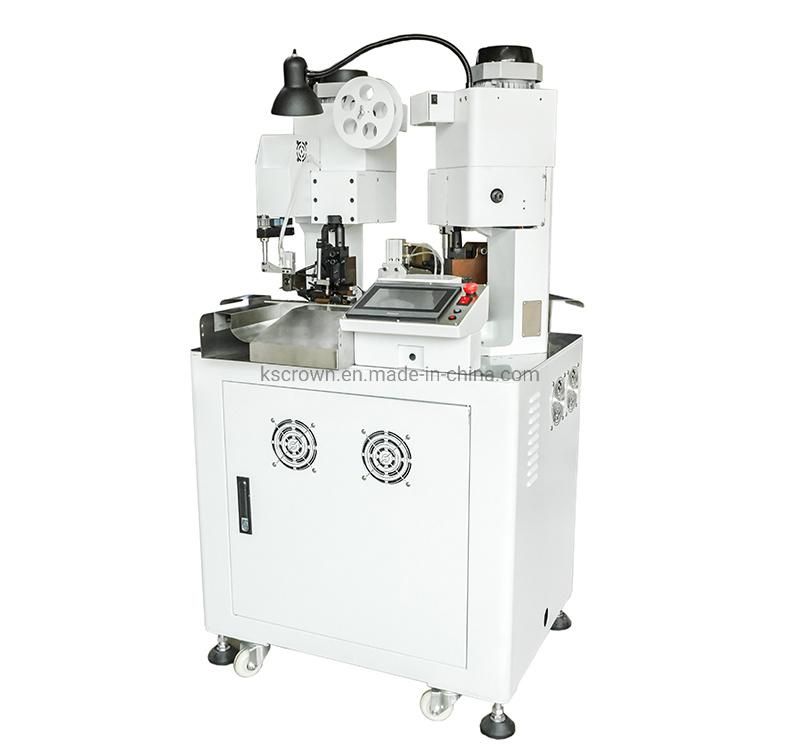

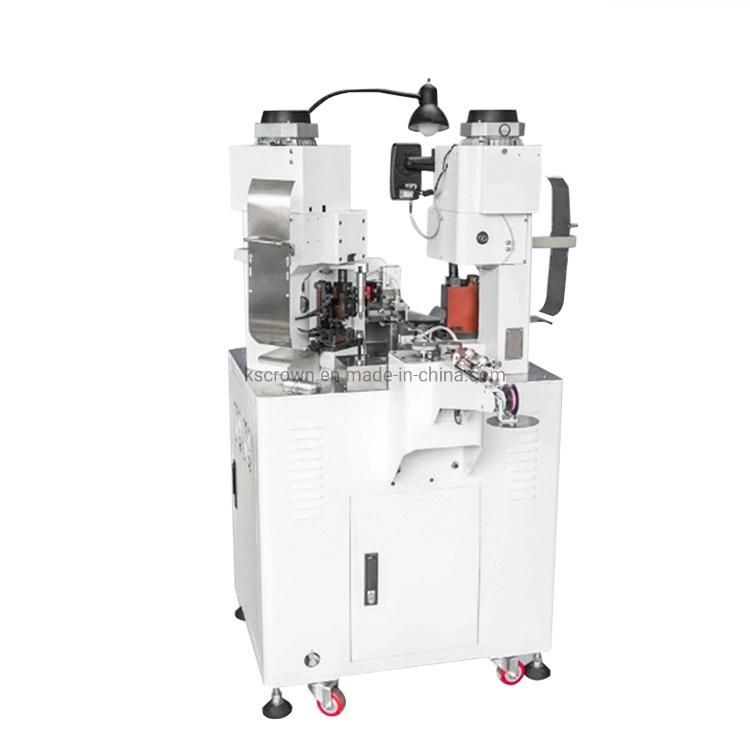

 WL-S03 Fully automatic double end twin cable terminal crimping machine wire cutting stripping machine



This  machines can cut, strip, crimping terminals for both end, for single wire thick wire.

And we can customise for you for different wire cable size.

Just tell us your requirement, ODM or OEM terminal crimping machine is welcome.



Specifications:

Product Name	Automatic double head terminal crimping machine
Model	WL-S03
Power Supply	AC220V/50HZ/60HZ Single Phase
Mechanical function	wire cutting, single end stripping, double- end stripping, single and double head crimping
Capacity	4000 pieces/hour (within length 300mm)
Processing Range	AWG14-AWG26
Cutting wire length	45-99999mm
Cutting wire accuracy	0.001*Lmm (L refers to the length of the cut line)
Stripping length	0.1mm-15mm on one end
Air pressure	0.4-0.6MPa
Detecting device	pressure detection, presence of wires, presence  of terminals Terminals without pressure, stripping detection
Appearance size	160x70x80cm
Machine weight	130KG

Detail image:

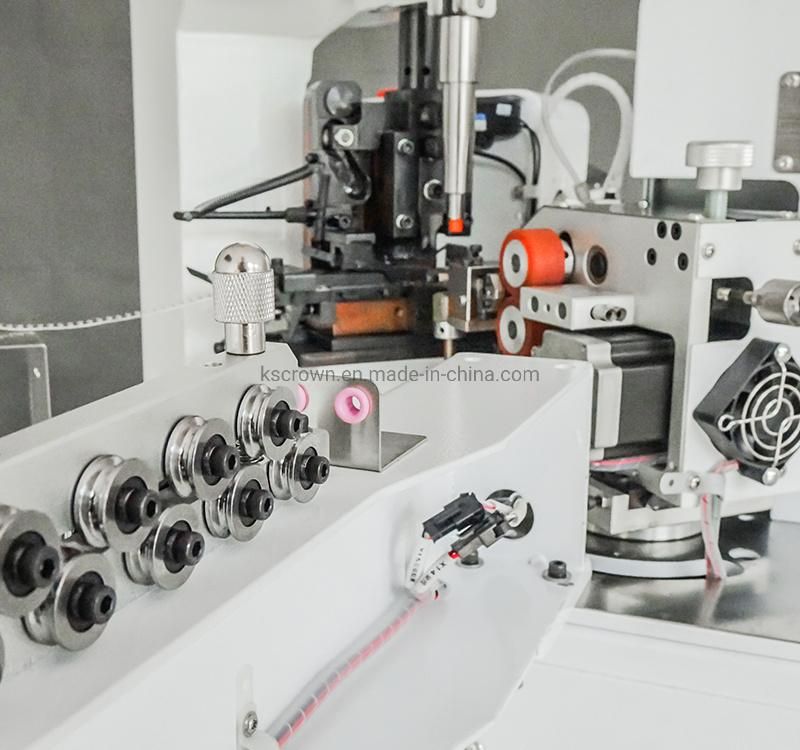

A wire feeding mechanism equipped with an accurate pulse signal electronic control unit,
It can control the cutting tolerance to less than 0.2% of the total length.
To achieve a higher standard quality of processed products,
You only need to replace the wire guide to change the wire type.
Convenient and fast, suitable for AWG18#-28# electronic line.

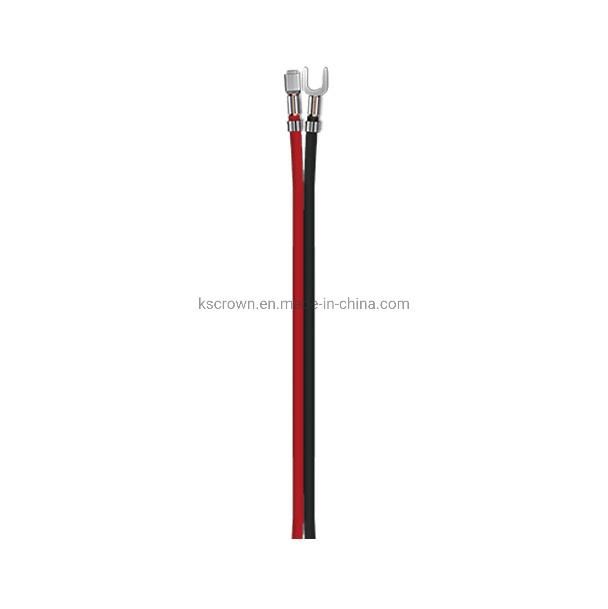

Finished products of this machine below:

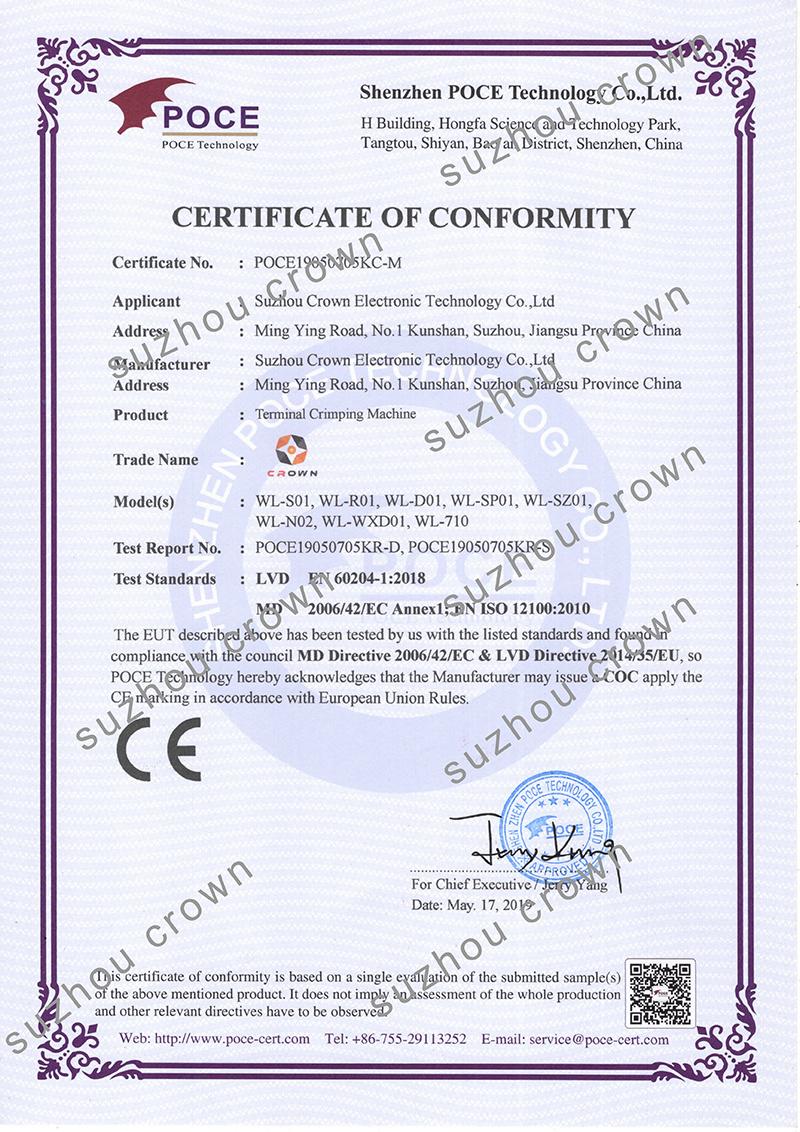

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.
