Qm B Series Zcg Socket Self-Locking Push Pull Connector
Shanghai Quanma Electronic Technology Co., Ltd.- After-sales Service：12 Month
- Precision：High Precision
- Condition：New
- Certification：CCC, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：ZCG
- Installation：Vertical
- Driven Type：Electric
- Protection Level：IP50
- Numbers of Inserts：>5000
- Vibration：10-20000Hz, 15g
- Temperature Rang：-45c~ +125c
- Mechanical Shock：100g.6ms
- Salt Spray Corrosion Test：96h
- Material：Cooper Alloy
- Humidity：at 60c, The Highest Humidity Can Reach 95%
- Voltage：12V
- Brand：Qm
- Quality：Waterproof
- Plate：Chrome Plate
- Type：Push Pull Connector
- Color：White
- Pin：Multipin
- Transport Package：Standard Box as Required
- Specification：0B 1B 2B 3B
- Trademark：QM
- Origin：China
- HS Code：8536700000
- Production Capacity：5000000PCE,Year
Description

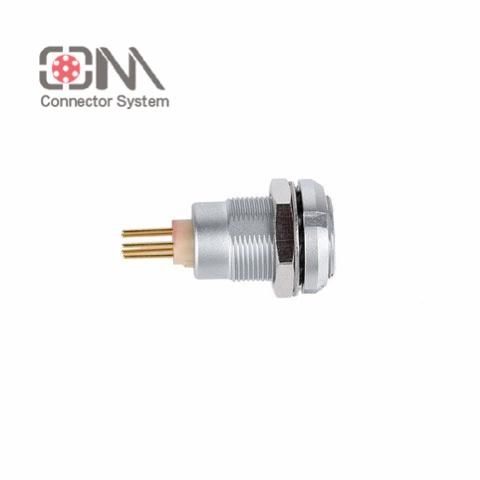

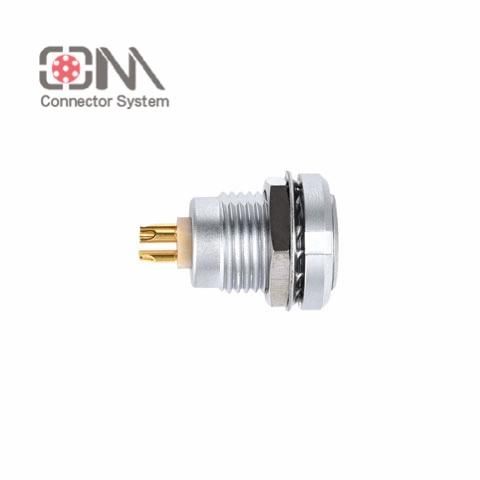

ZCG socket:B series push-pull self-latching connector has the characteristics of fast separation, simple and convenient, firm and reliable
Detailed Photos
Features
Main features of B series metal connectors
Fast push-pull self-latching system
Welding, crimping and PCB(Specification
Technical characteristics of B series metal connectors

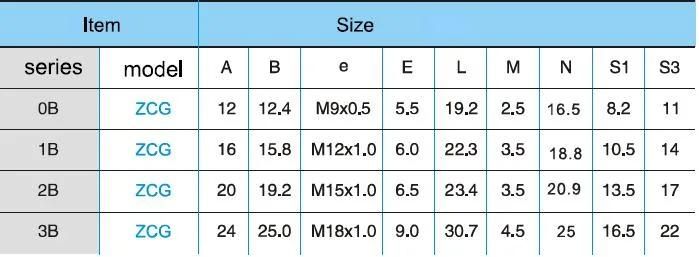

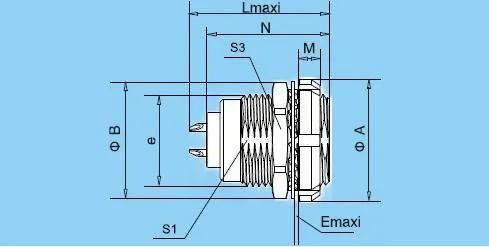

Product ParametersTechnical parameters of ZCG socket
Catagory:B Series
Model:ZCG
Series:0B,1B,2B,3B,4B
Company Profile

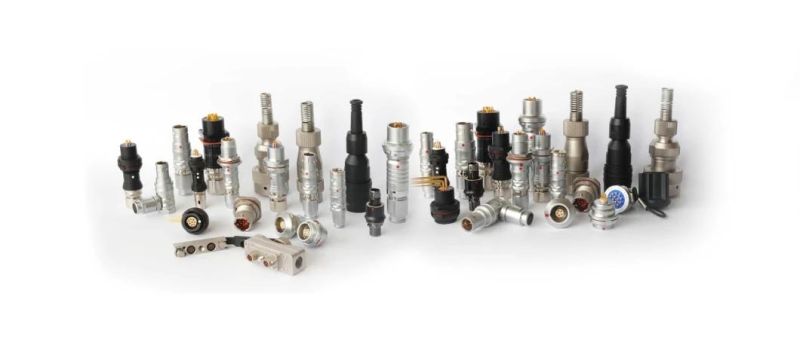

QM connector is a Chinese manufacture of waterproof push pull connector. We aim to provide high quality connectors for our customers. Push pull connector is a small and convenient spare parts for your equipment. It can be used in medical device such as endoscopy, can be used in military use helmet and garments, base station for telecommunication, automatic machine such as dispensing machine, etc. Our waterproof self-locking connector have different series will fit your requirement in different equipment. We also provide custom made service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfiction is our motivation!
Our factory is located in Shenzhen. The pictures of our factory shows below. We have qualified staff that make sure our customer's order will be delivered in time. Also research and invent new product is always important for a manufacturer. We have a reliable reserach and development team that will make sure our product fit our customer's needs.
