• Model NO.：HH-E-70
• Wire Speed：Max: 350meters,Min
• Extrusion Capacity：140 Kg,H
• Bobbin Size：400-630mm
• Motor：Siemens
• Inventor：Yaskawa
• Main Power：75 Kw
• Material：PE, PVC
• Voltage：380V or Customized
• L/D of Screw：25:1bm
• Transport Package：Plastic Packing
• Specification：L: 25 meters
• Trademark：hooha
• Origin：Donguan, China
• HS Code：8479400000
• Production Capacity：6 Set,Month

Basic Info.

Model NO. HH-E-70 Wire Speed Max: 350meters/Min Extrusion Capacity 140 Kg/H Bobbin Size 400-630mm Motor Siemens Inventor Yaskawa Main Power 75 Kw Material PE, PVC Voltage 380V or Customized L/D of Screw 25:1bm Transport Package Plastic Packing Specification L: 25 meters Trademark hooha Origin Donguan, China HS Code 8479400000 Production Capacity 6 Set/Month

Product Description

70mm PVC Cable Extruder Machine Used for Wire Insulation Section Area 1-6 Square mm

 1. Application This extrusion line is widely used for PE or PVC insulation layer or jacket on house wire, auto wire and network wire etc with section area 1-6 square mm.

 2. Advantages ♦Highly automatic, labor saving
♦Easy to operate, start-up business friendly
♦Converter applied for ajusting speed, power saving
♦Customization available to meet various customer needs
Famous Brands Parts:
Motor: Dongguan Motor, Teco, ABB, Siemens
Inverter: Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC
Auxiliary Relay: Japan Omron
Ammeter and Voltmeter: Taiwan Risesun
Indicator, Switch and Button: Taiwan TEND
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK
Bearing: NSK, SKF

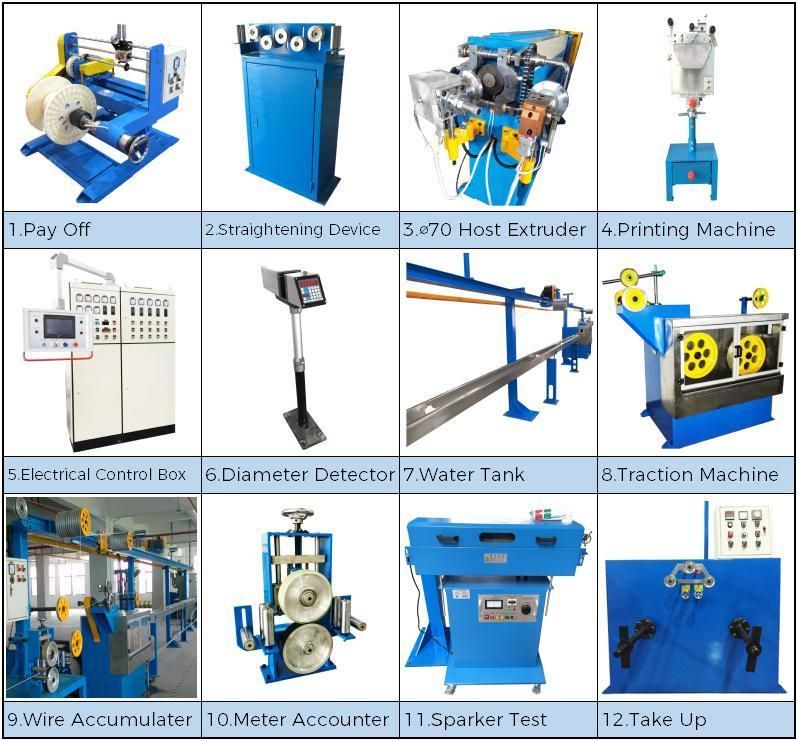

 3. Components

  4. Parameters

Inlet Wire Diameter 1.4 - 3.2 mm (1-6 mm2) Finished Wire Diameter 2.6 - 4.8 mm Insulation Material PVC, PE Screw Diameter 70 mm Length/Diameter Ratio 25:1 Extrusion Capacity 140 kg/h Extrusion Speed Max 350 m/min Temperature Sections 7 Power Supply 75 kw Air Supply 2000 L Workes Need 3 workers

  5. Technical support Our engineer team has rich experience working overseas for customer on-site service. Therefor, we can provide our customers widely range of support, such as overseas on-site installation, talent training, long-term technology updating services, etc.

  6. Drawings


7. FAQ
 Q1:What is your main brands for the electrical and mechanical parts? A:Oversea famous brand such as German siemens motor, Japanese nsk bearing and yaskawa inverter etc. Q2:What is your difference with other suppliers?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control, talent training, assist machine and raw material offering .
Q3:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.
Q4:How long the guarantee ?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi.
