• Model NO.：LED660
• Automatic Grade：Automatic
• Type：High-speed Chip Mounter
• Mount Head：6 PCS
• Max Circuit Board Size：1200*350mm
• Max Moving Range：X Axis 1500mm, Y Axis410mm
• Max Moving Range of Z Axis：15mm
• Typical Mounting Speed：13000-14000cph
• Max Mount Speed：18000cph
• Mount Accuracy：+,-0.1mm
• Position Method：Machinery Position
• Component Available：0603 and Above SMD Component and LED, Sot, Sop
• Dimension：2600×680×1500mm
• Transport Package：Wooden Case
• Specification：2600× 680× 1500mm
• Trademark：TERMWAY
• Origin：China
• HS Code：1105962268
• Production Capacity：5 Sets Per Month

Basic Info.

Model NO. LED660 Automatic Grade Automatic Type High-speed Chip Mounter Mount Head 6 PCS Max Circuit Board Size 1200*350mm Max Moving Range X Axis 1500mm, Y Axis410mm Max Moving Range of Z Axis 15mm Typical Mounting Speed 13000-14000cph Max Mount Speed 18000cph Mount Accuracy +/-0.1mm Position Method Machinery Position Component Available 0603 and Above SMD Component and LED, Sot, Sop Dimension 2600×680×1500mm Transport Package Wooden Case Specification 2600× 680× 1500mm Trademark TERMWAY Origin China HS Code 1105962268 Production Capacity 5 Sets Per Month

Product Description

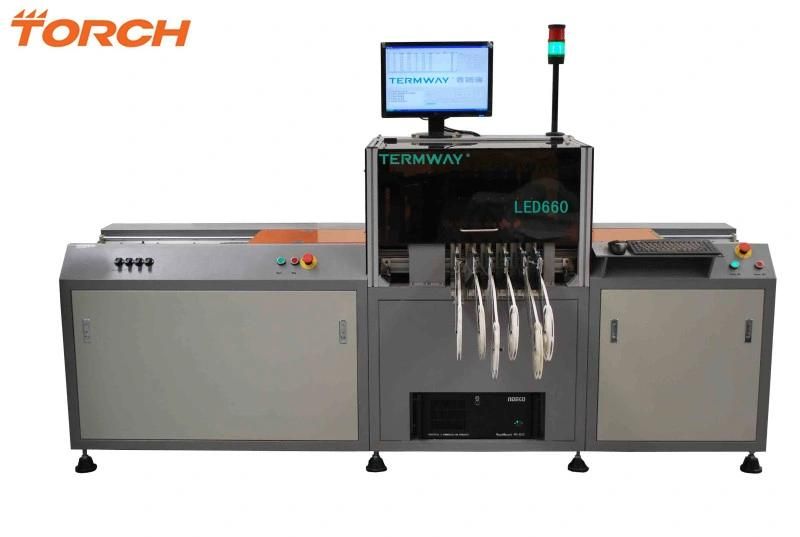

Torch Automatic Chip Mounter LED660/Pick and Place Machine


Introduce
LED 660 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.
Selling Point
1. The first special LED pick and place machine with 6 heads.
2. The first special LED pick and place machine used servo control system in SMT industry.
3. The first special LED pick and place machine used high precision ball screw transmission.
4. The unique LED pick and place machine that can precision mount less than 20mm SOP, Columnar diode, transistor, SOT and 0402 above all component (not include thickness more than 5mm Aluminum electrolytic capacitor ).
5. The unique LED pick and place machine that configured self-patent intelligent electronic feeder.
6. The unique LED pick and place machine that can realize program and mount PCB puzzle.
7. The unique LED pick and place machine that can vision program.
8. The unique LED pick and place machine that can offline program.
9. Powerful data input function can meet the need of input any format of PCB.
10. The unique LED pick and place machine that can mount 0402 stably and precision.
11. With safety cover, can effectively protect the operator and prevent the dust.
12. Suit for above 5 types nozzle and software can The software automatically prompt replacement nozzle type.
13. Accuracy speed is 14000CPH.

Model	LED660
Mount head	6 pcs
Max circuit board size	1200*350mm
Max moving range	X axis 1500mm, Y axis410mm
Max moving range of Z axis	15mm
Typical Mounting speed	13000-14000cph
Max mount speed	18000cph
Mount accuracy	+/-0.1mm
Position method	Machinery position
Component available	0603 and above SMD component and LED,SOT,SOP
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm , 12mm, 16mm and 24mm
Feeder num	6 pcs of GF series feeder can be set (12 pcs feeders are optional)
Operation system	WINDOWS XP
Compressed air	internal vacuum, (large production should use industrial air pump)
Power supply	220V,50Hz, 4.5 Kw
Weight	50 0Kg
Dimension	2600×680×1500mm
