Wl-Je/N Automatic Computer Cable Wire Cutting Stripping Machine 8mm2 Cable Cut Strip
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Wire Size：1-8mm2
Base Info
- Model NO.：WL-JE,N
- Stripping Length Jacket：Head 0-50, End 0-50 mm
- Cutting Length：1-150000mm
- Productivity：3000 - 8000PCS,Hour
- Drive Mode：2 Wheels Drive
- Weight：28kg
- Power：400W
- Transport Package：Carton
- Trademark：crown
- Origin：China
- HS Code：8479819000
- Production Capacity：50PCS,Month
Description
Basic Info.
Model NO. WL-JE/N Stripping Length Jacket Head 0-50, End 0-50 mm Cutting Length 1-150000mm Productivity 3000 - 8000PCS/Hour Drive Mode 2 Wheels Drive Weight 28kg Power 400W Transport Package Carton Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/MonthProduct Description

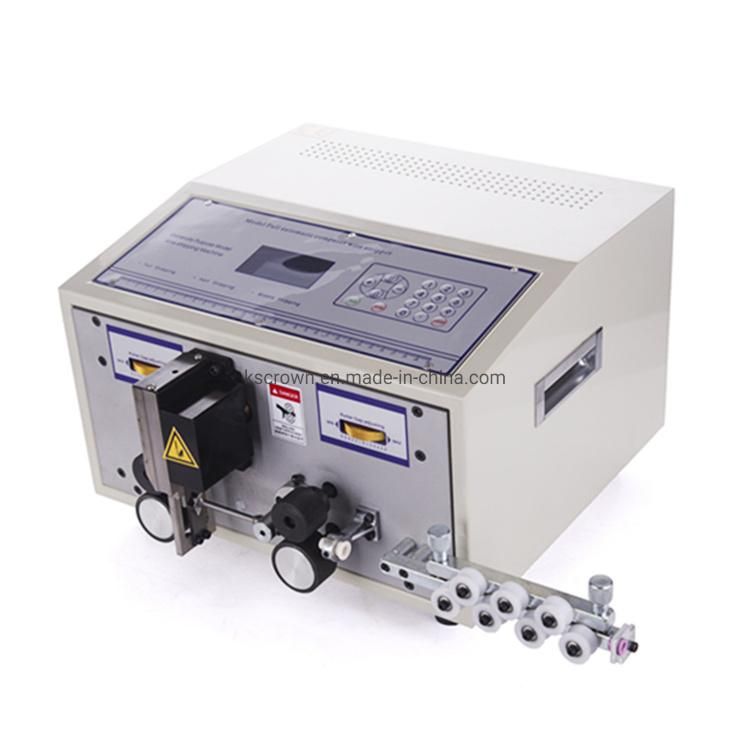

WL-JE/N Automatic Computer Cable Wire Cutting Stripping Machine 8mm2 cable cut strip
Feature:
1Mechanical and electrical. Microcomputer for the integration of the fully automatic computer wire stripping machine is a kind of the introduction of Japan, Taiwan and other advanced technology of automatic numerical control equipment.
2.Widely used in electronic industry, automobile industry, electrical appliances, motors, lamps, toys and other kinds of wiring harness processing products. Optimum strip wire line with teflong/PVC/silicone /. Glass fiber, etc.
3.This product USES LCD screen people dialogue mode, has a beautiful appearance, simple operation, convenient maintenance, stable performance, fast speed, high precision characteristics.
4.Wire length can be set freely, according to the customer request to modify, can strip wire of different thickness, also have to row lines, sheathed cable, power cable and casing shear and other functions.
Specifications:
| Model | WL-BE | WL-BJE | WL-BJE2 |
| Type | thick wire 8sq mm | thick wire 8sq mm | BV single stock, 10 square thick wire |
| Input Voltage | AC220/ 50HZ | AC220/ 50HZ | AC220/ 50HZ |
| Power | 300W | 300W | 500W |
| Display method | Full Chinese LCD display | English/Chinese LCD | English/Chinese LCD |
| Cutting Length | 1mm~9999mm | 1~9999mm | 1~100000mm |
| Stripping length | head0-35 tail0-15 | Head0-50 tail0-50 | Head 0-50 tail 0-50 |
| Cutting Tolerances | ± (0.002xL) | ± (0.002xL)mm | ± (0.0001xL) |
| Middle stripping cutting section | 11 | 11 | 16 |
| Available wire size | 0.1~8mm2 | 0.1~8mm2 | 0.2-10 mm2 |
| OD of catheter | ¢10 | ¢10 | ¢13 |
| Applicable wire | PVC, Teflon, glass wire etc | PVC, Teflon, glass wire etc | PVC, Teflon, glass wire,,multi-strand steel wire |
| Tool material | hard tungsten steel (optional) | Imported high speed steel | Imported high speed steel |
| Stripping speed | 3000-5000 | 3000-5000 | 4000-7000 |
| Drive method | four-wheel drive | four-wheel drive | four-wheel drive |
| Weight | 34 kg | 34 kg | 34 kg |
| Dimension | 54*51*40 cm | 54*51*40 cm | 54*53*41 cm |
| Model | WL-BC | WL-BSD |
| Type | general | Universal four-wheel drive |
| Input Voltage | AC220/ 50HZ | AC220/ 50HZ |
| Power | 160W | 200W |
| Display method | Full Chinese LCD display | Full Chinese LCD display |
| Cutting Length | 1mm~9999 | 1mm~9999mm |
| Stripping length | head0-35 tail0-15 | head0-35 tail0-15 |
| Cutting Tolerances | ± (0.002xL) | ± (0.002xL) |
| Middle stripping cutting section | 11 | 11 |
| Available wire size | 0.1~2.5mm2 | 0.1~4.5mm2 |
| OD of catheter | ¢6 | ¢6 |
| Applicable wire | PVC, Teflon, glass wire etc | PVC, Teflon, glass wire etc |
| Tool material | hard tungsten steel (optional) | hard tungsten steel (optional) |
| Stripping speed | 3000-8000 | 3000-8000 |
| Drive method | two-wheel drive | four-wheel drive |
| Weight | 30 kg | 31 kg |
| Dimension | 54*51*40 cm | 54*51*40 cm |

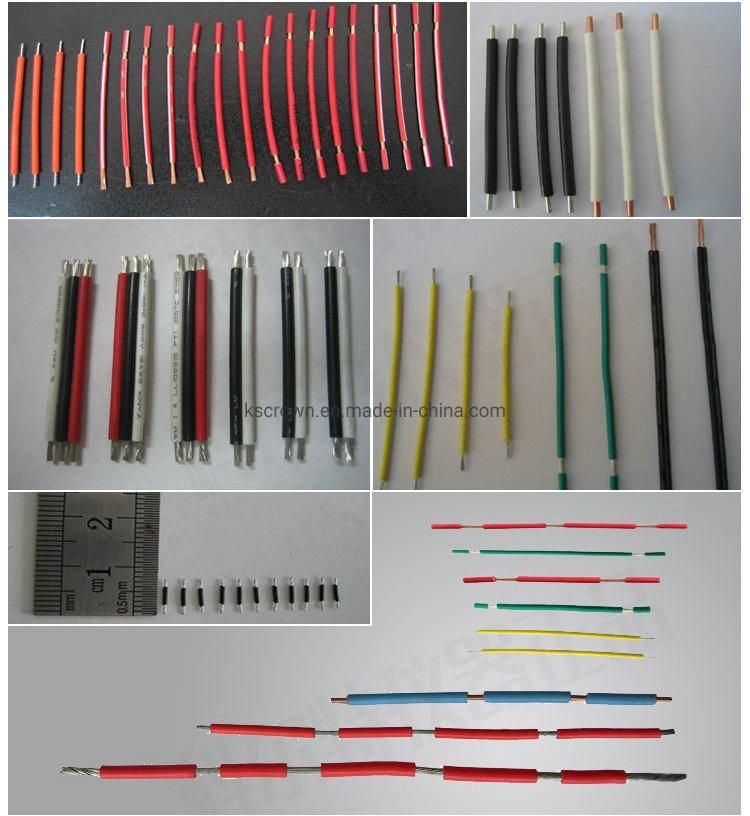

Product Show:
Application Terminal:
Related products:
Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .
ALso there are many models for your reference.
You may also like
Company Information
1. On-time delivery and the shortest delivery time.
2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
3.OEM and customized service.
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.
---Technical Support
User manuals will go with relative machines.
If you have any problem with operation, please feel free to contact us.
---QC Check before shipment
All products will be checked before delivery.
