• Model NO.：XJ-120MM
• L/D：26:1
• Screw Diameter：120mm
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1,000,000 Shots
• Automatic Grade：Automatic
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Shaftless active or double-shafless magnetic powder passive pay-offPay-off bobbinΦ400-500mmΦ500-630mmΦ630-1000mmΦ800-1000mmScrew diameterΦ70mmΦ80mmΦ90mmΦ120mmScrew L/D ratio26:126:126:126:1Extrusion output 140kg/h180kg/h240kg/h360kg/hMain power40HP500HP60HP100HPExtrusion ODΦ1.5-12mmΦ2-20mmΦ3-25mmΦ10-50mmCooling deviceU-type single-layer water troughAccumulate length0-200m0-200m0-200m0-200m Capstan power5HP7.5HP7.5HP15HPMax speed400m/min300m/min250m/min18 0m/minTake-up typeDouble shaftDouble shaftDouble shaftDouble shaftTake-up bobbinΦ500-630mmΦ630-800mmΦ630-1000mmΦ800-1250mmSize( mm)20000*1500*210020000*1600*210020000*1700*210023000*1800*2103Total Weight4.0T4.5T5.0T6.0T4. Brand of main parts:
1) Motor:  Siemens
2) Inverter:  YASKAWA  or Inovance
3) Bearing: NSK
4) Electric equipment: Adopt imported famous brands.

5. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

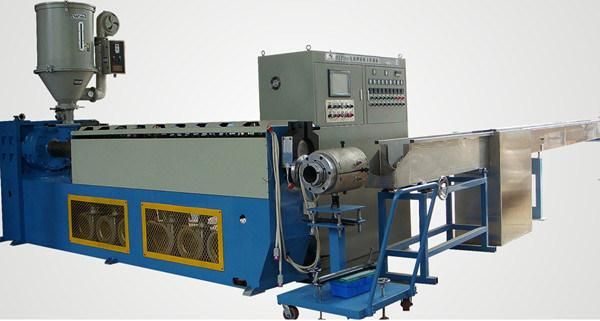

6. Machine pictures:


7.Packaging & Shipping:
8.Our Services:
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
9. About Us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited, and we have passed ISO9001 since 2010.

10. Our Team and Exhibitions:

11. FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are total over 6000 spuare meters of production workshop in our factory.
2) What is the advantages of your machine compared with competitors?
    Our automatic control technology is in leading position in wire and cable equipment field.
    Good cost performance, quality is steady.
    We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
