Micro-Fine Teflon Wire and Coaxial Cable Extruder Line
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Wire Spec.：0.2mm - 2.5mm
Base Info
- Model NO.：XJ-20,25,30,40
- Extrusion Material：ETFE,F40, FEP,F46, Fpa
- Screw Type：Single Screw
- Screw L/D：28:1
- Main Power：3kw,4kw,7.5HP,10HP
- Line Speed：Max.180m,Min
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Function：High Temperature Resistance
- Mould Life：>1, 000, 000 Shots
- Automatic Grade：Automatic
- Customized：Customized
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, Guangdong Province, China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
U-type single-layer water troughAccumulate length 0-100m 0-100m 0-100m 0-100m Capstan power 1kw Servo motor 2kw Servo motor 2kw Servo motor 2kw Servo motor Max speed 150m/min 150m/min 180m/min 180m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up power 3HP 3HP 4HP 3HP Take-up bobbin Φ100-200mm Φ200-300mm Φ200-300mm Φ300-400mm Size( mm) 8000*1200*2100 8000*1400*2100 9000*1400*2100 12000*1800*2100 Total Weight 3.0 T 3.5T 4T 5.5T
1) Motor: Siemens
2) Driver: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Omron
5. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

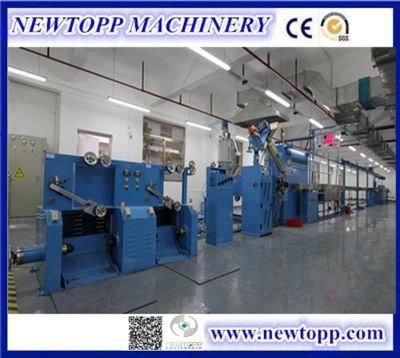

6. Machine picture:
7.Packaging & Shipping
1) Transparent PE film + Wooden box
2) Cardboard wrapping corner to protection, wire rope in fixed to sea ship
3) 20 Feet container for complete production Line equipment
4) Machine dimension: L x W x H = 20m x 2.5m x 3.2m; Unit weight: about 5500 kg/set
8.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
9. Company Information
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipmentR&D, design and manufacture.With the continuous improvement of production technology level and Constantlyincreasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfectand excellent.
10.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
2) How can we get to your factory to see the machines works?
Address: No286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China
We are near to Shenzhen Baoan International airport within 40 mins;
We are close to Guangzhou Baiyun Airport for 1.5-2 hours;
High speed rail from Guangzhou south station to Humen.
