• Model NO.：WL-3PC
• Certification：ISO, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Name：Semi-Automatic Tubular Terminal Crimping Machine W
• Model：Wl-3PC
• Function：Stripping Twising Crimping
• Applicable Specs：0.5mm2 – 4 mm2
• Detect Device：Detect Lack of Terminals
• Power：AC220V,50Hz Single Phase
• Gas Source：0.5-0.8MPa (Please Use Clean and Dry Air)
• Transport Package：Wooden Carton
• Specification：56*52*52cm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：100PCS,Month
• Package size per unit product：56.00cm * 52.00cm * 52.00cm
• Gross weight per unit product：56.000kg

Basic Info.

Model NO. WL-3PC Certification ISO, CE Warranty 12 Months Automatic Grade Automatic Name Semi-Automatic Tubular Terminal Crimping Machine W Model Wl-3PC Function Stripping Twising Crimping Applicable Specs 0.5mm2 – 4 mm2 Detect Device Detect Lack of Terminals Power AC220V/50Hz Single Phase Gas Source 0.5-0.8MPa (Please Use Clean and Dry Air) Transport Package Wooden Carton Specification 56*52*52cm Trademark crown Origin China HS Code 8479819000 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 56.00cm * 52.00cm * 52.00cm Gross weight per unit product 56.000kg

Product Description

Automatic Feeding Terminal Crimping Machine Bulk Tubular Ferrule Terminal Stripping Crimping Machine
Function :wire stripping ,twisting and crimping

This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables.

• Suitable for crimping a variety of loose tubular terminals onto cables

• Wire stripping and crimping can be finished at one time

• The terminals are crimped on all four sides, no need to replace the crimping die

• LCD display, automatically adjust stripping depth and length, as well as crimping height

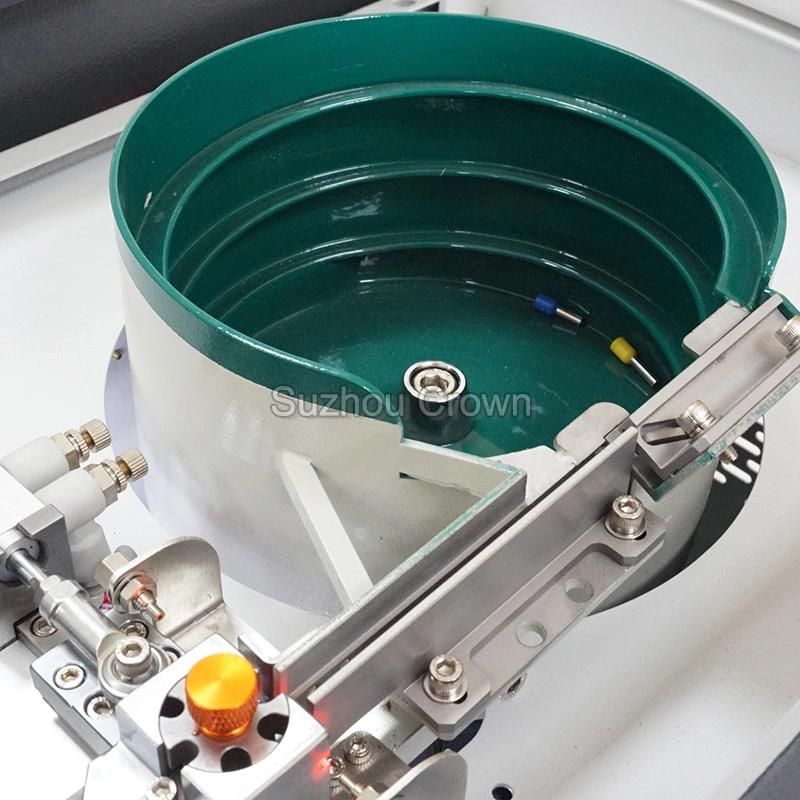

• Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick

• Fully sealed stripping and crimping, safe and reliable

Suitable Terminal :Tube-shaped loose terminals ,bulk tubular terminal ,ferrule terminal ,pre- insulated terminal

Model	WL-3PC
Capacity	Cable Stripping, Terminal Inserting and Terminal Crimping are finished in 2.5 seconds
Applicable specs	0.5mm2 - 2.5 mm2(Terminal conduit length should be less than 12mm) 4.0 mm2(Terminal conduit length should be less than 10mm)
Detect device	detect lack of terminals
Power	AC220V/50HZ single phase
Gas source	0.5-0.8Mpa (please use clean and dry air)
Dimensions	L450mm x W350mm x H425mm
Weight	about 40kg

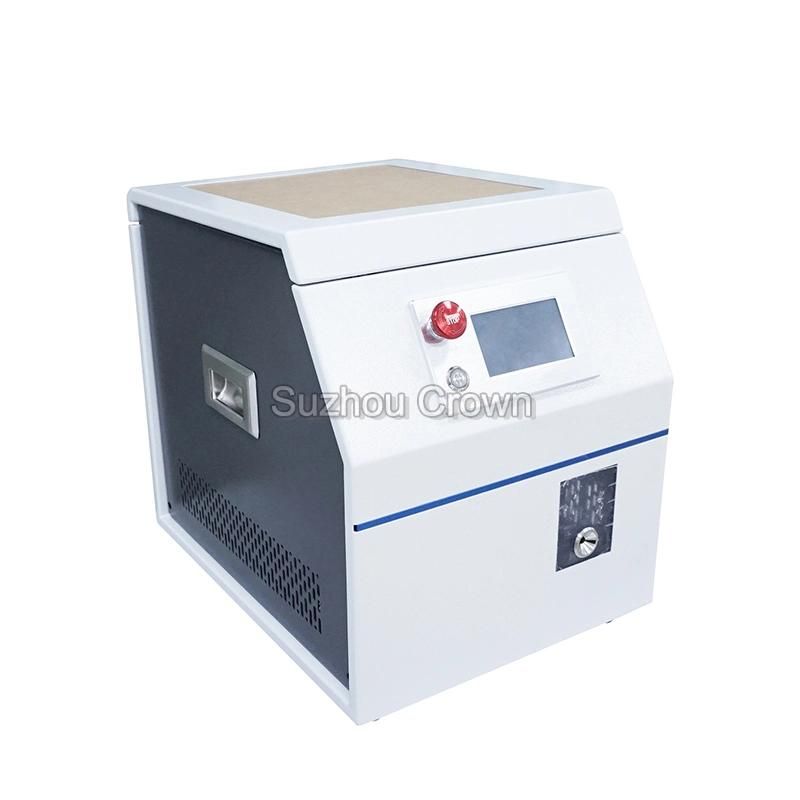

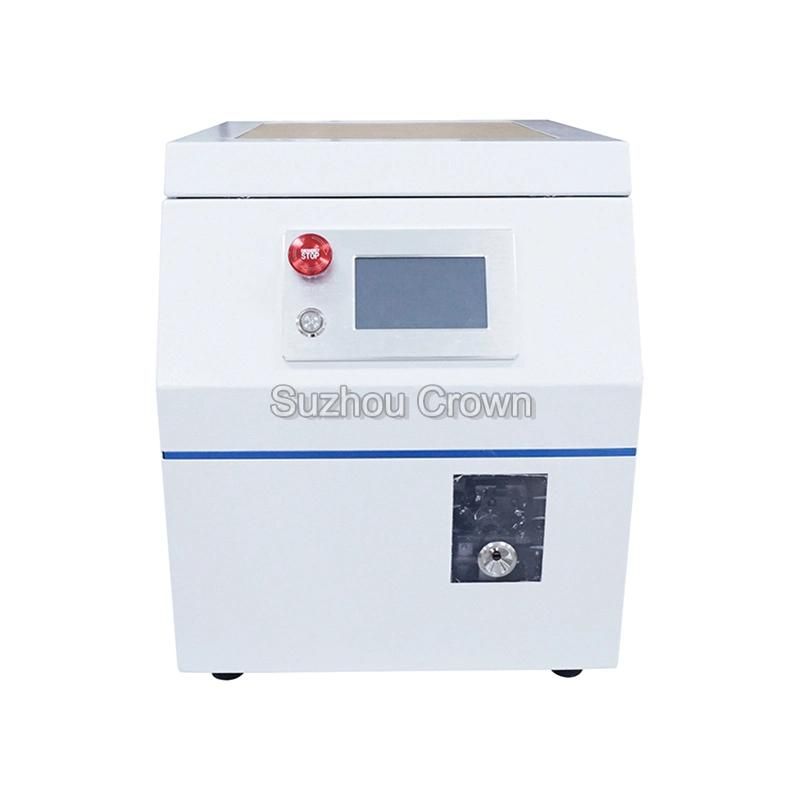

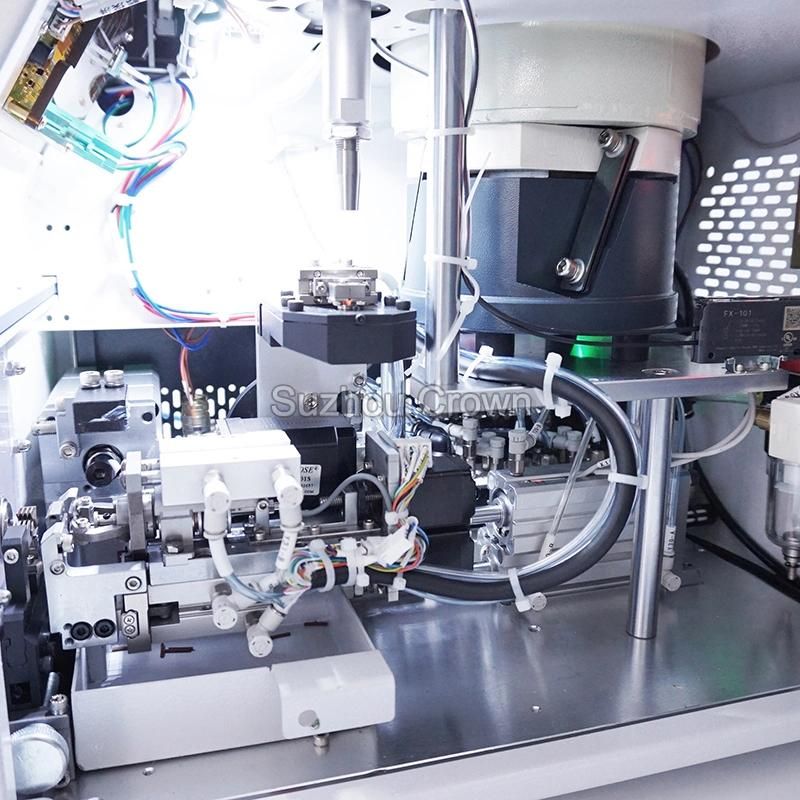

Product Show:

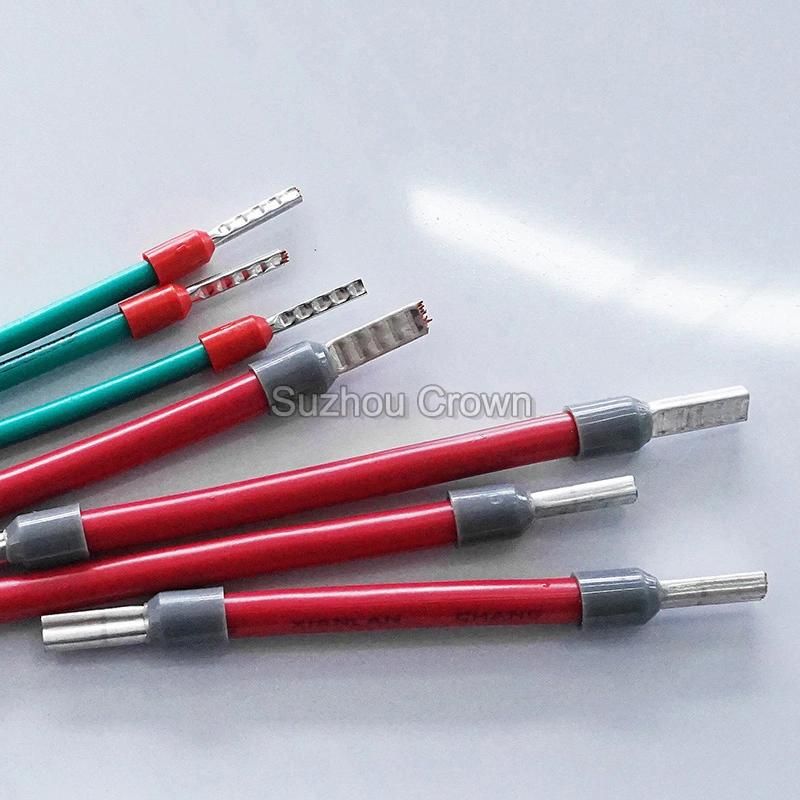

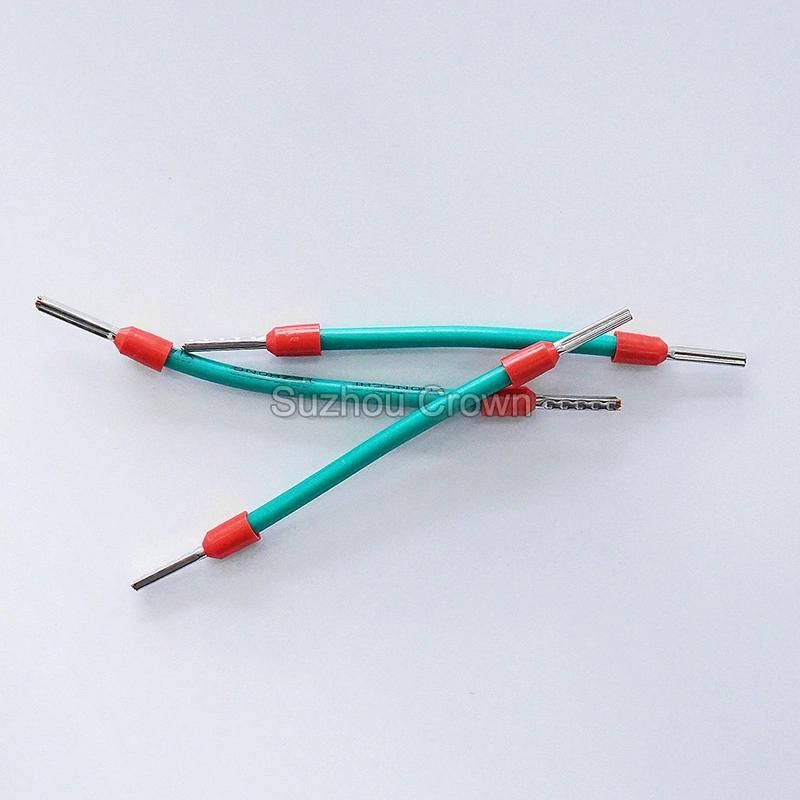

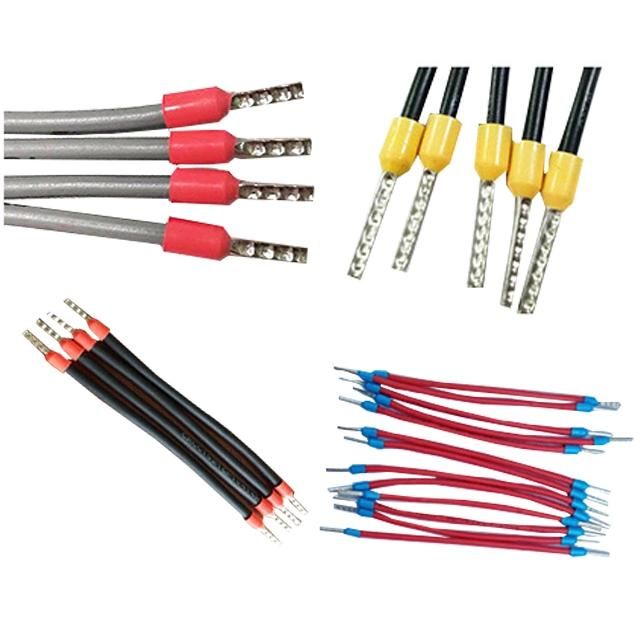

Application Terminal:



You may also like

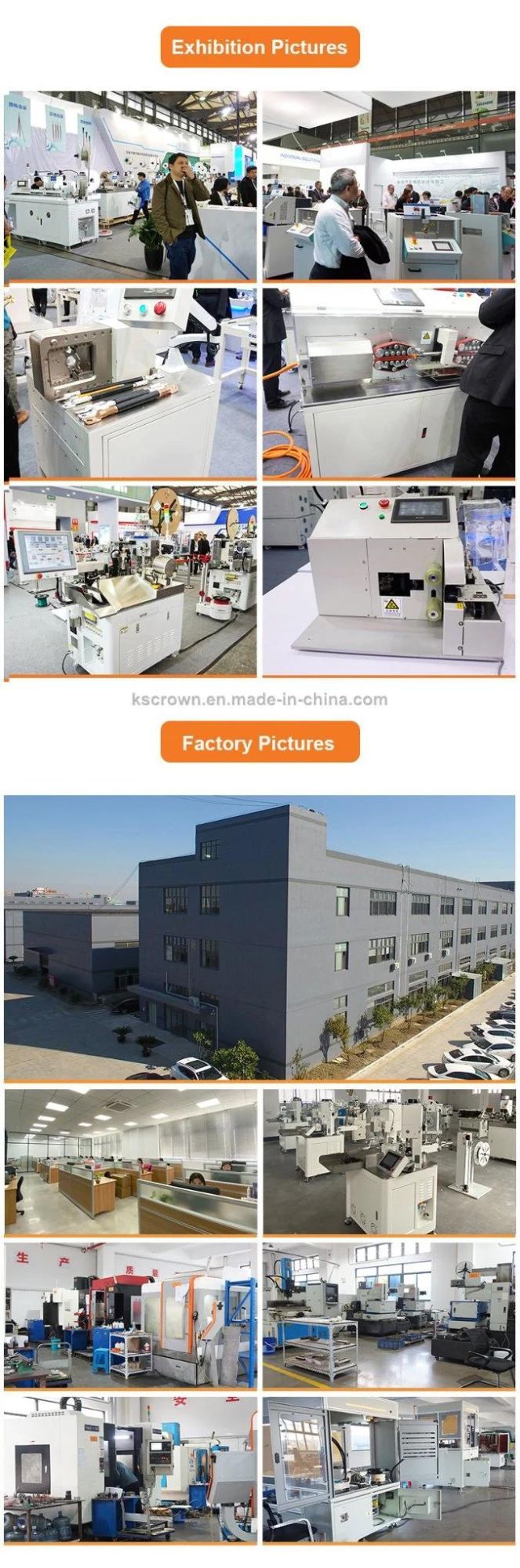

Company Information

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
