• Model NO.：WL-SXBD
• Stripping Length：0-15mm
• Cutting Lenght Difference：0-200mm
• Productivity1：4-Core Cable: 550-600PCS,H
• Air Pressure：4-6kgf (Clean and Dry Air Is Required)
• Productivity2：3-Core Cable: 800-900PCS,H
• Size：L1500mm X W970mm X H1700mm
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-SXBD Stripping Length 0-15mm Cutting Lenght Difference 0-200mm Productivity1 4-Core Cable: 550-600PCS/H Air Pressure 4-6kgf (Clean and Dry Air Is Required) Productivity2 3-Core Cable: 800-900PCS/H Size L1500mm X W970mm X H1700mm Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

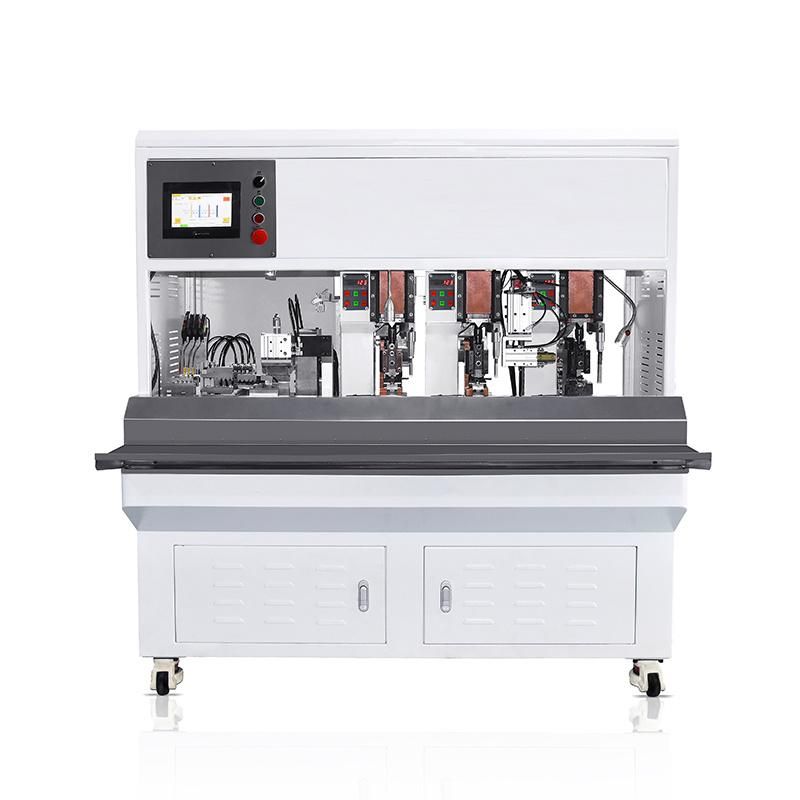

 WL-SXBD Semi automatic 4 core Sheathed Cable Stripping and Crimping Machine

This is a semi automatic cable stripping and crimping machine. It can process 3-core and 4-core power cord stripping and terminal crimping. This machine can process wires of inconsistent lengths. The length difference is 0-200mm. It can also crimp different terminals onto different core wires at the same time.

• It adopts Mitsubishi servo (3 servo motors in the whole machine) and ball screw drive, so that the wire feeding, stripping, terminal crimping are very precise, and the movement connection between each other is smooth.

• The mechanical control is simple and convenient, all operated by the touch screen, and the data adjustment can change the stripping and cutting length, the cutting depth, and the crimping position.

• This machine can process wires of inconsistent lengths. The length difference is 0-200mm.

• Applicable terminals: ground ring terminals, push-in 187/250 terminals, flag shape terminals (horizontal terminal can be customized).

• The automatic detection function of the machine can also effectively control the occurrence of defective products, so that they can be found and processed immediately.

Specifications:

Model	WL-SXBD
Capability	4-core cable: 550-600pcs/h 3-core cable: 800-900pcs/h
Applicable wire range	3-core or 4-core sheathed cable
Cutting length difference	0-200mm
Cutting tolerance	within ±0.1(0.1+0.005*L)mm, L=cutting length
Stripping length	0-15
Crimping force	3T
Crimping mode	frequency converter drive, AC motor
Power supply and air pressure	3 phase 220V, 50/60Hz,0.5Mpa, 150(ANR)/min
Dimensions	L1500mm x W970mm x H1700mm

Detail image:

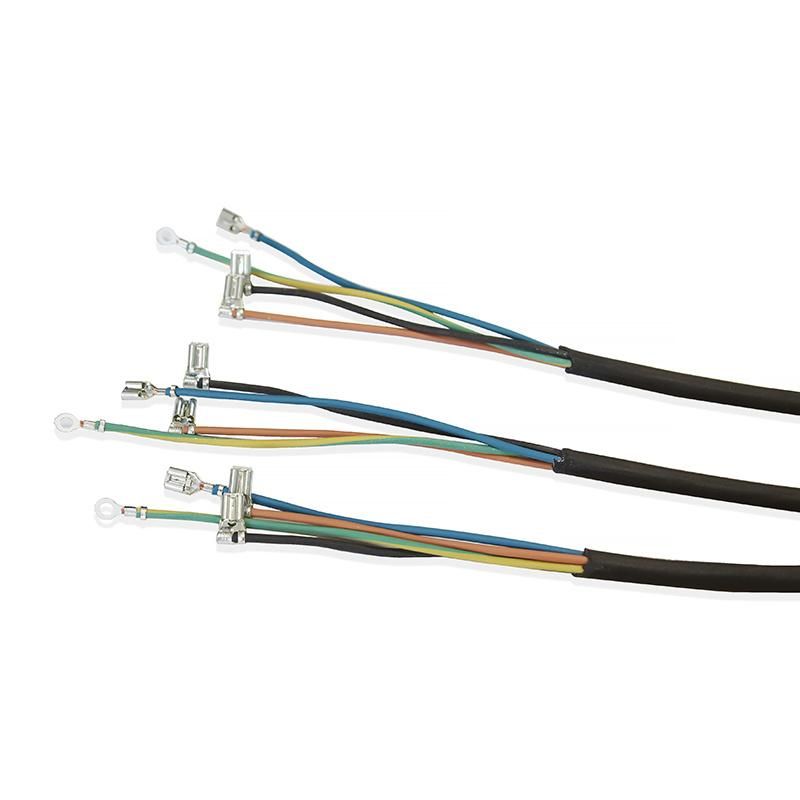

Finished products of this machine below:

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information



packing & shipping





 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
