• Model NO.：Jaguar A8
• Control System：Pid and SSR
• Temperature Control Method：Pid Close Loop Control & SSR Driving
• Data Storage：80GB
• Max. Width of PCB：320mm
• PCB Transmission Agent：Mesh
• Conveyor Speed Range：0-1500 mm,Min
• Mesh Width：350mm
• Normal Power：5.5kw
• Transport Package：Vacuummed and Sealed in Plywood Crate
• Specification：CE
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Jaguar A8 Control System Pid and SSR Temperature Control Method Pid Close Loop Control & SSR Driving Data Storage 80GB Max. Width of PCB 320mm PCB Transmission Agent Mesh Conveyor Speed Range 0-1500 mm/Min Mesh Width 350mm Normal Power 5.5kw Transport Package Vacuummed and Sealed in Plywood Crate Specification CE Trademark Jaguar Origin Shenzhen, China HS Code 8515190000 Production Capacity 100 Sets/Month

Product Description

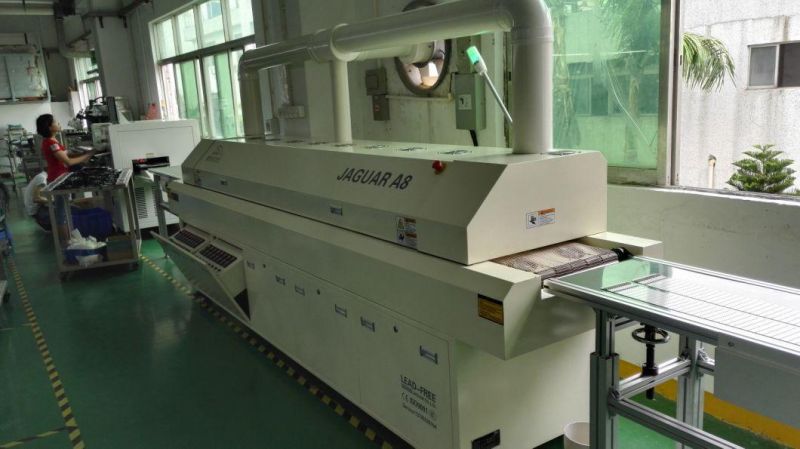

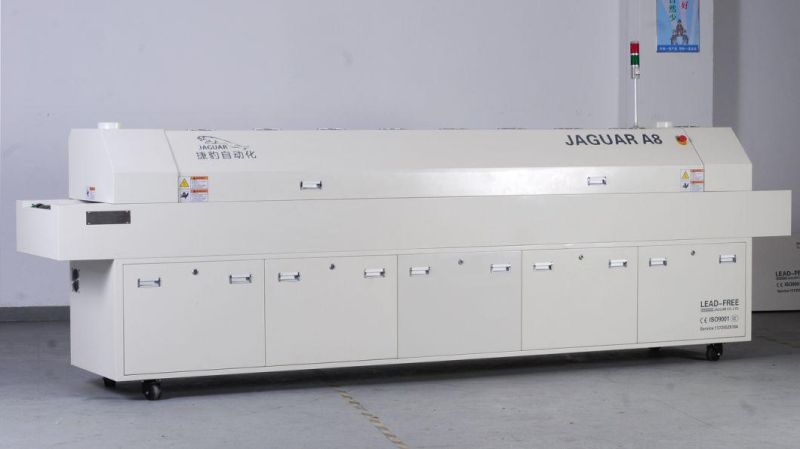

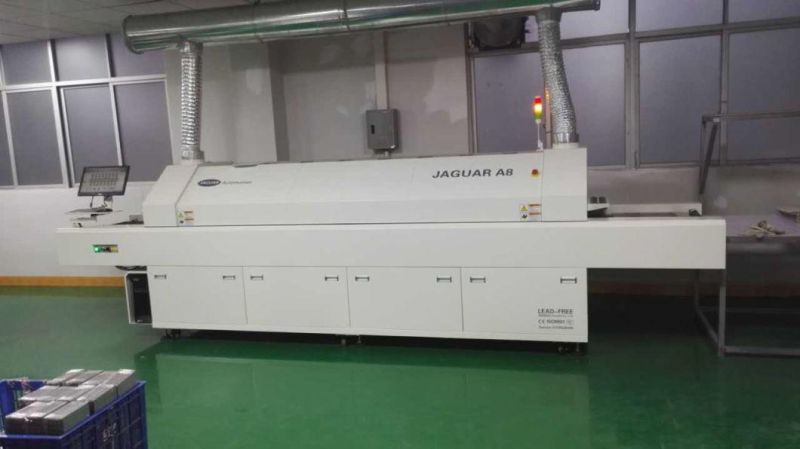

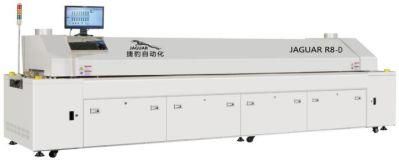

Lead Free Reflow Oven with full convection
Product Description
Main product : reflow oven, smt reflow oven, reflow solder, reflow soldering,smt mounter,Smt Pick and Place Machine,Smt Placement Machine,Smt Mounting Machine, Pcb Machine,Smt Equipments

Specification:

Model	Jaguar A8
Outside dimension	4200*700*1320mm
Standard color	computer grey
Weight	800KG
Number of heating zones	up8/bottom 8
Number of cooling zones	1
Length of heating zones	2800mm
Electric supply required	5 line 3 phase 380V 50/60 HZ
Warming time	Approx. 20 mins
Heating time	Up:hot air; bottom: IR
Temperature setting range	Room temp. -350 Degrees Celsius
Control system	PID+SSR/PLC+PC
Temperature control method	PID Close loop control&SSR Driving
Temperature control precision	±1.0 Degrees Celsius
Temperature deviation on PCB	±2.0 Degrees Celsius
Data storage	Process data and status storage(80 GB)
Abnormal alarm	Abnormal temp.(extra-high/extra -low temperature)
Board dropped alarm	Tower light:yellow-warming;green-normal;red-abnormal
Max. Width of pcb	320mm
Conveyor height	880±20mm
Conveyor direction	L-R/R-L
Conveyor speed range	0-1500mm
Pcb transmission agent	Mesh
Normal power	5.5KW
Start-up power	24KW

Features:
1. Heating system adopts Lead smt Heating technology.
2. Hot air no-contact output supported by imported large current solid-state relay, safe and reliable, meanwhile equipped with special SSR radiator, greatly improve the cooling efficiency, enjoy loner lifetime of the machine.
3. Heating devices used high quality components; ensure the whole system goes smoothly.
4. Combined with temperature controller PID fuzzy control function, has been monitoring the change of the ambient temperature and heat value ,with the minimum pulse control heating device , fast response, guarantee the temperature control precision ,minimize temperature distribution differences inside the oven ,the length direction of the temperature distribution accords to IPC STANDARDS .
5. Heating zone Module design, convenient for maintenance.
6. Sound and Light alarm when the temperature beyond the limit, with error analysis functions.
7. With small hot air cycle system design, up and down heating, good thermal compersation, perfect hot source efficiency, warm-up fast, suitable for BGA, CSP and 0201 ect, components solder welding .Unique forced hot air cycle structure, make components on PCB heated evenly.
8. Winding system adopts advanced wind air channel, working uniformly, with high hot source exchange.
9. Pre-heating zone, welding zone, cooling zone, cooling zone, up and down heating separately, independent cycle and temperature control, adjacent/beside zone temperature difference maximum value can reach 100 °C .No temperature exchange between zones, each zone temperature and wind speed can be adjusted.
10.Imported high temperature resistant motor straightly drive the hot air recycle, good heating balance, run smoothly, long lifetime, low noise, shock less .
11. Zones power match properly, warm-up fast, from room temperature to working temperature need 20 minutes, with hot source compensation function
12. Independent cooling zone, ensure the low temperature when PCB come out.
13. Transmission system adopts Japanese Frequency Motor, combined with 1:150 imported turbine reducer, running stably, the speed of 0-1500mm/min is adjustable.
14. Standing supported by independent wheels, with special stainless steel mesh belt, durable wearing resistant, especially for BGA, CSP and 0201 welding.
15.Rail + mesh belt transmission optional.
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

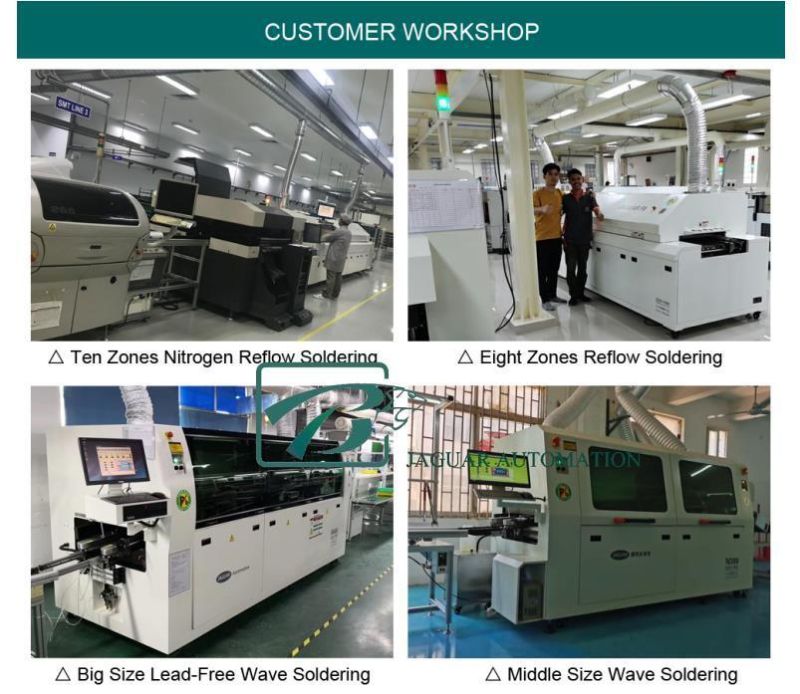

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications

Packing and shipping:

What we can do for you?
1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT
