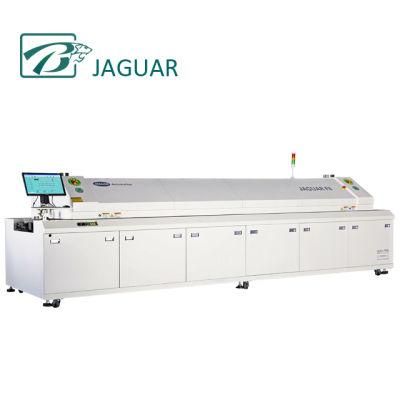

• Model NO.：Jaguar F10
• Heating Length：3750mm
• Mesh Width：450mm
• Power Supply：5line 3phase380V 50,60Hz
• Cooling Mode：Fan Cooling
• Transmission Type：Chain Rail & Mesh Belt
• Transmission Speed：0-2000mm,Min
• Warm-up Time：Approx. 20mins
• Temperature Range：Room Temperature ~350°c
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100PCS,Month

ModelJaguar F10GENERALDimension(L*W*H)5420*1320*1490mmweightApprox. 2150KG/2250KGnumber of heating zonesUp10 /Bottom10length of heating zones3890mmnumber of cooling zonesup2(cool air conversion)exhaust volume10m³/min ×2 ExhaustsConveyor systemrails structuresubsection integrated typeMax. width of PCB400mm(option 460mm)range of rail width50-400mm(option 50-460mm)components clearancetop 30mm/bottom 25mmconveyor directionL-R(Option R-L)fixed rails sideFront Rail Fixed(Option: Rear Rail Fixed)PCB transmission modeAir-Reflow=chain+mesh,
N2-Reflow=Chain+mesh(option)conveyor height900±20mmconveyor speed range300-2000mm/minauto/manual lubricationstandardcontrolling systemElectric supply3 phase 380V 50/60 Hz(3 phase 220 V 50/60 Hz)starting powerapprox 50KW/52KWnormal power consumptionapprox 9.5KW/10KWwarming timeapprox 25 minstemp. setting rangeroom temp. -300ºCtemp. control methodPID Close Loop Control+SSR Drivingtemp. control precision±1ºCtemp. deviation on PCB±2ºC(by Jaguar Board Test Standard)nozzle platealuminilum alloy platedata storageprocess data and status storage(80GB)abnormal alramabnormal temp. (extra-high/extra-low temp. )board dropped alarmTower light: yellow-warming, green-normal, red-abnormalcooling systemcooling methodAir Oven: Forced Air. Nitrogen Oven: Water Chiller
JAGUAR - one of the well-known lead-free electronics equipment manufacturers in China, Founded in 2009, headquartered in Shenzhen.

JAGUAR has been committed to lead-free equipments research and development, and manufacturing lead-free reflow oven, wave soldering and other lead-free electronic devices since foundation. Currently has the R8 series of high-end dual-track lead-free reflow soldering, the F8 series of lead-free reflow soldering, A8 Series of lead-free reflow and wave soldering equipments.

Main product: wave solder,reflow oven,SMT conveyor, chip mounter, LED equipment, PCB loader and unloader, stencil printer and other SMT machines.
FAQ:

 1) This is the first time I use this kind of machine, is it easy to operate?
 There is english manual or guide video that show you how to use machine.
  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
  If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?
 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)
  A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
 F.Send your order by air or by sea.

 5)Why choose us ?
 A. Gold supplier on Alibaba !
 B. Trade assurance to US$54,000 !
 C. Best price & Best shipping & Best service !
