• Model NO.：REFLOW OVEN R10
• Cooling Zone：2
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Heating Method：Hot Air Convection
• Precision：High Precision
• Heating System：Electric
• Customized：Customized
• Transport Package：Wooden Box
• Specification：CE
• Trademark：Jaguar
• Origin：China Shenzhen
• HS Code：85151900
• Production Capacity：100PCS,Month

Basic Info.

Model NO. REFLOW OVEN R10 Cooling Zone 2 Power Supply 5 Line 3 Phase 380V 50/60Hz Heating Method Hot Air Convection Precision High Precision Heating System Electric Customized Customized Transport Package Wooden Box Specification CE Trademark Jaguar Origin China Shenzhen HS Code 85151900 Production Capacity 100PCS/Month

Product Description

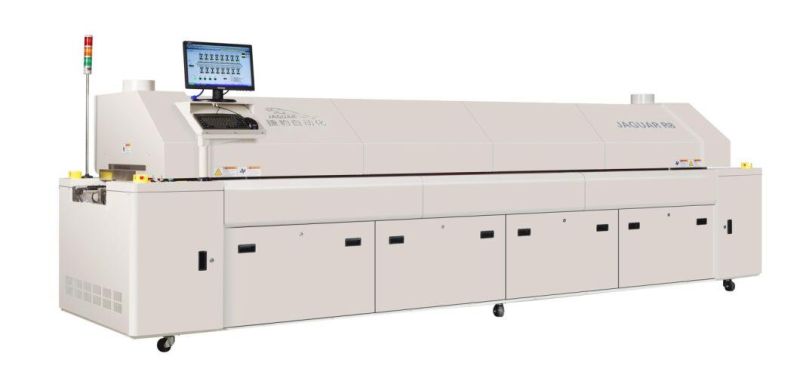

Automatic SMT LED Soldering Machine IR Reflow Oven (R10)


Specification:

Model	JAGUAR R10/R10-N
Outside dimension	6000 X 1400 X 1600mm
Standard color	Computer grey
Weight	2500kg
Number of heating zones	Up10/bottom10
Length of heating zones	3750mm
Number of cooling zones	2
Exhaust volume	10M³/min*2 exhausts
Power supply	5line, 3phase, 380V 50/60Hz
Start-up power	68KW
Power for warm up	58KW
Normal power	11KW
Heating pattern	Up & Bottom Hot air
Warming time	Approx. 20minutes
Temp. setting range	Room temp-350 degree
Control system	PLC+ Computer
Temperature control method	PID close loop control +SSR driving
Temperature control precision	± 1.0degree
Temperature deviation on PCB	± 1-2 degree
Data storage	Process data and status storage (80GB)
Abnormal alarm	Abnormal temperature (extra-high/extra-low temp.)
Board dropped alarm	Tower light: yellow warming: Green-normal: Red-abnormal
Max. width of PCB	450mm
Rail Number	1 Lane Or 2 Lane (option)
Components clearance	Top/bottom clearance of PCB is 25mm
Conveyor height	Light → right(option: R→ L)
PCB transmission agent	chain +mesh
Conveyor height	900± 20mm
Conveyor speed range	0~2000mm/min

Introduction:
1. Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4. Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5. To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6. Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec.)
7. Center support and dual rail is optional.
