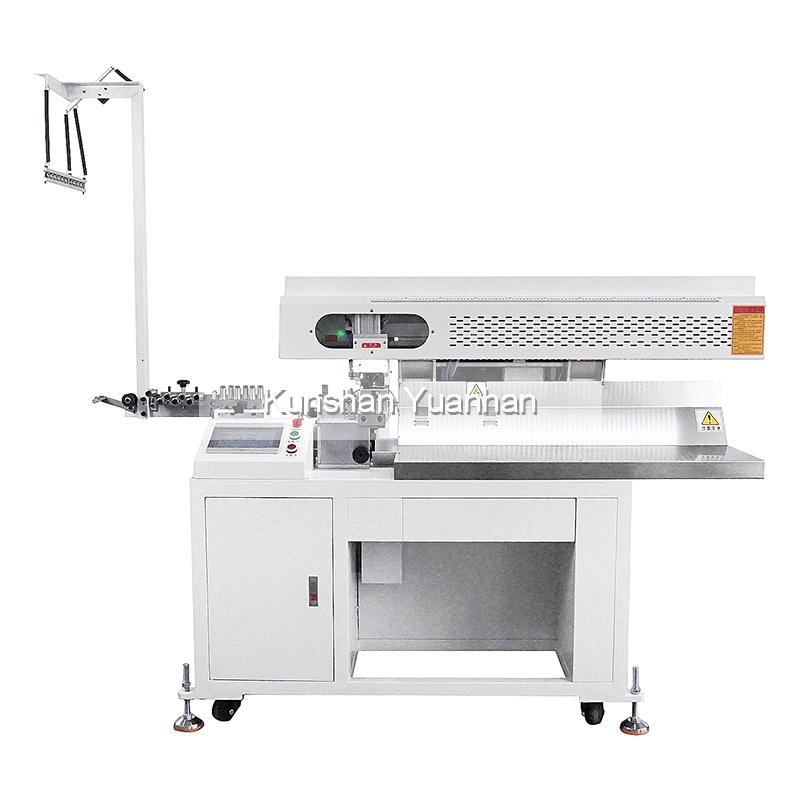

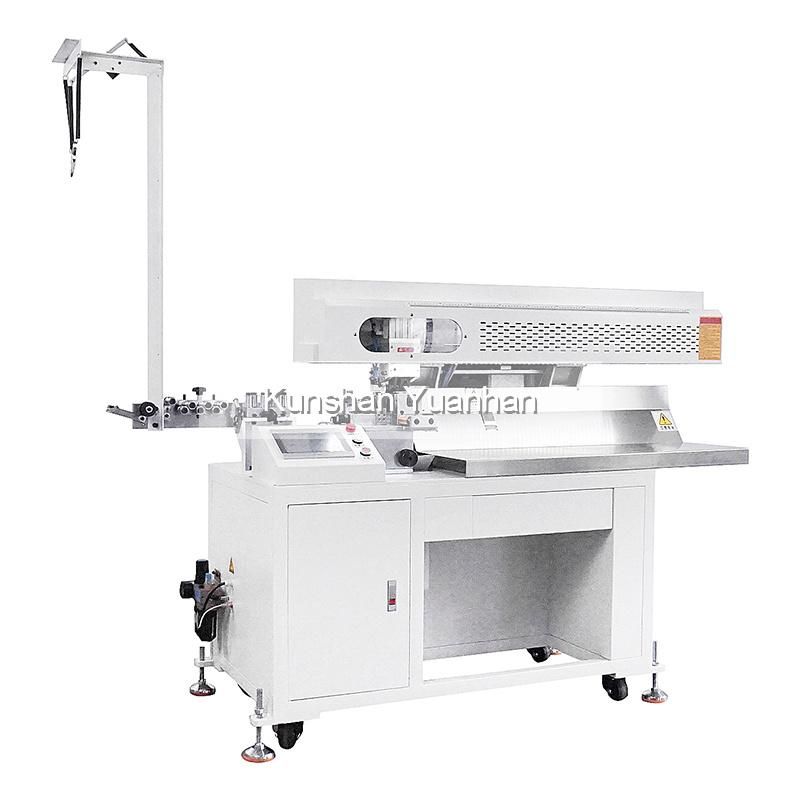

Multiple Single Conductor USB Rg Cable Cut Strip Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.

After-sales Service：All Life
Driven Type：Electric
Condition：New
Certification：RoHS, ISO, CE
Warranty：12 Months
Automatic Grade：Automatic

Base Info

Model NO.：YH-950

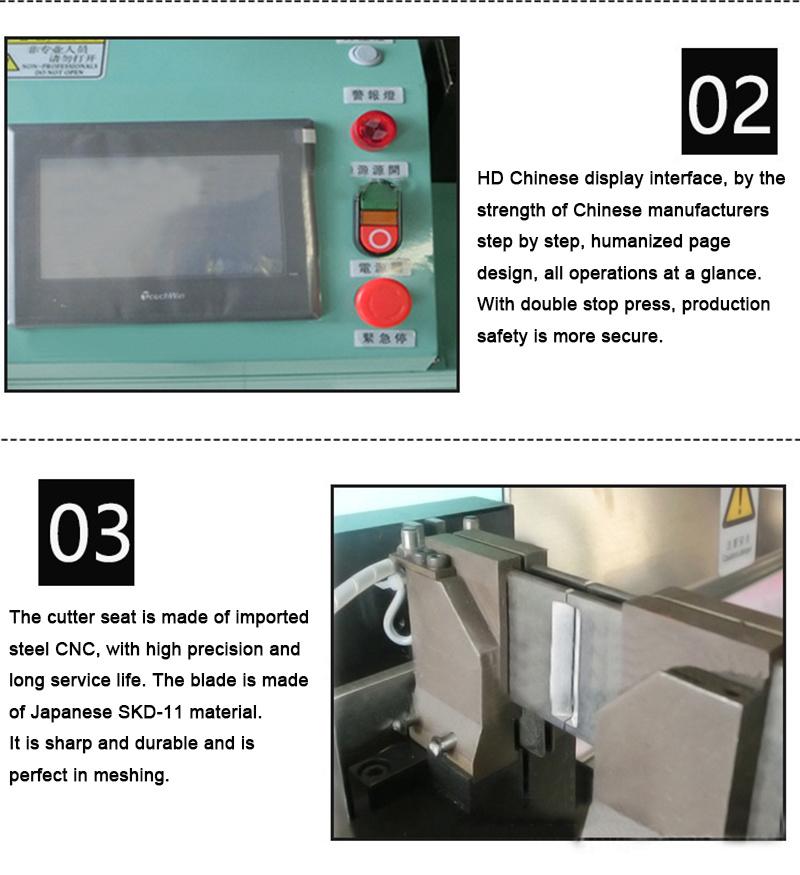

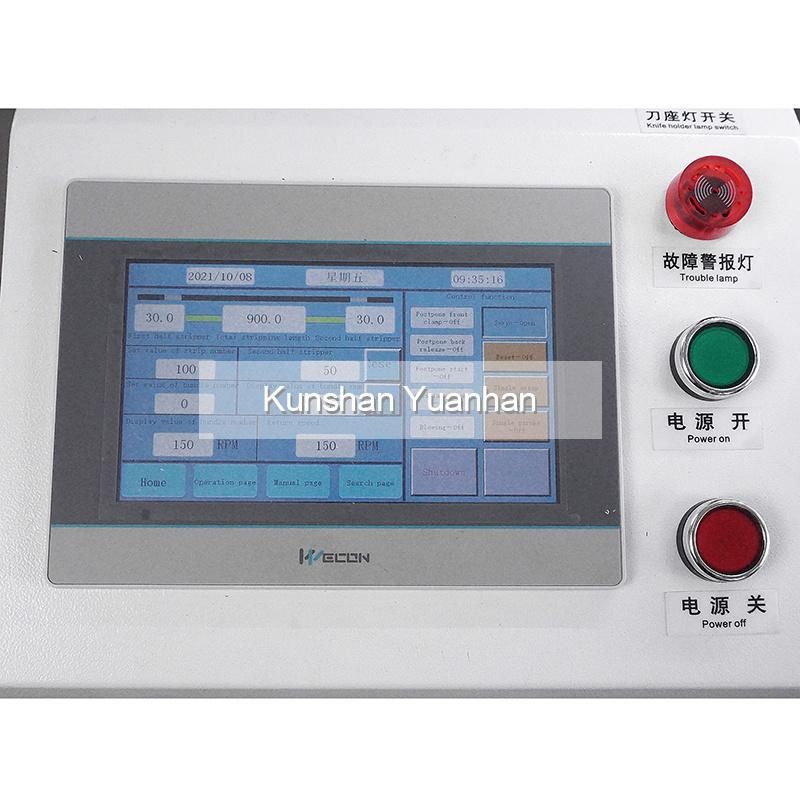

Display：7 Inch True Color Touch Screen
Function：Cutting and Stripping

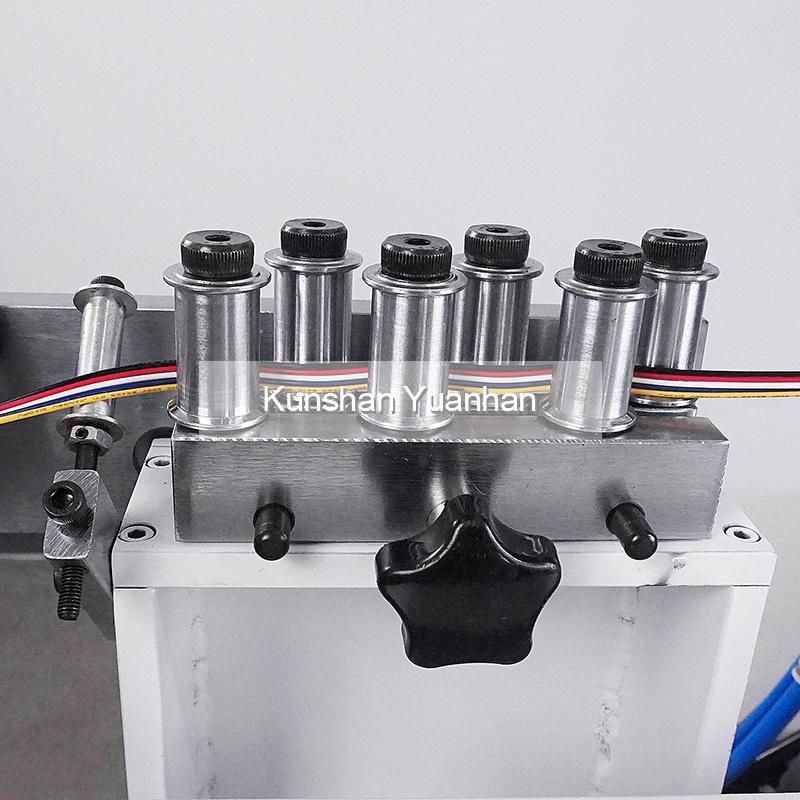

Feeding Method：12-Wheel Belt Feeder
Cutting Length：42~99999mm
Wire Size：AWG#10~#28
Core Wires：1core
Stripping Length：3~100mm
Wire Type：USB, AC, RGB, 1394, DC, PVC, etc.
Stripping Accuracy：0.01mm
Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
Capacity：2300PCS,H
Detect Function：Wire Presence Detection
Air Pressure：0.5-0.8MPa
Input Power：AC220V,50Hz
Weight：400kg
Transport Package：Double-Layer Export Carton
Specification：1700*750*1500mm
Trademark：yuanhan
Origin：China
HS Code：8479819000
Production Capacity：L=100mm, 3000-7000PCS,H

Description

AWG#10~#28 Dimension 1700*750*1500mmWeight400KG

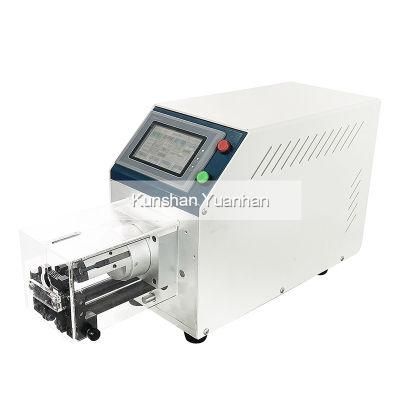

We have other sizes of wire cutting and stripping machine for your choice!

Stripping lengthFront Stripping : 1- 120mmFront stripping: 1 - 800mm (wire head)Front stripping: 1 - 800mm (wire head)Front stripping: 1-120mm (special custom peelable more than 1000mm)Front stripping:1-1000mm(head)Tail stripping: 1- 190mmTail stripping: 1 - 260mm (end of line)Tail stripping 1 - 260mm (end of line)Tail stripping: 1- 270mmTail stripping::1-300mm (Tial)Maximum diameter of the catheterΦ16Φ 25Φ30Φ7~30mmΦ15~50mmTool materialHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelProductivity (times / hour)2300PCS/hour (depending on the length and size of the line)1800pcs/h (depending on the length and size of the line)1800pcs/h (depending on the length and size of the line)100-700pcs/h (depending on the length and size of the line)100-700pcs/h (depending on the length and size of the linepower supply220V 50HZ220V 50HZ220V 50HZ220V 50HZ220V 50HZPower1.5KW1.5KW1.5KW4KW11.7KWDrive mode16-wheel drive (silent hybrid stepper motor, servo tool holder)32-wheel drive (silent hybrid stepper motor, servo tool holder)32-wheel drive (silent hybrid stepper motor, servo tool holder)48-wheel drive, full servo motorWire feed: 32 wheels, each group of independent servo drive
Knife rest: double servo and double screw Wire feeding methodBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feed, no imprint or scratch on the cableRemarksSpecial cable can be customized, sample line test is requiredSpecial cables are customizable and sample line tests are required. If the tail end is stripped, the total length of the cut line should not be less than 150mm, and the total length of the cut line is less than 150mm. The machine can be customized.Special cable can be customized, sample line test is requiredsample line test is required

Multiple Single Conductor USB Rg Cable Cut Strip Machine

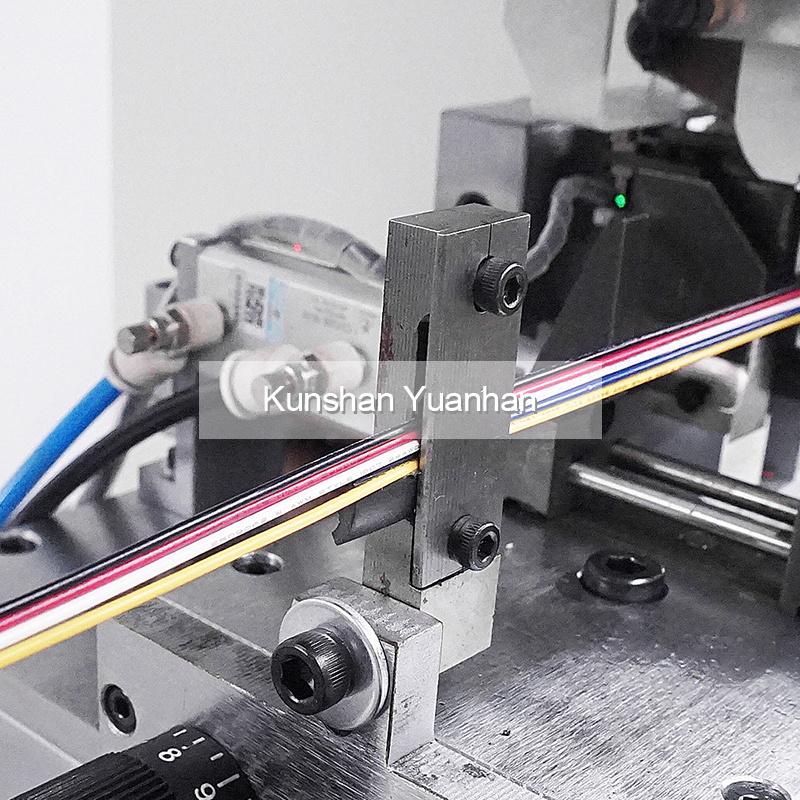

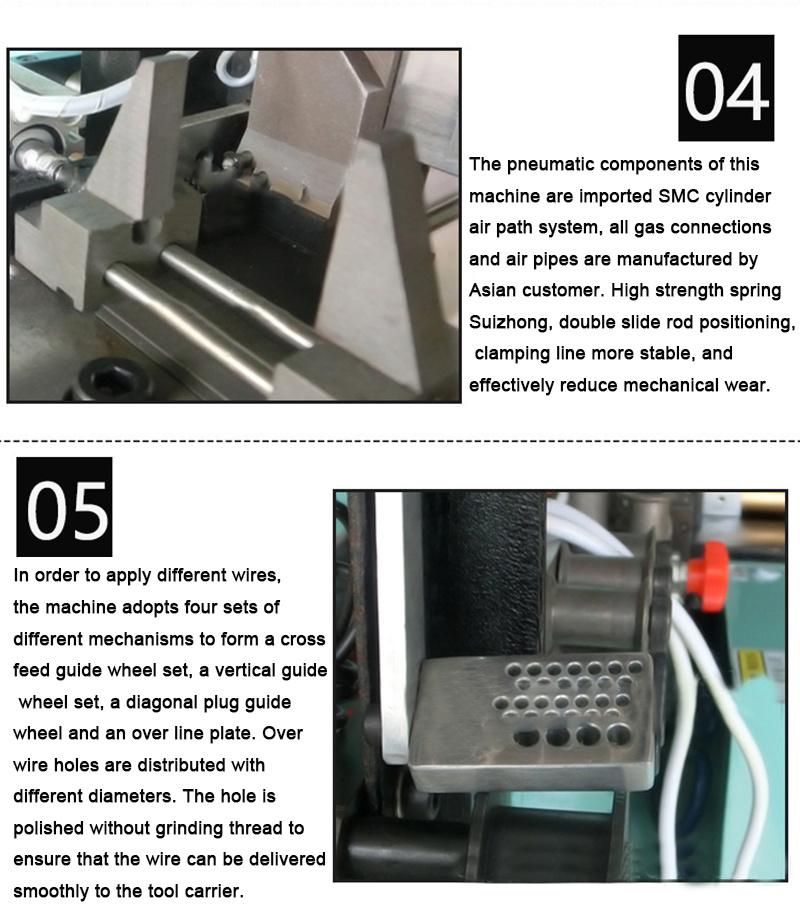

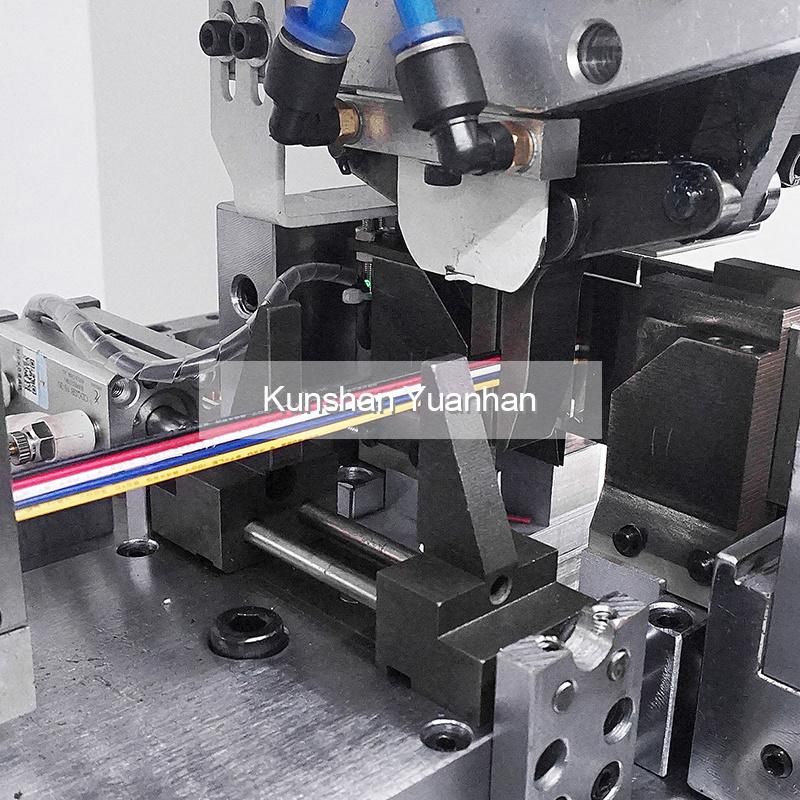

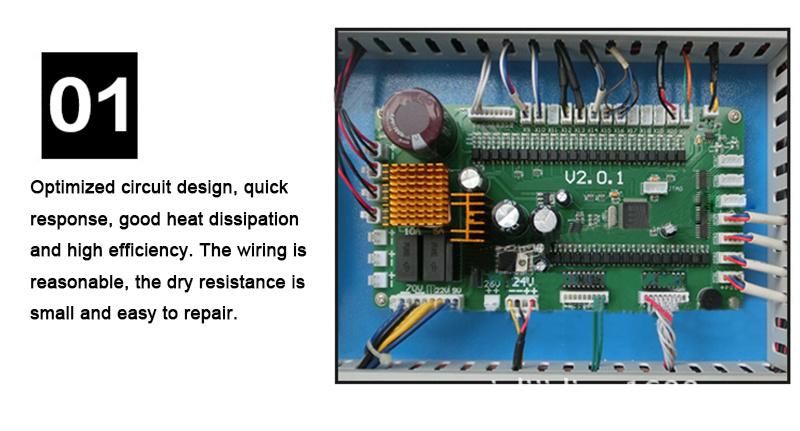

Product Pictures
